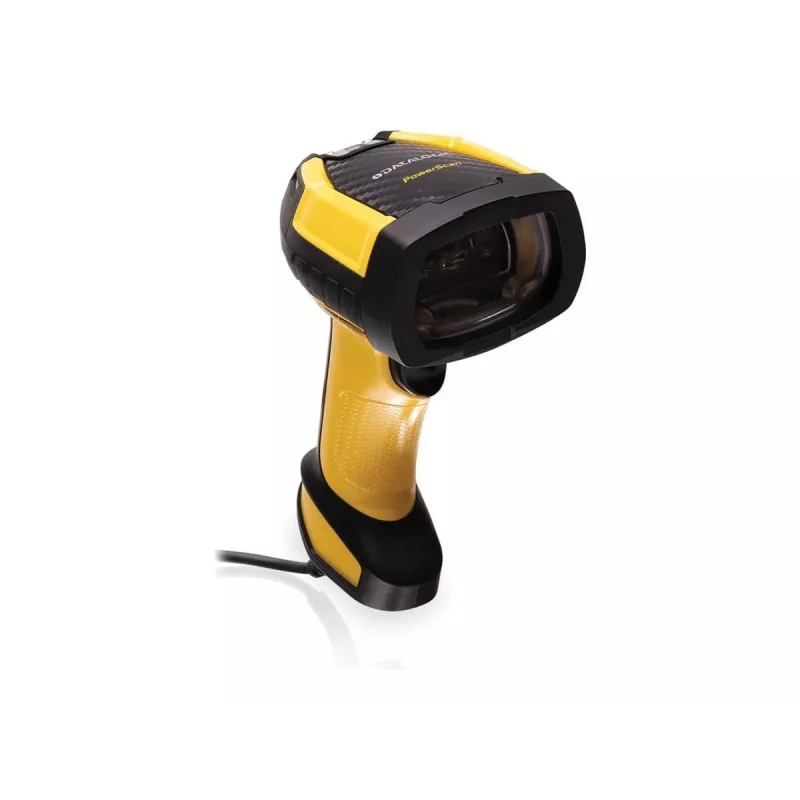

Datalogic PowerScan PD9630-AR Auto Range kit RS-232

The Datalogic PowerScan PD9630-AR is a rugged industrial 2D imager barcode scanner engineered for long-range scanning in demanding warehouse and manufacturing environments. Its auto range optics capture 1D, 2D, and postal codes from near contact to over 15 meters, while the RS-232 serial interface ensures reliable integration with legacy systems.

Advantages

Built to survive drops from 2.5 meters onto concrete and sealed to IP65, this scanner shrugs off dust and water. The Datalogic Green Spot and vibration feedback confirm reads without looking at the screen, boosting productivity. A 3 m/s motion tolerance handles fast-moving conveyors, and the 15% minimum print contrast decodes even faded labels.

Suitable for

• Warehouse picking and put-away
• Manufacturing line traceability
• Logistics and distribution centers
• Outdoor yard management

Key specifications

• Scanning technology: 2D imager with auto range (long range)
• Connectivity: Corded RS-232 serial
• Decoding capability: 1D, 2D, postal codes, Digimarc
• Durability: IP65, 2.5 m drop resistance, 20 kV ESD protection
• Feedback: Beeper, Datalogic Green Spot, vibration
• Operating temperature: -20 to 50 °C
• Power supply: 4.5 - 14 VDC
• Colour: Yellow/Black

Recommendations

For maximum uptime, pair with a Datalogic charging cradle and use the included RS-232 cable and power supply. Ideal for applications requiring long-range scanning without sacrificing ruggedness.
