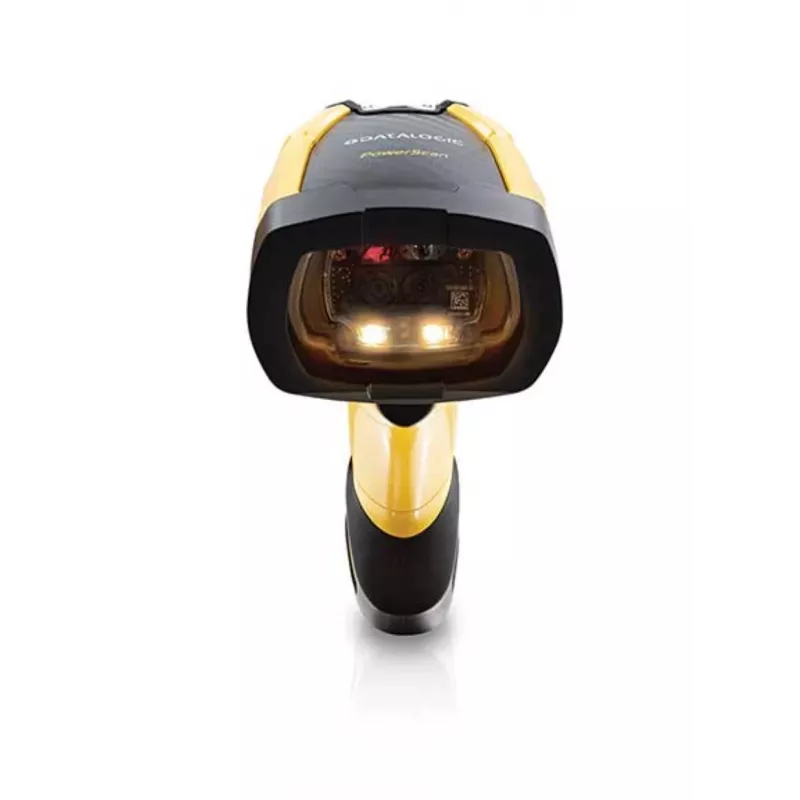

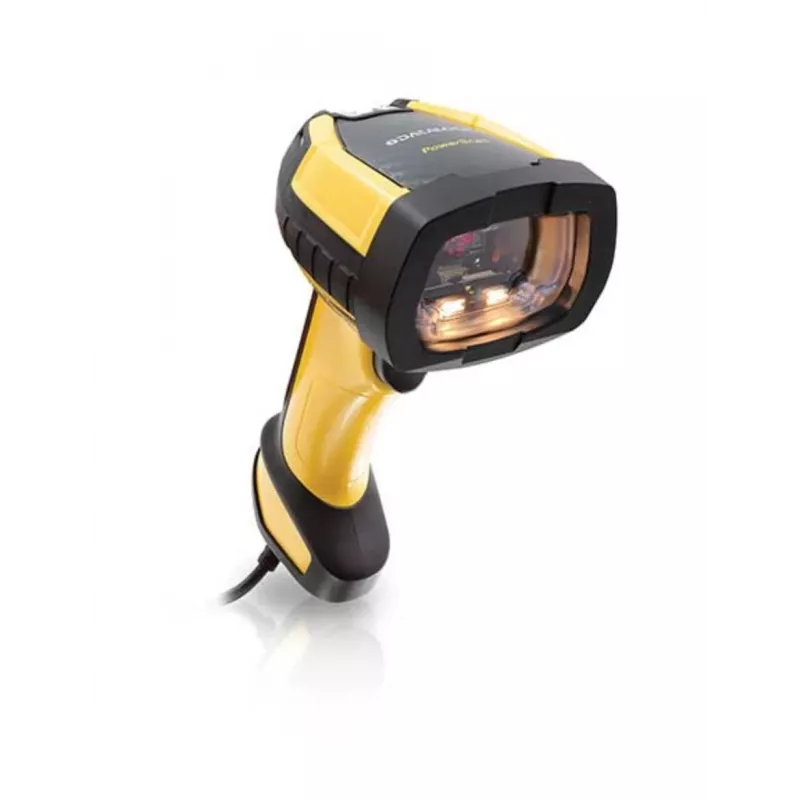

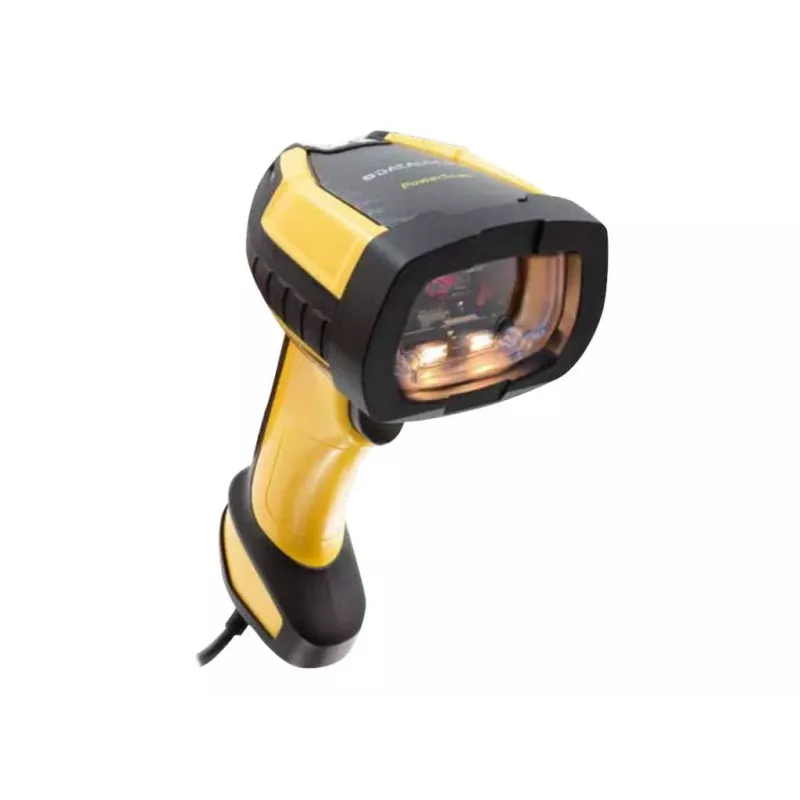

Datalogic PowerScan PD9630-DC - lector de códigos de barras

On a busy warehouse floor, a logistics operator needs to capture barcodes quickly and reliably, even when labels are damaged or poorly printed. The Datalogic PowerScan PD9630-DC industrial corded handheld scanner delivers high-performance 2D imaging with a rugged design that withstands drops, dust, and moisture. Its 1280 x 800 pixel sensor and white LED illumination ensure fast, accurate reads of 1D, 2D, and postal codes, while the Datalogic Green Spot provides instant visual confirmation. With multi-interface connectivity (USB, RS-232, Keyboard Wedge), it integrates seamlessly into existing systems, making it an ideal choice for manufacturing, logistics, and warehousing environments.

Key specifications

• Scan Technology: 2D Area Imager with 1280 x 800 resolution
• Decoding Capability: 1D, 2D, Postal, Digimarc
• Connectivity: Corded multi-interface (USB, RS-232, Keyboard Wedge)
• Durability: IP65/IP67 rating, 2.5 m drop resistance onto concrete
• Light Source: White LED illumination, 630 nm VLD aimer
• Field of View: 48° H x 30.7° V
• Operating Temperature: -20 to 50 °C
• Motion Tolerance: 30 IPS (76 cm/s)
• ESD Protection: 20 kV
• Housing: Industrial-grade plastic with rubber overmold
• Colour: Yellow/Black
• Power Source: Host powered (5VDC) or external power supply

Why choose it

The PD9630-DC is built for demanding industrial use. Its rugged construction and high ingress protection ensure reliable operation in harsh conditions, while the advanced imaging technology captures barcodes from any angle, even on curved or reflective surfaces. The Datalogic Green Spot and adjustable beeper provide clear feedback, reducing errors and increasing productivity. Multi-interface support means it can be used across various systems without additional hardware.

Ideal use cases

• Warehouse picking and inventory management
• Manufacturing line tracking and quality control
• Logistics and distribution center operations
• Postal and courier sorting applications

Good to know

The scanner supports triggered, automatic, and continuous reading modes, adapting to different workflows. It requires a minimum print contrast of 15%, making it effective on low-contrast barcodes. The package includes the scanner and a quick start guide; cables and stand are sold separately.
