Datalogic WLC4190 Base Bluetooth / cargador inalámbrico multinterfaz (WLC4190-BK-BT)

With a Bluetooth v2.0 Class 2 radio and a robust 30-meter range, the WLC4190-BK-BT keeps your Datalogic Gryphon scanners connected and charged without a single cable tethering them to the workstation. This multi-interface base station combines wireless charging, data communication, and flexible host connectivity in one compact unit.

Overview

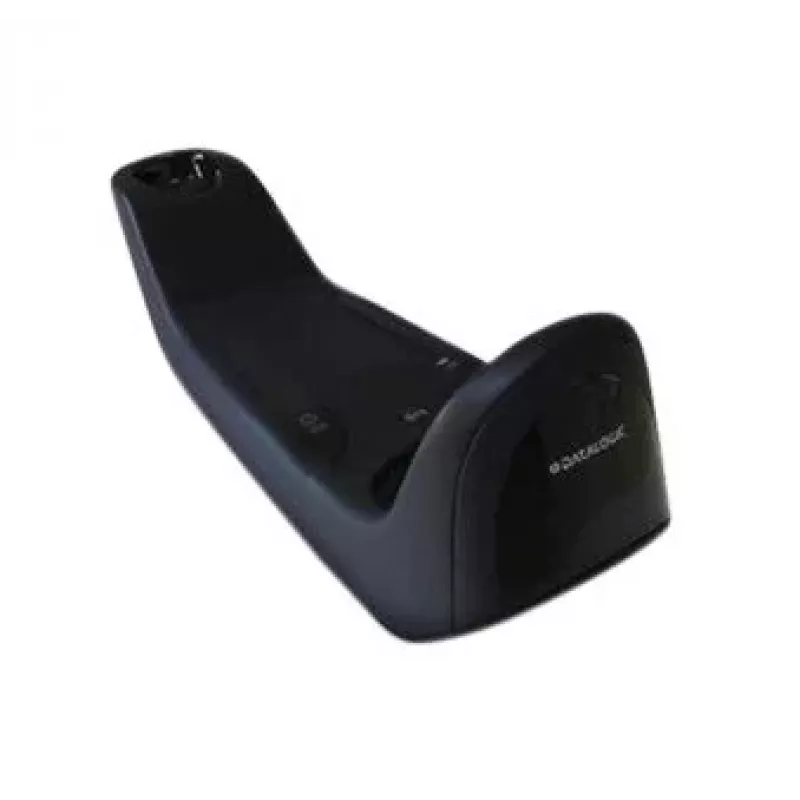

The Datalogic WLC4190-BK-BT is a Bluetooth base station and wireless charger engineered for the Gryphon 4100, 4400, and 4500 series cordless scanners. It provides inductive charging for the scanner's battery while simultaneously relaying scanned data to the host system over Bluetooth. The base station supports multiple host interfaces—USB (HID Keyboard and USB COM), RS-232, and Keyboard Wedge—making it adaptable to legacy and modern POS or inventory systems. Its dark grey/black housing is built for desktop or wall mounting, and the integrated LEDs give at-a-glance status for power, charging, and Bluetooth link.

What stands out

• Bluetooth v2.0 Class 2 wireless link with up to 30 m (98 ft) range
• Inductive wireless charging—no electrical contacts to clean or wear out
• Multi-interface: USB HID, USB COM, RS-232, Keyboard Wedge
• Compatible with Datalogic Gryphon GBT4100, GBT4400, GBT4500 scanners
• Desktop or wall-mountable (optional bracket)
• LED indicators for power, charge, and link status
• Operates from 5 VDC external power supply

Technical details

• Product type: Bluetooth base station / wireless charger
• Connectivity: Wireless (Bluetooth v2.0 Class 2)
• Communication range: Up to 30 m (98 ft) in open space
• Host interfaces: USB (HID Keyboard, USB COM), RS-232, Keyboard Wedge
• Charging: Wireless inductive charging
• Bluetooth profiles: SPP (Serial Port Profile), HID (Human Interface Device)
• Input voltage: 5 VDC
• Indicators: Power, Charge, Link Status LEDs
• Colour: Dark grey / black
• Operating temperature: 0 to 50 °C (32 to 122 °F)
• Storage temperature: -20 to 70 °C (-4 to 158 °F)
• Humidity: 5 - 95% non-condensing
• Mounting: Desktop or wall mount (optional bracket)
• Compatible devices: Datalogic Gryphon 4100, 4400, 4500 series scanners (e.g., GBT4100, GBT4400, GBT4500)

Our verdict

The WLC4190-BK-BT is the ideal companion for high-activity scanning environments. Its wireless charging eliminates downtime from dirty contacts, and the multi-interface design ensures it fits into almost any host setup. For businesses already invested in Datalogic Gryphon scanners, this base station delivers reliable performance and a clean, cable-free workstation.
