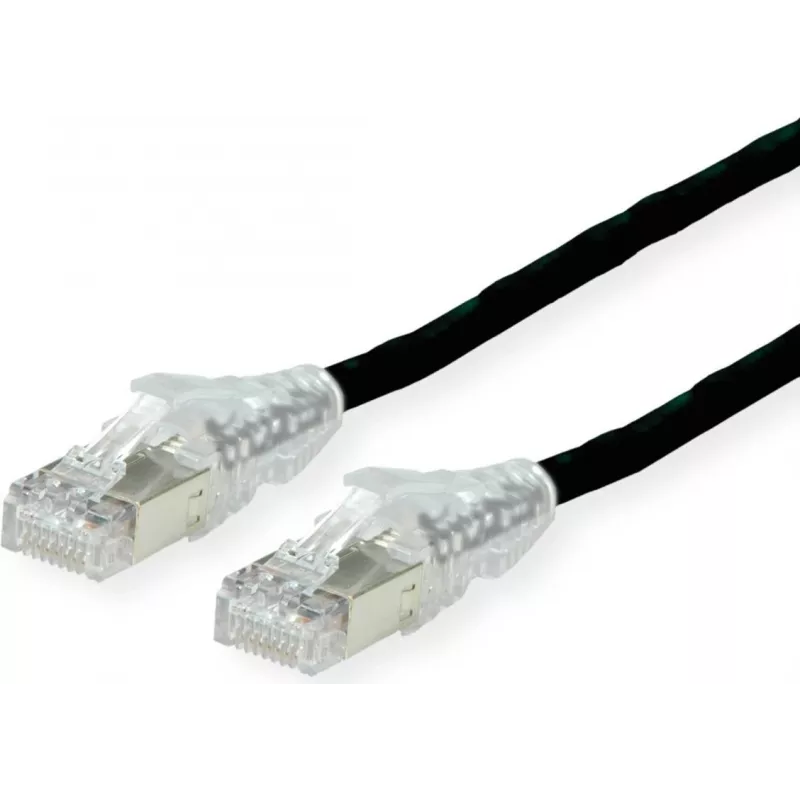

Dätwyler Cable de parcheo Cat.6 U/UTP LS0H, RJ45 AMP v2, Negro, 20 m

With a 250 MHz bandwidth and Gigabit Ethernet support, this Dätwyler Cat.6 patch cable delivers reliable, high-speed data transmission for demanding network environments. The 20-meter length provides flexibility for connecting devices across rooms or within server racks, while the stranded copper conductors ensure excellent flexibility and durability for frequent re-patching.

Overview

Engineered for professional LAN installations, this cable features U/UTP shielding with four twisted pairs, ensuring stable performance and reduced crosstalk. The LS0H (Low Smoke Zero Halogen) jacket enhances safety in case of fire, making it suitable for public buildings, offices, and data centers. Both ends are terminated with high-quality RJ45 connectors (AMP v2), providing a secure and reliable connection.

What stands out

• Cat.6 performance: supports up to 1 Gbps data transfer and 250 MHz bandwidth.
• LS0H jacket: low smoke and halogen-free for improved fire safety.
• Stranded copper conductors: flexible and ideal for patch panel connections.
• AMP v2 RJ45 connectors: robust and compatible with standard Ethernet ports.
• 20-meter length: convenient for longer runs without signal degradation.

Technical details

• Cable standard: Category 6 (Cat.6)
• Cable type: Ethernet patch cable
• Shielding: U/UTP (unshielded twisted pair)
• Conductor material: Copper (CU), stranded
• Jacket material: LS0H (Low Smoke Zero Halogen)
• Colour: Black
• Length: 20 m
• Connector type: RJ45 (AMP v2) on both ends
• Data transfer rate: up to 1 Gbps (1000BASE-T)
• Bandwidth: 250 MHz
• Number of pairs: 4
• Outer diameter: approx. 6.2 mm
• Impedance: 100 Ohm
• Flammability class: IEC 60332-1-2
• Halogen-free: Yes
• Application: data networks, LAN, PoE compatible
• Operating temperature: -20°C to +60°C
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Our verdict

A dependable, safety-conscious Cat.6 patch cable that combines solid performance with a flexible, halogen-free design—perfect for professional installations where both speed and fire safety matter.
