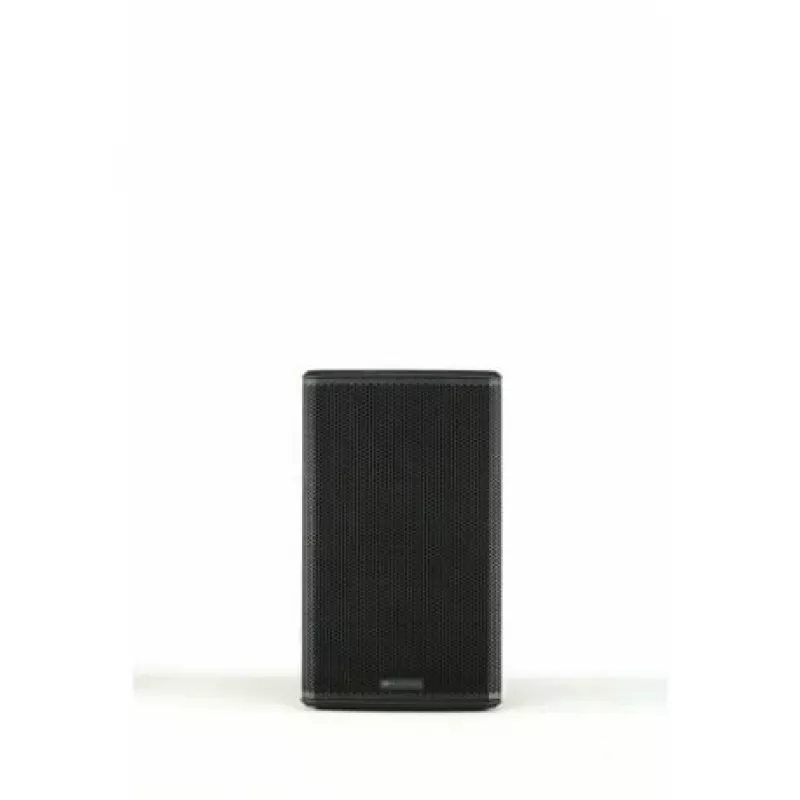

dBTechnologies LVX P12 altavoz pasivo 12 inch 300W RMS 8 ohmios

The dBTechnologies LVX P12 is a high-performance 2-way passive loudspeaker designed for professional sound reinforcement. Featuring a 12-inch woofer with a 3-inch voice coil and a 1-inch compression driver with a 1.75-inch voice coil, this speaker delivers powerful and clear audio across a frequency range of 60 Hz to 20 kHz. With a power handling of 300 W RMS (600 W peak) and a maximum SPL of 127 dB, the LVX P12 is ideal for live sound, events, and installations.

Advantages

The LVX P12 offers exceptional sound quality and reliability. Its plywood enclosure and full metal grille ensure durability, while the 90° x 70° dispersion provides even coverage. The 40° monitor angle allows for flexible positioning, and the 12x M8 rigging points enable easy suspension. The speaker also features a 36 mm pole mount for stand mounting.

Suitable for

• Live sound reinforcement for bands and DJs
• Portable PA systems for events and conferences
• Fixed installations in clubs, theaters, and houses of worship
• Monitor use on stage

Key specifications

• Speaker Type: 2-Way Passive Loudspeaker
• LF Driver: 12" (3" voice coil)
• HF Driver: 1" Compression Driver (1.75" voice coil)
• Frequency Response (-10dB): 60 - 20,000 Hz
• Nominal Impedance: 8 Ohm
• Power Handling (RMS): 300 W
• Power Handling (Peak): 600 W
• Max SPL: 127 dB
• Dispersion (H x V): 90° x 70°
• Crossover Frequency: 1800 Hz
• Input Connectors: 2x Speakon NL4 (parallel)
• Enclosure Material: Plywood
• Grille: Full Metal Grille
• Pole Mount: 36 mm
• Rigging Points: 12x M8
• Monitor Angle: 40°

Recommendations

The dBTechnologies LVX P12 is a versatile and robust passive speaker that delivers professional-grade audio performance. Whether used as a main PA or stage monitor, it provides clear, powerful sound with excellent build quality. Ideal for sound engineers and performers seeking reliable equipment.
