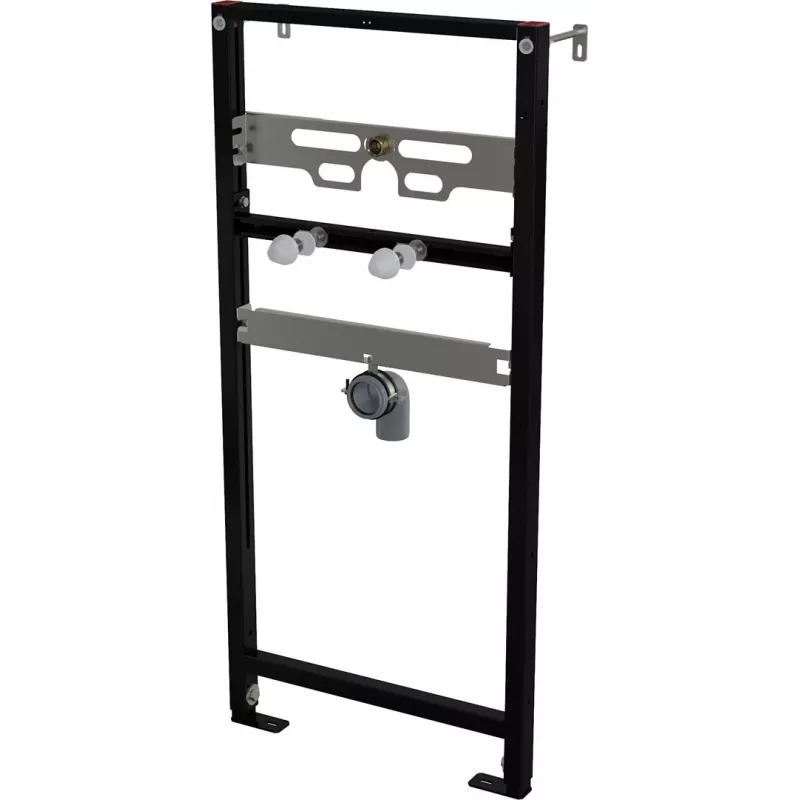

DEANTE Bastidor empotrado para urinario - Serie SYSTEM, negro, 500 mm de ancho, regulable en altura 1150-1350 mm

The DEANTE Concealed Frame for Urinal is a robust and versatile installation solution designed for wall-mounted urinals. Engineered for in-wall mounting in drywall or solid walls, this frame provides a secure and concealed installation that enhances the aesthetics of any bathroom. The frame is constructed from powder-coated steel, ensuring excellent corrosion resistance and long-lasting durability. It features a self-supporting design with floor and wall mounting points, offering exceptional stability and a load capacity of up to 400 kg.

Advantages

This concealed frame offers numerous benefits: it saves space by hiding the installation behind the wall, provides a clean and modern look, and simplifies cleaning. The adjustable height (1150-1350 mm) and depth (135-200 mm) allow for flexible positioning to match various urinal designs and wall conditions. Integrated sound-absorbing elements reduce noise transmission, making it ideal for quiet environments. The included mounting hardware, water connection elbow, drain elbow, and fixing bolts ensure a complete and hassle-free installation.

Suitable for

• Wall-mounted urinals in commercial and public restrooms
• Residential bathrooms with wall-hung urinals
• New construction and renovation projects requiring concealed plumbing
• Installations in drywall or solid walls

Key specifications

• Product Type: Concealed Urinal Installation Frame
• Frame Width: 500 mm
• Height Adjustment Range: 1150 - 1350 mm
• Depth Adjustment Range: 135 - 200 mm
• Load Capacity: Up to 400 kg
• Water Connection Size: G 1/2"
• Drain Connection Diameter: Ø50 mm
• Frame Material: Powder-coated steel
• Frame Finish: Black
• Self-Supporting: Yes
• Sound Insulation: Yes
• Corrosion Resistance: Yes
• Adjustable Feet: Yes
• System Series: SYSTEM

Recommendations

For optimal performance, ensure the frame is securely mounted to both floor and wall according to the included instructions. Verify compatibility with your chosen urinal model before installation. Professional installation is recommended to guarantee proper alignment and watertight connections.
