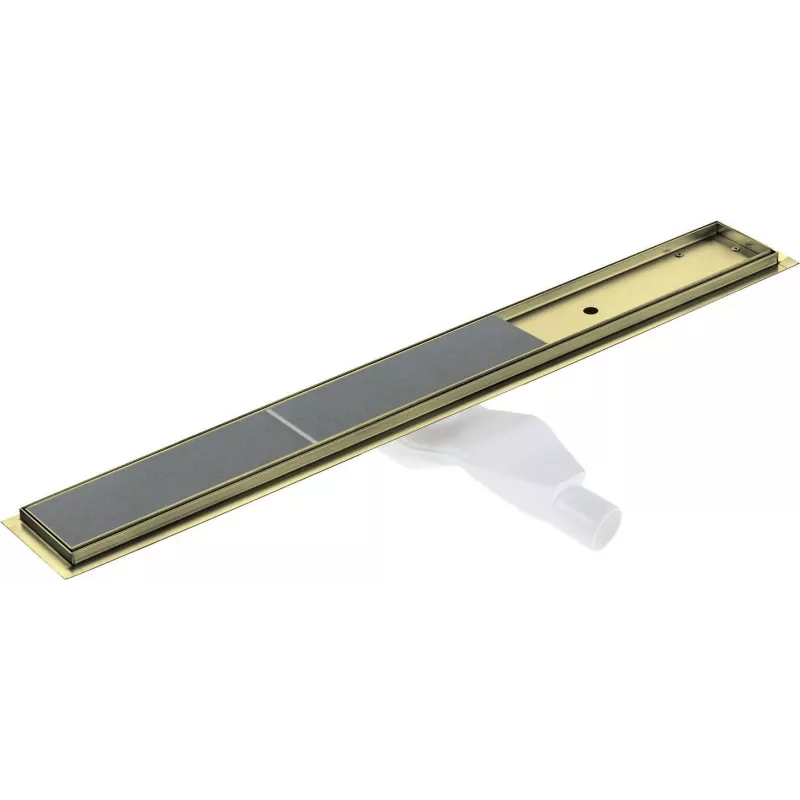

DEANTE Desagüe de suelo 70 cm - desagüe lineal de ducha reversible

The DEANTE Floor Drain 70 cm - Reversible is a high-quality linear shower drain designed for modern walk-in showers and wet rooms. Crafted from AISI 304 stainless steel with a brushed finish, it offers durability and a sleek appearance. The reversible grating allows for either a tile insert or flat stainless steel cover, blending seamlessly with your floor design.

Advantages

This floor drain features a removable siphon for easy cleaning and an integrated odor stop. Adjustable feet ensure precise leveling during installation, while the K3 load class (up to 300 kg) guarantees stability. The 50 L/min flow rate efficiently handles water drainage.

Suitable for

• Walk-in showers
• Wet rooms
• Bathrooms
• Level-access shower areas

Key specifications

• Length: 700 mm (70 cm)
• Material: AISI 304 Stainless Steel
• Grating Type: Reversible (Tile Insert / Flat Stainless Steel)
• Outlet Diameter: 50 mm
• Flow Rate: 50 L/min
• Minimum Installation Depth: 65 mm
• Water Seal: Removable Siphon
• Adjustable Feet: Yes
• Finish: Brushed Stainless Steel
• Grate Thickness: 1.5 mm
• Connection Type: Horizontal Outlet
• Load Class: K3 (up to 300 kg)
• Included Accessories: Grate removal hook, waterproofing collar

Recommendations

Ensure proper installation with a minimum depth of 65 mm. The reversible grate allows customization to match your tile pattern. Regular cleaning of the siphon maintains optimal performance.
