DEANTE Desagüe de suelo 90 cm - Desagüe lineal de ducha reversible

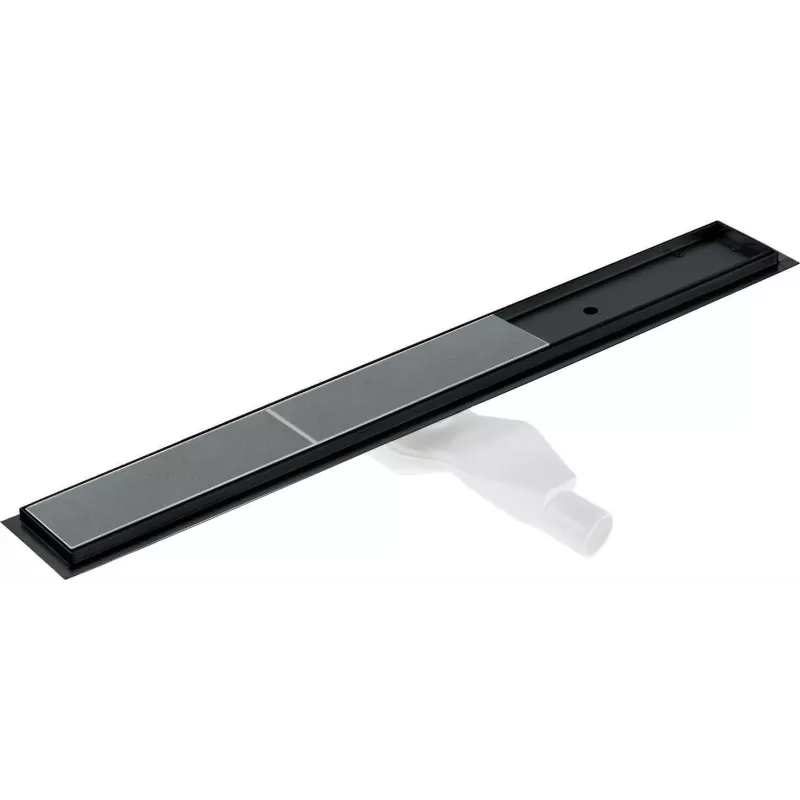

The DEANTE KOS N09D floor drain is a high-quality linear shower drain designed for modern walk-in showers and bathrooms. With a length of 90 cm and a reversible grille, it offers flexibility in installation and a sleek, brushed stainless steel finish. Made from AISI 304 stainless steel, it ensures excellent corrosion resistance and durability. The drain features a removable wet siphon with a water seal height of 30 mm, effectively preventing odors. Its adjustable feet allow for easy leveling, and the minimum installation depth is 60 mm. The horizontal outlet connection (50 mm diameter) provides a flow rate of 45 L/min, suitable for residential use. The load capacity class K3 (up to 300 kg) makes it robust for floor-mounted applications. Included accessories: sealing collar and hook for grille removal.

Advantages

Reversible grille design allows for tiling or brushed stainless steel finish. Easy cleaning access with removable grille and siphon. High corrosion resistance and load capacity. Adjustable feet for precise installation.

Suitable for

• Walk-in showers
• Bathrooms with linear drain requirements
• Floor-mounted installations

Key specifications

• Drain Type: Linear Shower Drain
• Length: 900 mm (90 cm)
• Grille Type: Reversible (Tileable / Brushed Stainless Steel)
• Material: AISI 304 Stainless Steel
• Outlet Diameter: 50 mm
• Flow Rate: 45 L/min
• Siphon Type: Removable Wet Siphon (Odor Trap)
• Minimum Installation Depth: 60 mm
• Adjustable Feet: Yes
• Water Seal Height: 30 mm
• Connection Type: Horizontal
• Load Capacity Class: K3 (up to 300 kg)
• Visible Finish (Non-Tiled): Brushed Stainless Steel
• Mounting Type: Floor-mounted
• Cleaning Access: Easy (removable grille and siphon)

Recommendations

Ensure proper installation by a qualified professional. Verify compatibility with existing plumbing before purchase.
