DEANTE Desagüe lineal de suelo 60 cm - Reversible

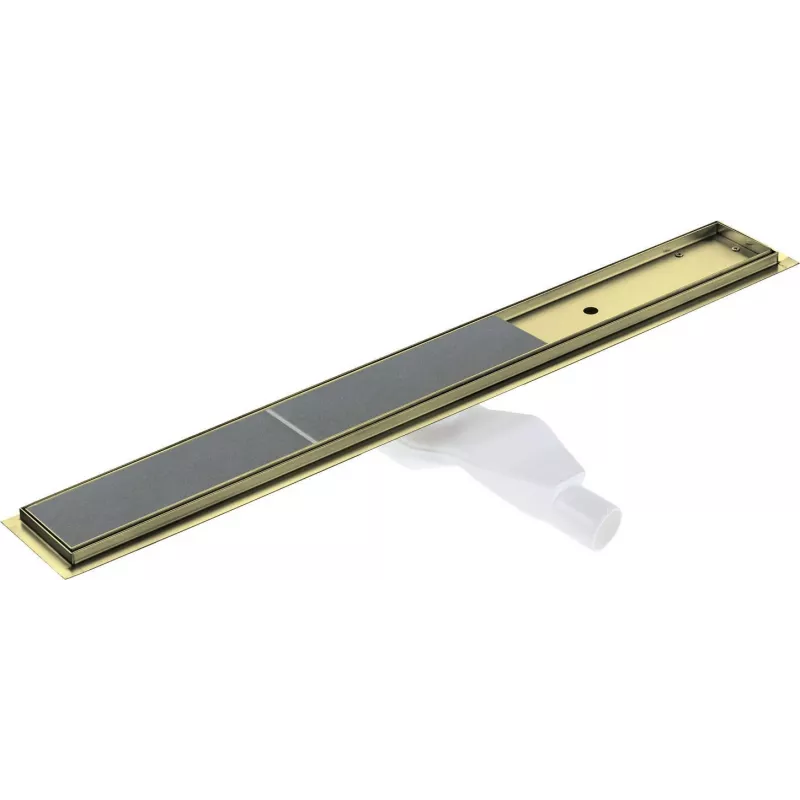

The DEANTE Linear Floor Drain 60 cm - Reversible is a high-quality stainless steel shower drain designed for modern walk-in showers and wet rooms. Its reversible grate allows for either a brushed stainless steel finish or a tile insert, seamlessly blending with your floor design. Built with AISI 304 stainless steel and a removable ABS siphon, it ensures durability, easy cleaning, and effective odor trapping.

Advantages

Reversible grate offers design flexibility; high flow rate of 56 L/min prevents water pooling; removable siphon with water seal for easy maintenance and odor control; adjustable feet for precise installation; load class K3 supports up to 300 kg.

Suitable for

• Walk-in showers
• Wet rooms
• Bathrooms with linear drainage

Key specifications

• Product Type: Linear Shower Drain
• Length: 600 mm
• Grate Type: Reversible (Stainless Steel / Tile Insert)
• Channel Material: AISI 304 Stainless Steel
• Grate Material: AISI 304 Stainless Steel
• Siphon Material: ABS
• Outlet Diameter: 50 mm
• Flow Rate: 56 L/min
• Minimum Installation Depth: 62 mm
• Water Seal Depth: 30 mm
• Adjustable Feet: Yes
• Load Class: K3 (up to 300 kg)
• Grate Finish: Brushed Stainless Steel
• Included Accessories: Waterproofing collar, Grate removal hook, Reducer 50/40 mm
• Certification: CE, EN 1253
• Warranty: 10 Years (Channel), 2 Years (Siphon)

Recommendations

Ensure proper installation by a qualified professional. Compatible with standard 50 mm drainage pipes. The tile insert grate requires tiles of matching thickness (typically up to 10 mm).
