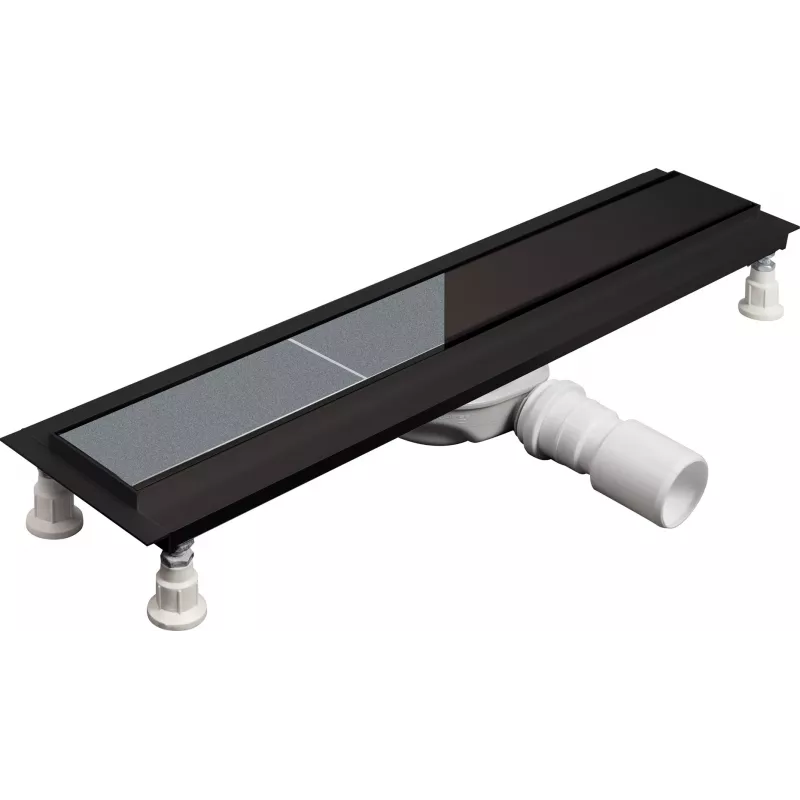

DEANTE Desagüe lineal de suelo 70 cm - Reversible

The DEANTE Linear Floor Drain 70 cm is a high-quality, reversible stainless steel drain designed for modern bathrooms and wet rooms. Its sleek, low-profile design integrates seamlessly with tiles or stands alone with a brushed stainless steel finish, providing both functionality and aesthetic appeal.

Advantages

This floor drain offers exceptional versatility with its reversible grate design, allowing you to choose between a tile-in look or a flat stainless steel cover. The low-profile, rotatable siphon ensures easy installation even in shallow subfloors, while the adjustable feet provide stability on uneven surfaces. With a flow rate of 45 L/min and a water seal of 30 mm, it effectively prevents odors and ensures efficient drainage.

Suitable for

• Walk-in showers
• Bathrooms
• Wet rooms
• Any tiled floor requiring linear drainage

Key specifications

• Length: 700 mm
• Channel width: 70 mm
• Total width (with flange): 110 mm
• Grate thickness: 1.5 mm
• Outlet diameter: 40 mm
• Minimum installation depth: 60 mm
• Flow rate: 45 L/min
• Water trap depth: 30 mm
• Material: Stainless Steel AISI 304
• Finish: Brushed
• Includes: Grate removal hook, sealing mat, instruction manual

Recommendations

Ensure proper slope of the floor towards the drain for optimal water flow. The drain is reversible; install with the tile insert facing up for a concealed look or with the stainless steel grate for a modern finish. Clean the siphon regularly to maintain performance.
