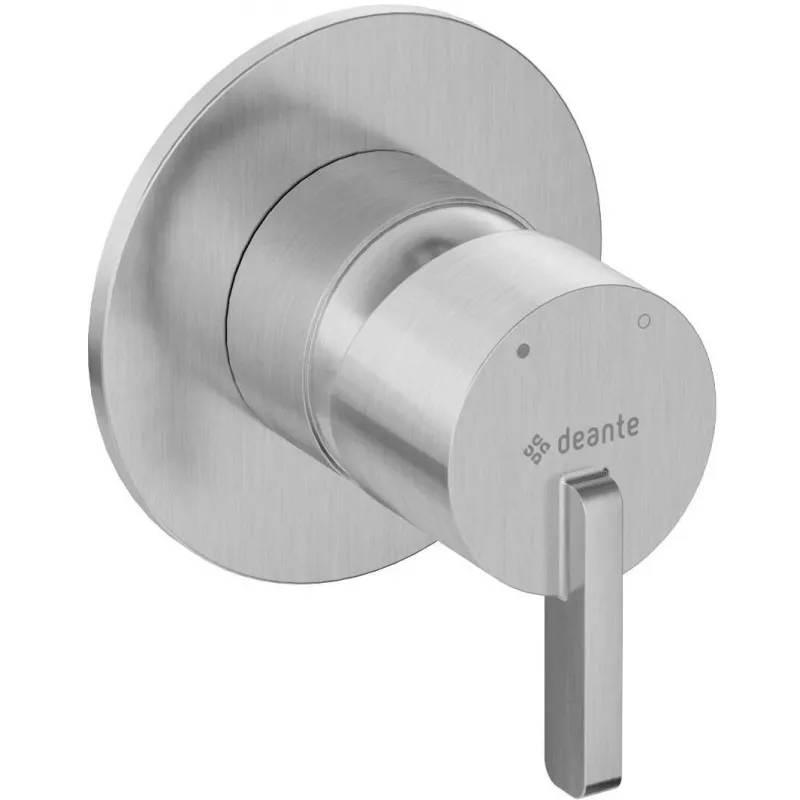

DEANTE Grifería de ducha empotrada sin conmutador de ducha, cromo, monomando, latón

The DEANTE Concealed Shower Mixer without Shower Switch is a high-quality single-lever mixer designed for concealed wall-mounted installation. Crafted from durable brass with a sleek chrome finish, this mixer offers reliable performance and a modern aesthetic for your bathroom.

Advantages

This concealed shower mixer provides a clean, minimalist look by hiding the plumbing behind the wall. The single-lever control allows for easy and precise adjustment of water temperature and flow. Equipped with a ceramic cartridge (35 mm diameter), it ensures smooth operation and long-lasting durability. The mixer operates quietly (Acoustic Group II) and delivers a flow rate of 20-25 L/min at 3 bar (Flow Class B).

Suitable for

• Shower systems without a diverter
• Wall-mounted installations
• Bathrooms with concealed plumbing

Key specifications

• Mixer Type: Concealed (Under Plaster)
• Control Type: Single-lever
• Function: Shower only (without diverter)
• Cartridge Type: Ceramic
• Cartridge Diameter: 35 mm
• Body Material: Brass
• Finish: Chrome
• Installation Type: Wall-mounted
• Connection Thread Size: G1/2"
• Acoustic Group: II (15-20 dB)
• Flow Class: B (20-25 L/min at 3 bar)
• Operating Pressure: 0.5 - 10 bar
• Maximum Water Temperature: 90°C
• Included Components: Concealed body, decorative rosette, lever handle
• Series: Standard
• Warranty (Body): 5 years
• Warranty (Cartridge): 2 years
• Mounting Depth: Adjustable
• Compliance Standard: PN-EN 817:2008

Recommendations

For optimal performance, ensure installation by a qualified professional. This mixer is designed for use with standard G1/2" connections and requires a minimum operating pressure of 0.5 bar.
