DEANTE Point Drain - Desagüe de ducha reversible de acero inoxidable 150x150mm

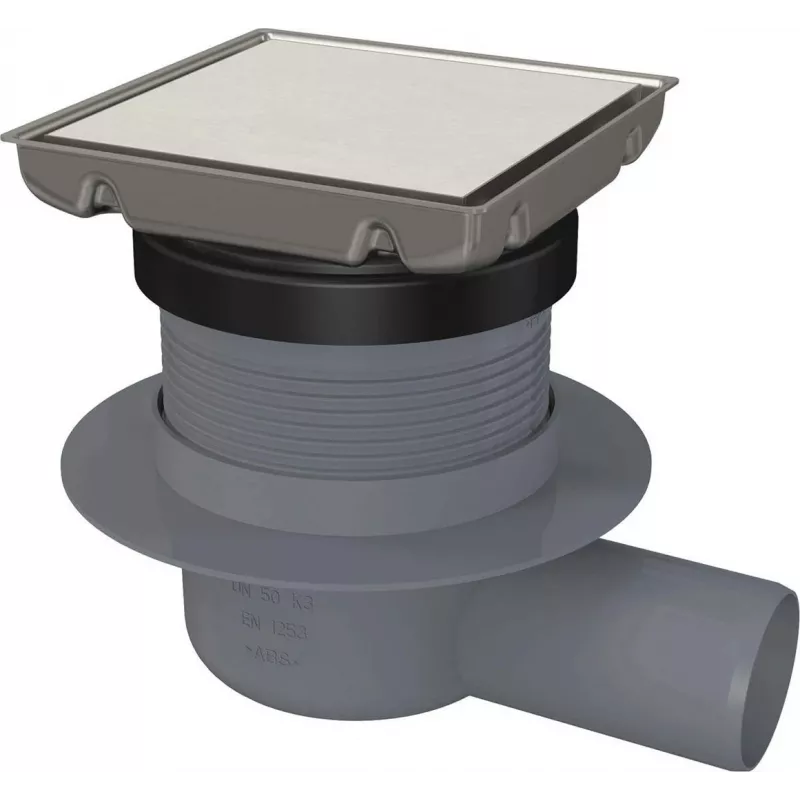

The DEANTE Point Drain - Reversible is a high-quality point drain designed for modern showers and bathrooms. Featuring a reversible stainless steel grate (AISI 304) that can be tiled over or used as a flat stainless steel finish, this drain offers flexibility to match any floor design. The durable polypropylene body and removable siphon trap ensure easy cleaning and long-lasting performance.

Advantages

Reversible grate allows for tile integration or sleek stainless steel look. High flow rate of up to 40 L/min prevents water pooling. Adjustable height with collar simplifies installation. Removable siphon trap makes cleaning quick and hygienic. Corrosion-resistant stainless steel ensures durability in wet environments.

Suitable for

• Showers
• Bathrooms
• Utility rooms
• Wet rooms

Key specifications

• Drain Type: Point Drain
• Grate Type: Reversible (Tileable / Flat Stainless Steel)
• Grate Material: Stainless Steel (AISI 304)
• Body Material: Polypropylene (PP)
• Grate Dimensions: 150 x 150 mm
• Outlet Diameter: 50 mm
• Outlet Orientation: Vertical
• Water Seal: Removable Siphon Trap
• Minimum Installation Depth: 90 mm
• Flow Rate: Up to 40 L/min
• Load Class: K3 (up to 300 kg)
• Adjustable Height: Yes (with adjustable collar)
• Corrosion Resistance: High
• Included Accessories: Sealing flange, lifting hook for grate
• Standards Compliance: EN 1253

Recommendations

For best results, ensure proper slope towards the drain during installation. Compatible with standard 50 mm drainage pipes. Ideal for both new constructions and renovations.
