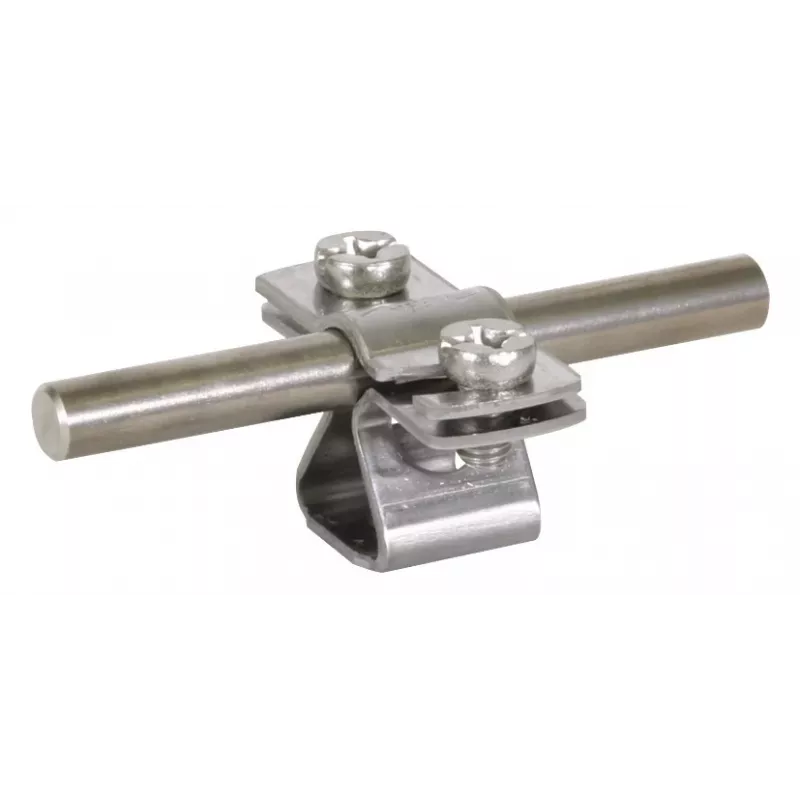

DEHN 274110 Soporte de conductor para cables redondos de 8-10 mm, acero inoxidable, rosca M8

Conductor holder for round conductors with diameter 8-10 mm, made of stainless steel (NIRO) with M8 mounting thread. Securely fastens lightning protection and earthing conductors on flat roofs, walls, concrete, and steel structures.

Advantages

High corrosion resistance and UV resistance ensure long-term reliability in outdoor installations. The clamp-type design provides a firm grip on the conductor without damaging it. Suitable for temperatures from -40 °C to +80 °C.

Suitable for

• Lightning protection systems
• Earthing systems
• Round conductors 8-10 mm
• Flat roofs, walls, concrete, steel structures

Key specifications

• Product type: Conductor holder
• Series: DEHNfix
• Material: Stainless steel (NIRO)
• Conductor diameter: 8 - 10 mm
• Mounting thread: M8
• Installation: Screw-on
• Number of conductors: 1
• Colour: Metallic silver

Recommendations

For secure and durable fixing of round conductors in lightning protection and earthing installations, especially in corrosive environments.
