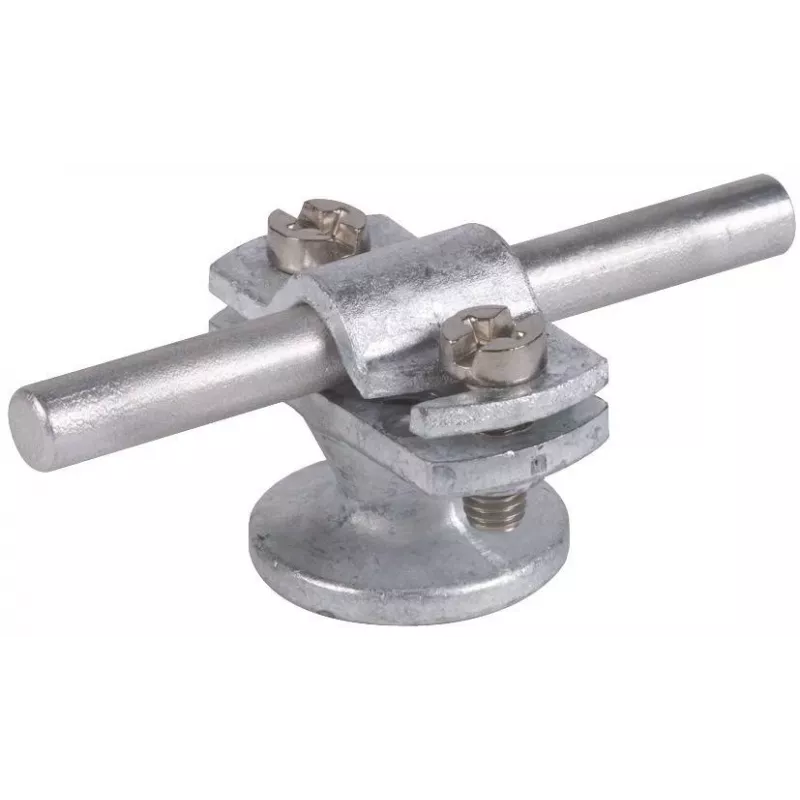

DEHN 275110 soporte de conductor con collarín de cubierta para alambres redondos 8-10 mm, gris claro

Conductor holder for external lightning protection systems, securely fastening round conductors with a diameter of 8 to 10 mm via screw mounting. The integrated cover collar provides a clean, protected installation on walls, roofs, and various surfaces.

Advantages

UV-stabilised polyamide construction withstands temperatures from -50 °C to +100 °C, ensuring long-term durability in outdoor environments. The light grey (RAL 7035) finish blends discreetly with common building facades.

Suitable for

• External lightning protection systems
• Round conductors (Rd) 8–10 mm
• Wall, roof, and surface mounting

Key specifications

• Product type: Conductor holder
• Conductor diameter: 8–10 mm
• Mounting type: Screw-on
• Mounting hole diameter: 6.5 mm
• Material: UV-stabilised polyamide (PA)
• Colour: Light grey (RAL 7035)
• Temperature range: -50 °C to +100 °C
• Base diameter: 40 mm
• Height: 25 mm
• Standard compliance: EN 62561-4

Recommendations

For a complete lightning protection installation, pair with DEHN round conductors and appropriate fastening hardware. Verify local regulations before installation.
