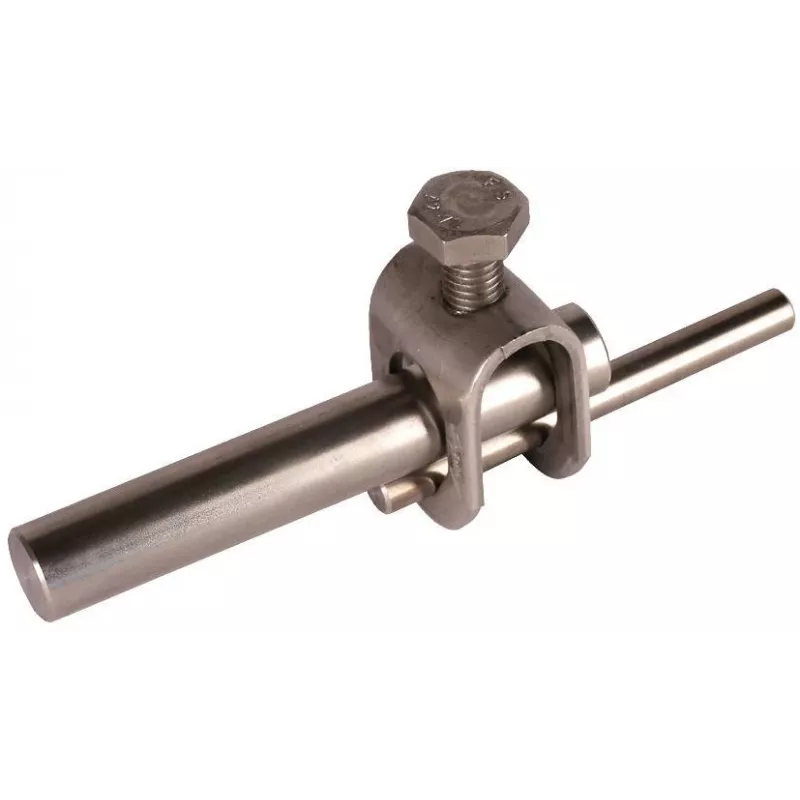

DEHN 380029 NIRO abrazadera de barra 8-10/16mm acero inoxidable

Rod clamp for connecting round conductors to rods or pipes in lightning protection and earthing systems. Made of stainless steel (NIRO) for high corrosion resistance, suitable for outdoor and indoor use.

Advantages

Stainless steel construction ensures durability and resistance to corrosion. Clamp-on mounting allows quick and secure installation without special tools. Screw clamp connection provides a reliable electrical bond.

Suitable for

• Lightning protection systems
• Earthing systems
• Potential equalization
• Connecting round conductors to rods or pipes with diameter 8-10 mm

Key specifications

• Material: Stainless steel (NIRO)
• Rod/pipe diameter: 8-10 mm
• Conductor diameter: 16 mm
• Conductor type: Round conductor (Rd)
• Mounting: Clamp-on
• Connection: Screw clamp
• Standards: EN 62561-1

Recommendations

For use in corrosive environments, select stainless steel components. Ensure proper tightening torque for reliable connection.
