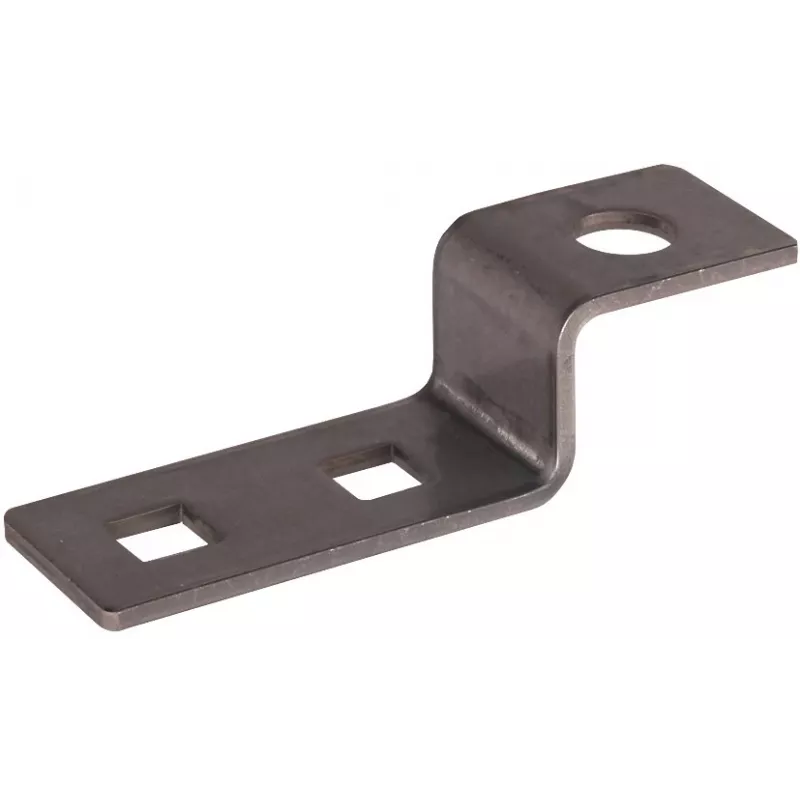

DEHN 390479 terminal en forma de Z para conductor DEHNflex

Connecting round DEHNflex conductors to flat conductors or mounting plates can be awkward without the right terminal. The DEHN 390479 Z-Form End Piece solves this by providing a secure screw connection that maintains equipotential bonding and lightning current carrying capability.

Who is it for

Electricians and lightning protection installers working with DEHNflex systems who need a reliable transition from round to flat conductors in outdoor or indoor environments.

Main features

• Z-form shape allows easy connection between round DEHNflex conductors (8–10 mm diameter) and flat conductors up to 30 x 3.5 mm.
• Made of galvanized steel (St/tZn) for high corrosion resistance.
• Two connection points with screw mounting for secure installation.
• Compatible with DEHNflex lightning protection system components.

Specifications

• Product type: End piece / terminal connector
• Shape: Z-form
• Material: Galvanized steel (St/tZn)
• Compatible round conductor diameter: 8–10 mm
• Compatible flat conductor dimensions: up to 30 x 3.5 mm
• Mounting type: Screw connection
• Number of connection points: 2
• Colour: Metallic grey

Tips

Ensure the flat conductor is clean and free of oxidation before tightening the screw to achieve the best electrical contact. Use a torque screwdriver to avoid over-tightening and damaging the conductor.
