DEHN 625015 borne de conexión para conductor redondo de 25 mm, acero galvanizado en caliente

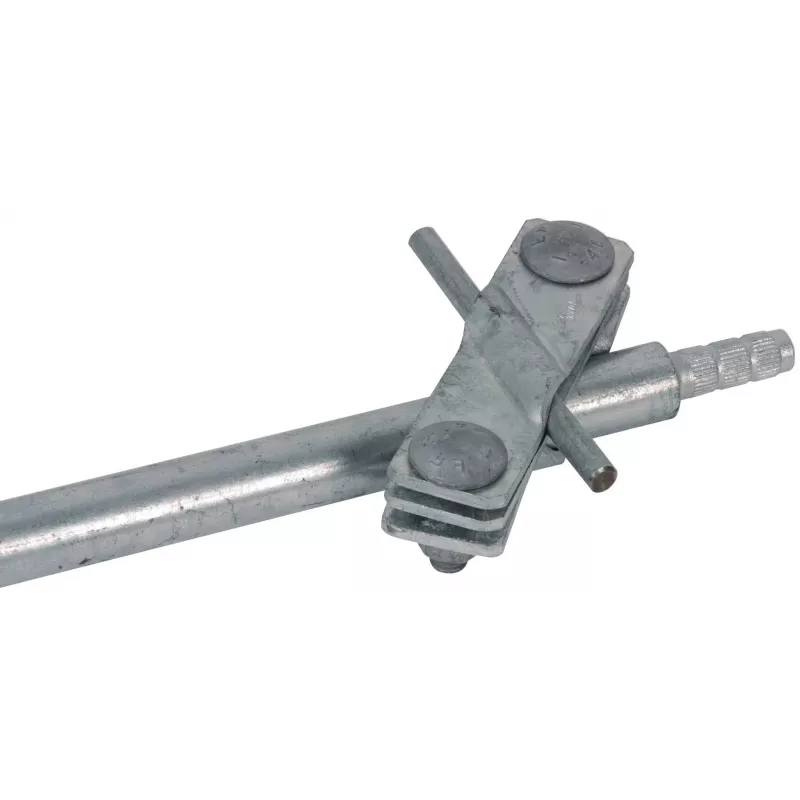

For lightning protection and earthing systems that demand a mechanically robust, corrosion-resistant connection, the DEHN 625015 universal clamp joins round conductors up to 25 mm diameter to flat surfaces or to another round conductor. Its hot-dip galvanized steel body and galvanized steel hex screw provide high corrosion resistance, making it suitable for outdoor and indoor use where long-term reliability is required.

Highlights

• Universal cross/parallel clamp for round conductors up to 25 mm
• Hot-dip galvanized steel for high corrosion resistance
• Single connection point with hex-head screw for secure tightening
• Complies with EN 50164 (VDE 0185-200)
• Suitable for outdoor and indoor environments, UV resistant

In daily use

The clamp is mounted with a screw, ensuring a firm and durable electrical connection. Its universal design simplifies installation in both cross and parallel conductor arrangements, reducing the need for multiple clamp types on site.

Full specifications

• Product type: Connection clamp
• Material: Steel
• Surface treatment: Hot-dip galvanized (tZn)
• Max. round conductor diameter: 25 mm
• Connection type: Round conductor to flat surface or round conductor
• Clamp type: Universal (cross/parallel)
• Mounting: Screw
• Screw material: Steel, galvanized
• Screw head: Hex
• Number of connection points: 1
• Corrosion resistance: High
• UV resistance: Yes
• Standard compliance: EN 50164 (VDE 0185-200)

Final note

A dependable clamp for professional lightning protection and earthing installations where corrosion resistance and ease of use are essential.
