DEHN borne de puesta a tierra L 140 mm acero inoxidable 546002

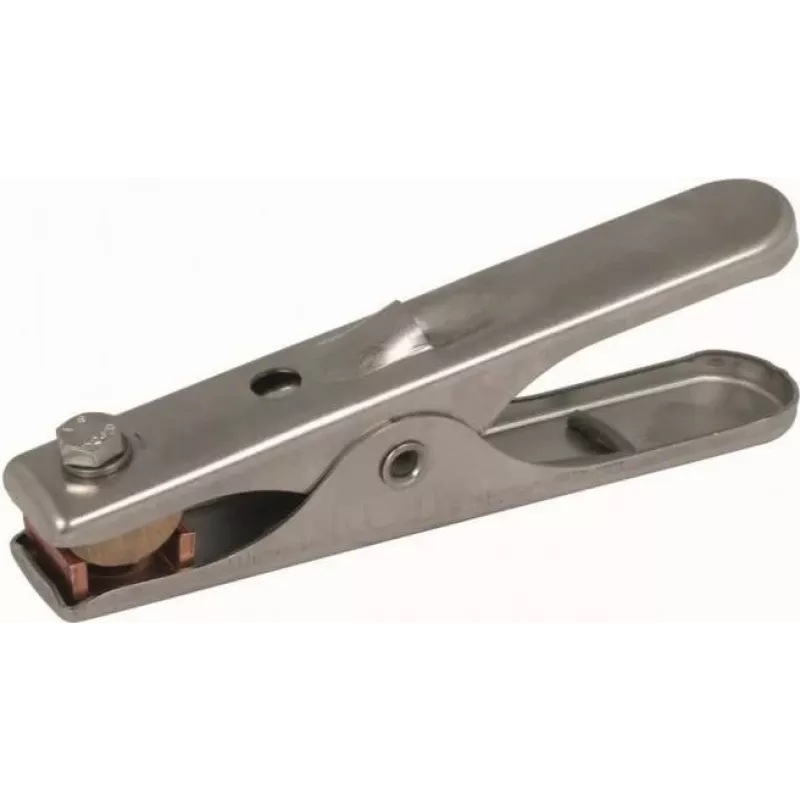

Earthing clamp for temporary earthing and short-circuiting of electrical systems, made of corrosion-resistant stainless steel with a robust 140 mm design. Its serrated jaws and M10 screw terminal ensure secure contact and reliable connection for maintenance work.

Advantages

High corrosion resistance thanks to stainless steel (Niro) construction. Serrated jaw design provides a firm grip on conductors up to 20 mm diameter. Durable and robust for industrial environments.

Suitable for

• Temporary earthing and short-circuiting in electrical installations
• Maintenance and repair work on de-energized systems
• Industrial applications requiring high mechanical strength

Key specifications

• Material: Stainless steel (Niro)
• Overall length: 140 mm
• Clamping range: round conductors up to 20 mm diameter
• Connection: M10 screw terminal
• Rated short-circuit current: 10 kA / 1 s
• Operating temperature: -25 °C to +55 °C

Recommendations

Ideal for electricians and maintenance teams needing a reliable earthing clamp for safe working conditions.
