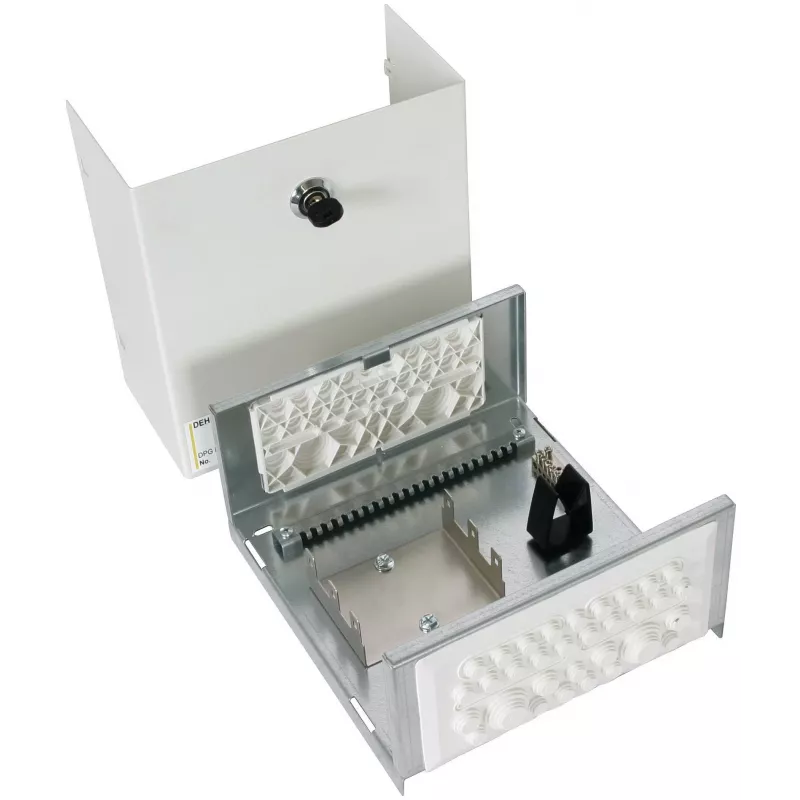

DEHN caja de equipotencialidad 906100 para 3 LSA 10/2 DPG 30 P

Equipotential bonding housing providing mechanical protection and a central grounding point for up to three LSA 10/2 connection modules in surge protection systems for information technology.

Advantages

Wall-mountable polycarbonate housing with integrated grounding terminal and pre-punched knockouts for easy cable entry. Light grey RAL 7035 finish, IP20 rated for indoor use, and UL 94 V-0 flammability rating.

Suitable for

• Surge protection installations using DEHN DPG 30 P series
• Indoor IT and telecommunications environments
• LSA-PLUS compatible connection technology

Key specifications

• Module capacity: 3 LSA 10/2 connection modules
• Mounting type: wall mounting
• Housing material: polycarbonate (PC)
• Protection degree: IP20
• Flammability rating: UL 94 V-0
• Operating temperature range: -40 °C to +80 °C
• Colour: light grey (RAL 7035)
• Cable entry: pre-punched knockouts
• Grounding terminal: integrated

Recommendations

Ideal for structured cabling and equipotential bonding in indoor IT installations where DEHN DPG 30 P surge protection modules are used.
