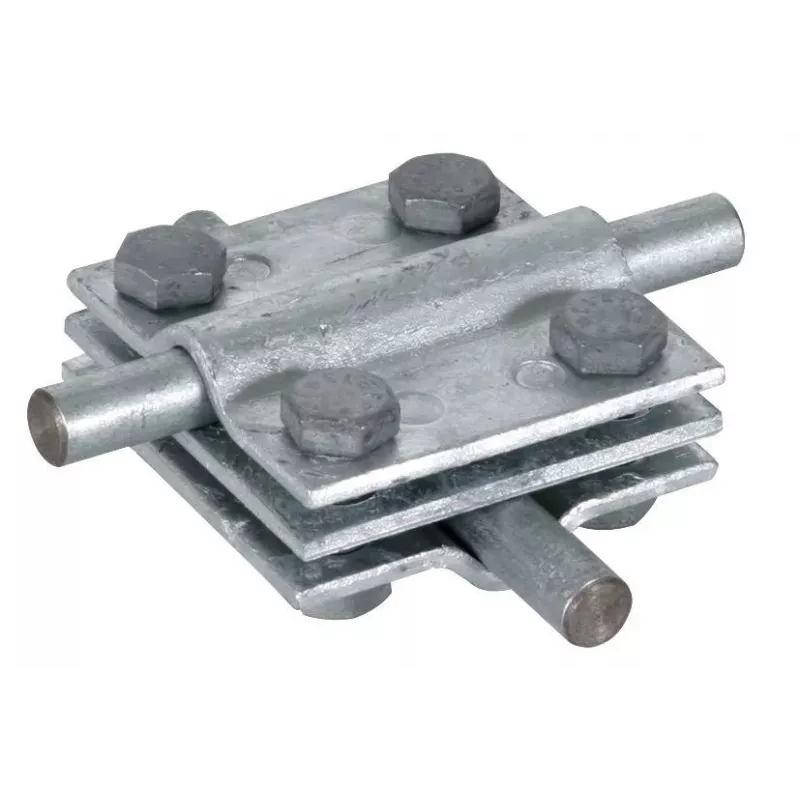

DEHN KS 8.10 FL30 conector en cruz, acero galvanizado en caliente, para conductor redondo 8-10mm y plano hasta 30mm 319201

For cross and parallel connections in lightning protection and earthing systems, the DEHN KS 8.10 FL30 ZP STTZN cross connector combines a screw clamp for 8–10 mm round conductors with a flat conductor slot up to 30 mm width. The hot-dip galvanised steel body ensures mechanical stability and corrosion resistance for outdoor and indoor use.

Overview

The DEHN KS 8.10 FL30 is a surface-mounted cross connector designed to join round and flat conductors in a single clamp. It accommodates round conductors of 8 to 10 mm diameter and flat conductors up to 30 mm width, making it suitable for typical lightning protection down conductors and earthing arrangements. The M8 screw provides a low-resistance, durable connection.

What stands out

• Hot-dip galvanised steel (STTZN) for long-term corrosion protection
• Accepts both round (8–10 mm) and flat (up to 30 mm) conductors
• Compact design for cross or parallel conductor routing
• M8 screw clamp for secure, low-resistance joint

Technical details

• Product type: Cross connector
• Material: Steel, hot-dip galvanised
• Conductor compatibility (round): 8 – 10 mm diameter
• Conductor compatibility (flat): up to 30 mm width
• Screw size: M8
• Connection method: Screw clamp
• Installation: Surface-mounted / conductor-mounted
• Application: Lightning protection and earthing systems

Our verdict

A robust, dual-conductor connector that simplifies cross and parallel joints in exposed locations. The hot-dip galvanised finish and wide conductor range make it a reliable choice for professional installations.
