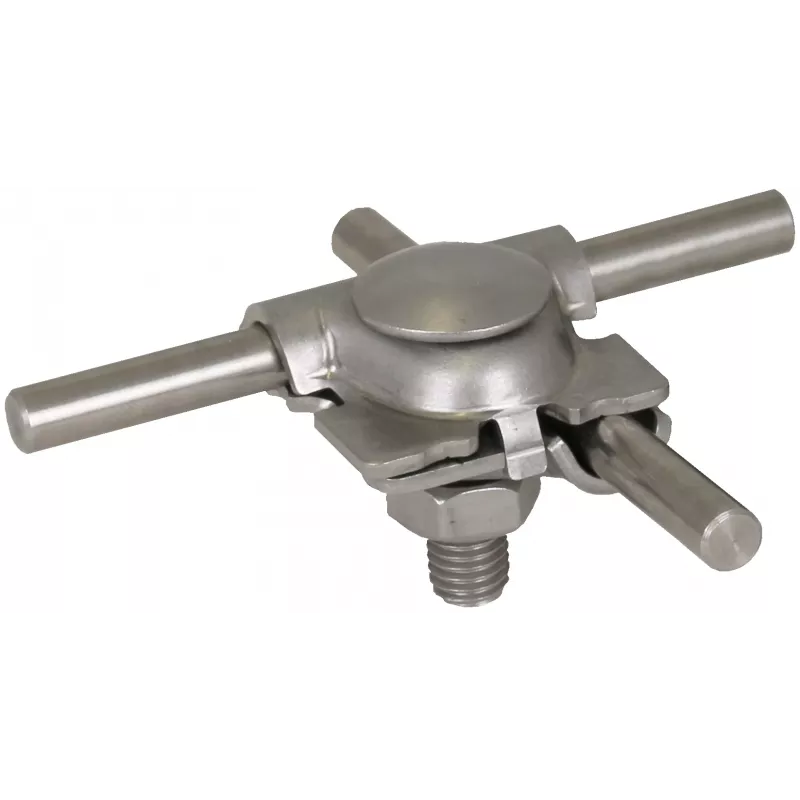

DEHN MV Abrazadera de acero inoxidable V4A para alambre redondo 8-10 mm tornillo de cabeza redonda plana (391070)

For lightning protection and earthing installations in aggressive environments, the DEHN MV clamp connects round conductors of 8 to 10 mm diameter. Its stainless steel V4A construction withstands corrosion, UV and chemicals, making it suitable for outdoor and industrial use.

Key specifications

• Material: Stainless steel V4A
• Conductor diameter: 8 - 10 mm
• Screw type: Flat round head screw
• Screw thread: M8
• Screw length: 25 mm
• Application: Lightning protection, earthing, equipotential bonding

Why choose it

The V4A stainless steel offers very high corrosion resistance, ensuring long-term reliability even in harsh conditions. The clamp is designed for a single round conductor and provides a secure screw connection.

Ideal use cases

• Lightning protection systems on buildings
• Earthing and equipotential bonding in industrial plants
• Installations in coastal or chemical environments

Good to know

The clamp complies with EN 62561-1 for lightning protection components. It is intended for use with round conductors only.
