DEHN MV-Klemme borne de conexión multiusos NIRO para conductor redondo Rd 10 / Rd 10, acero inoxidable V2A, tornillo hexagonal, 391059

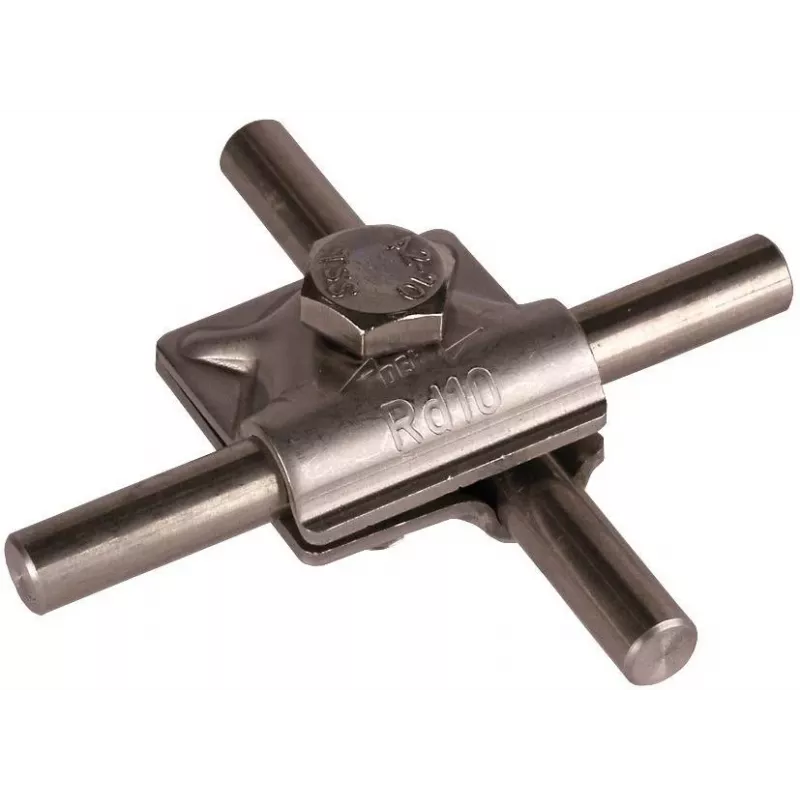

Connecting round conductors of 10 mm diameter in earthing and lightning protection systems requires a reliable, corrosion-resistant clamp that maintains a secure mechanical and electrical connection over decades. The DEHN MV-Klemme NIRO solves this with a multi-purpose clamp made entirely of stainless steel V2A, designed for direct connection of two round conductors Rd 10 / Rd 10.

Who is it for

Electricians, lightning protection installers, and maintenance engineers working on earthing systems, lightning protection networks, or industrial installations where stainless steel components are specified for durability in aggressive environments.

Main features

• Connects two round conductors with 10 mm diameter each.
• Material: stainless steel V2A (1.4301) for high corrosion resistance.
• Surface untreated, preserving the natural stainless steel finish.
• Fastening via hexagon screw for reliable tightening.
• Multi-purpose connection clamp suitable for earthing and lightning protection applications.

Specifications

• Product type: Multi-purpose connection clamp
• Conductor type: Round conductor
• Conductor diameter input 1: 10 mm
• Conductor diameter input 2: 10 mm
• Number of conductors: 2
• Material: Stainless steel
• Material grade: V2A (1.4301)
• Surface finish: Untreated
• Screw type: Hexagon screw
• Series: MV-Klemme

Tips

Ensure the conductor surfaces are clean before clamping to achieve the best electrical contact. Tighten the hexagon screw to the torque specified in the installation standards for the conductor material.
