DEHN Soporte de barra para alambre redondo de 16 mm, acero inoxidable con tornillo y taco 274260

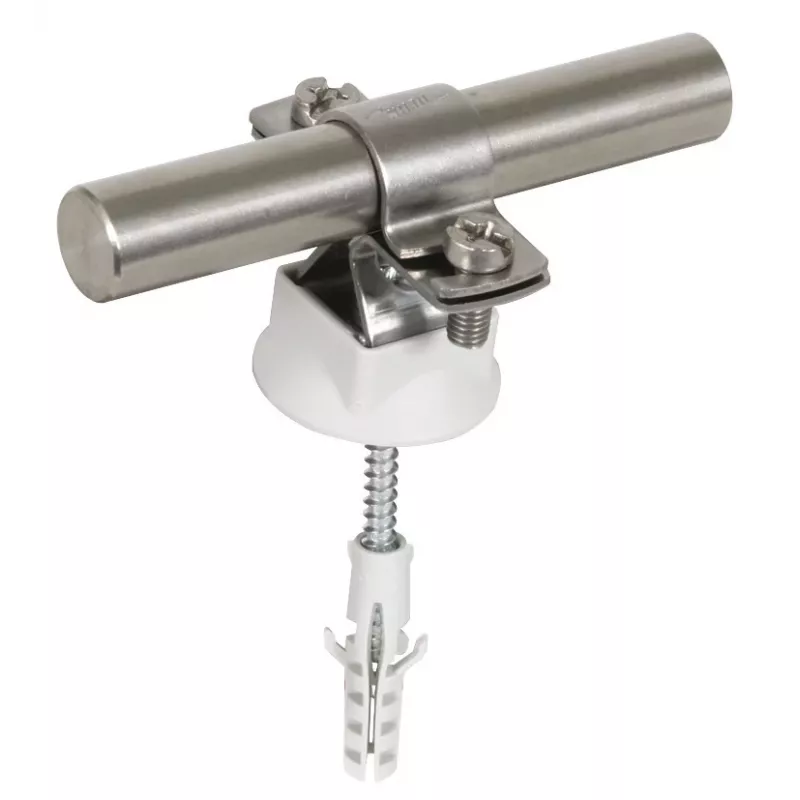

Rod holder for 16 mm round conductors, made of stainless steel for high corrosion resistance in lightning protection and earthing systems. The holder is surface-mounted and includes a hex head screw M8 x 80 mm and a plastic dowel Ø10 x 50 mm for secure wall mounting.

Advantages

Stainless steel construction provides high corrosion resistance and UV resistance, suitable for outdoor use. The included mounting hardware simplifies installation.

Suitable for

• Lightning protection systems
• Earthing systems
• Round conductors with 16 mm diameter

Key specifications

• Material: Stainless steel (NIRO), grade V2A (1.4301)
• Conductor type: Round conductor
• Conductor diameter: 16 mm
• Mounting type: Wall mount, surface-mounted
• Included screw: Hex head screw M8 x 80 mm
• Included dowel: Plastic dowel Ø10 x 50 mm
• Number of fastening points: 1
• Standard compliance: EN 62561-1

Recommendations

Ideal for securing 16 mm round conductors in lightning protection and earthing installations where corrosion resistance is required.
