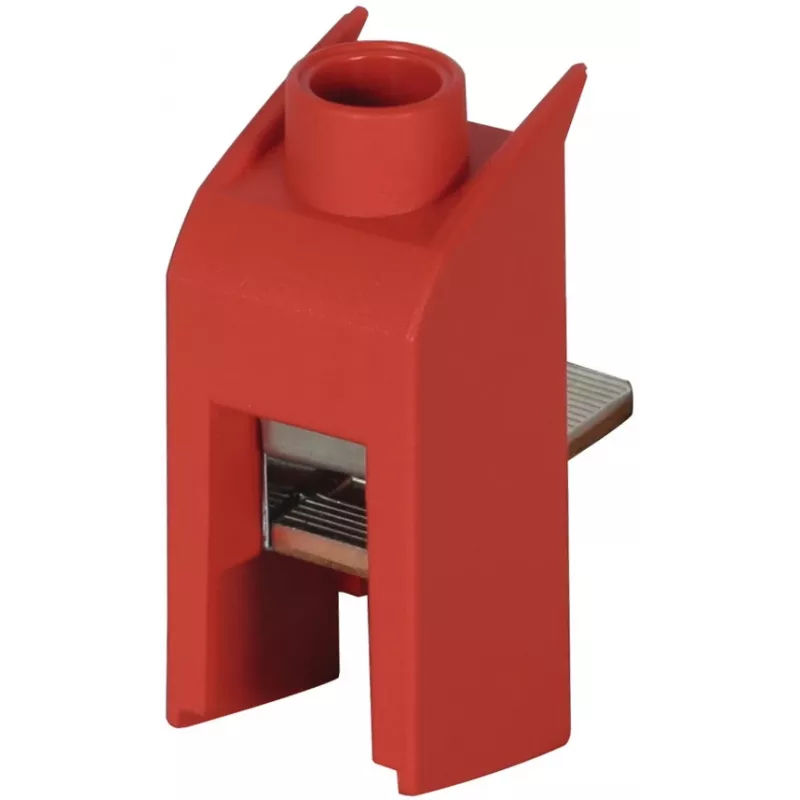

DEHN STAK 25 borne de conexión de espiga para cableado en V (952589)

In electrical installations, connecting multiple conductors to a single terminal point often requires bulky distribution blocks or unreliable splicing. The DEHN STAK 25 solves this by providing a compact, DIN-rail mountable pin connection terminal specifically designed for V-wiring configurations, allowing two conductors to be securely terminated at one pole without the need for additional accessories.

Who is it for

Electricians, panel builders, and maintenance technicians working in industrial control cabinets, power distribution systems, and building installations where space is limited but reliable multi-conductor connections are essential.

Main features

• Single-pole terminal with two connection points for V-wiring
• Accepts solid or stranded conductors from 6 to 25 mm²
• Rated for 1000 V and 101 A, suitable for high-power circuits
• Grey polyamide insulation, UL 94 V-0 flammability rated
• Mounts on standard 35 mm DIN rail
• Operating temperature range from -40 °C to +105 °C

Specifications

• Connection type: Screw (stud)
• Number of connections per pole: 2
• Wire stripping length: 16 mm
• Tightening torque: 2.5 Nm
• Pollution degree: 3
• Insulation group: I
• Approvals: VDE, UL, CSA, EAC, RoHS

Tips

Ensure conductors are stripped to exactly 16 mm and tightened to 2.5 Nm for optimal contact and to prevent loosening under vibration. For stranded wires, use ferrules to maintain a reliable connection.
