DEHNclip Borne de conexión equipotencial 372219 Horizontal acero inoxidable para conductores redondos de 8-10 mm y planos de 30x3,5 mm

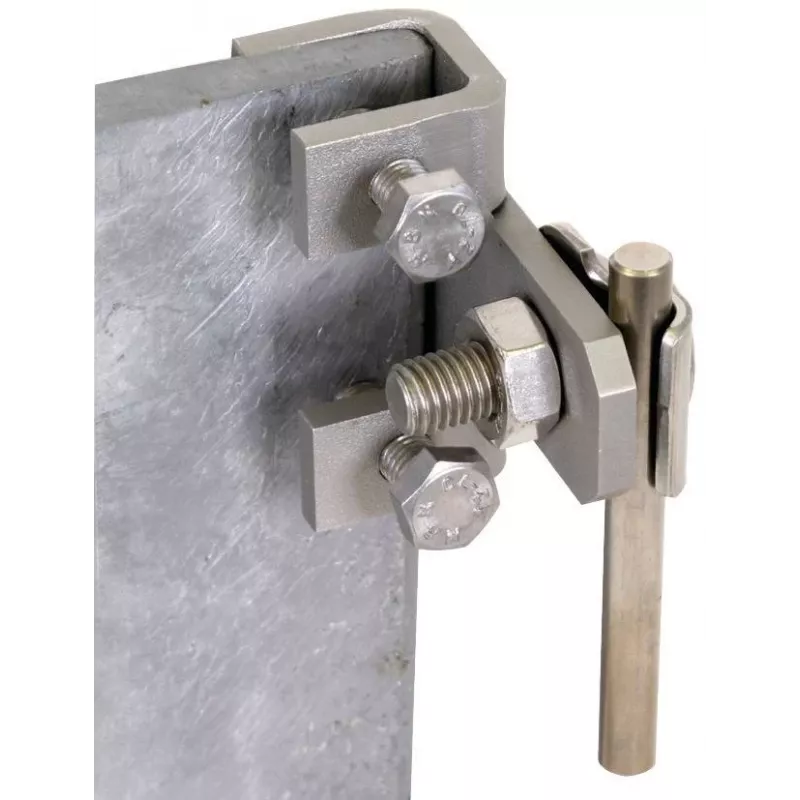

Equipotential bonding and earthing connections on structural steel or earth electrodes often suffer from corrosion or unreliable contact over time. The DEHNclip 372219 solves this by providing a low-resistance, corrosion-resistant clamp made entirely of stainless steel (NIRO). It clips onto the mounting surface and secures either round conductors from 8 to 10 mm diameter or flat conductors up to 30 x 3.5 mm with an M8 screw connection. The horizontal orientation suits installations where the conductor runs parallel to the mounting plane.

Who is it for

Electricians and lightning protection installers who need a durable, maintenance-free bonding clamp for main equipotential bonding bars, earth electrodes, or structural steel in outdoor or harsh environments.

Main features

• Stainless steel (NIRO) construction for high corrosion resistance and UV stability.
• Accepts round conductors Ø 8–10 mm or flat conductors 30 x 3.5 mm.
• M8 screw connection ensures a secure, low-resistance bond.
• Clip-on installation method speeds up mounting without special tools.
• Horizontal mounting orientation for parallel conductor routing.

Specifications

• Material: Stainless Steel (NIRO)
• Mounting orientation: Horizontal
• Conductor type (round): Ø 8 - 10 mm
• Conductor type (flat): 30 x 3.5 mm
• Connection type: Screw connection (M8)
• Application: Equipotential bonding, earthing, lightning protection
• Corrosion resistance: High
• Installation method: Clip-on
• Standard compliance: IEC 62561-1, VDE 0185-305-3 (EN 62305-3)
• Suitable for: Main equipotential bonding bars, earth electrodes, structural steel
• Temperature range: -40°C to +80°C
• Resistance: Low-resistance connection
• UV resistance: Yes
• Number of conductors: 1 (main connection)

Tips

For outdoor use, ensure the contact surfaces are clean before tightening the M8 screw to achieve the specified low-resistance connection. The stainless steel material requires no additional anti-corrosion coating.
