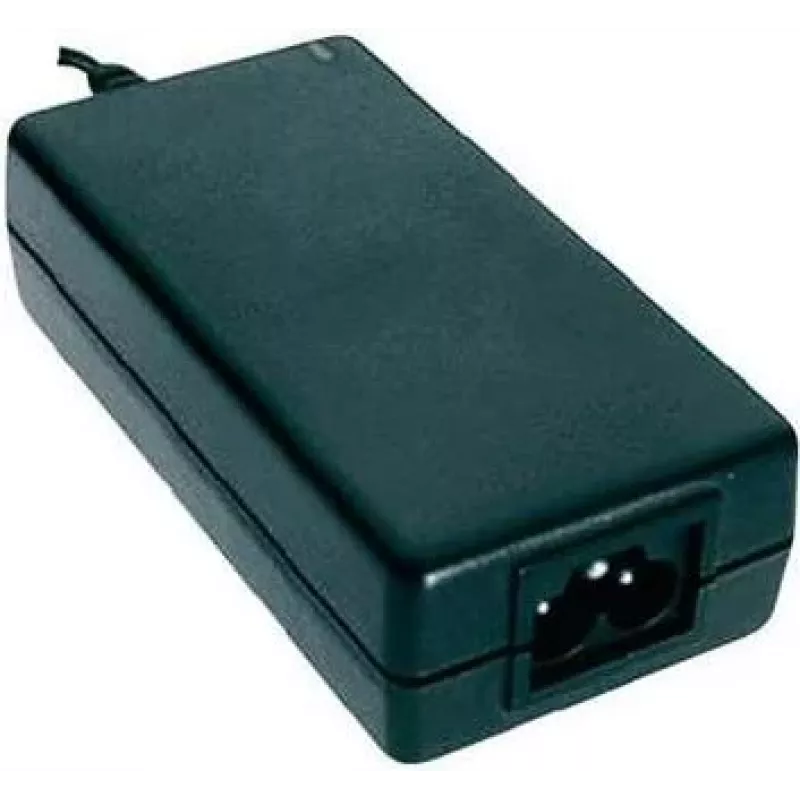

DEHNER ELEKTRONIK Fuente de alimentación de sobremesa STD-24050 tensión fija 24 V/DC 5 A 120 W

Desktop power supply unit delivering fixed 24 V DC output with 5 A current and 120 W power. Ideal for powering industrial and laboratory equipment requiring stable DC voltage.

Advantages

Switched-mode design for high efficiency and compact size. Wide input voltage range 90-264 V AC allows use worldwide. Built-in protection against overload, short circuit, and overvoltage ensures reliable operation.

Suitable for

• Industrial automation systems
• Laboratory test equipment
• LED lighting applications
• Telecommunication devices

Key specifications

• Output voltage: 24 V DC
• Output current: 5 A
• Output power: 120 W
• Input voltage: 90-264 V AC
• Input frequency: 47-63 Hz
• Efficiency standard: DOE Level VI
• Output connector: DC hollow plug 5.5 x 2.1 mm, center positive
• Output cable length: 1.5 m
• Operating temperature: 0-40 °C

Recommendations

Verify the DC plug dimensions and polarity match your device before connecting. Ensure adequate ventilation around the unit during operation.
