DELL 407-BBOO módulo transceptor de red SFP 1310 nm

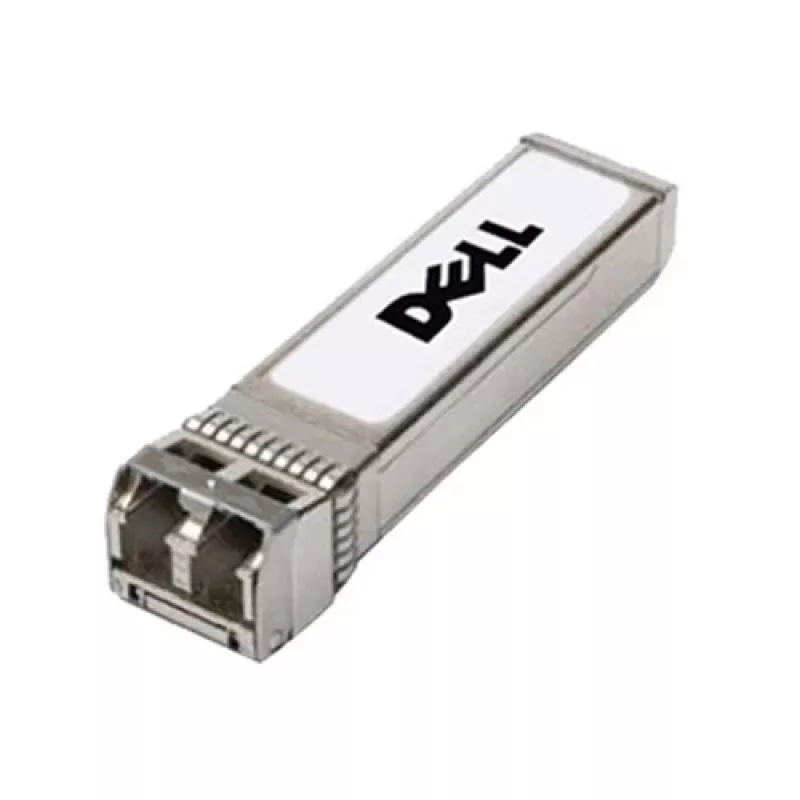

The Dell SFP transceiver module 407-BBOO provides fiber connectivity for extending network reach. This hot-pluggable SFP (Small Form Factor Pluggable) transceiver uses a Duplex LC connector and supports 1000BASE-Gigabit Ethernet links up to 10 km over single-mode fiber. It operates at a wavelength of 1310 nm and includes an enhanced digital diagnostic monitoring (DDM) interface for real-time access to operating parameters.

Advantages

The module is hot-pluggable for easy installation and replacement without powering down equipment. Its Duplex LC connector and SFP form factor ensure compatibility with a wide range of switches and routers. The built-in enhanced DDM provides monitoring of device temperature, laser bias current, transmitted and received optical power, and supply voltage, enabling proactive network maintenance.

Suitable for

• Long-range Gigabit Ethernet links (up to 10 km)
• Single-mode fiber backbone connections
• Data centers, campus networks, and enterprise aggregation links

Key specifications

• Brand: Dell
• Model / MPN: 407-BBOO
• Form factor: SFP (Small Form Factor Pluggable)
• Connector: Duplex LC
• Protocol: 1000BASE (Gigabit Ethernet)
• Wavelength: 1310 nm
• Maximum distance: up to 10,000 m (10 km)
• Diagnostic: Enhanced digital diagnostic monitoring (DDM)
• EAN: 5397063838196

How to use

Insert the SFP transceiver into a compatible SFP slot on a switch or router until it clicks into place, then connect the single-mode Duplex LC fiber cable to the module. The module is hot-pluggable, so it can be installed or removed while equipment is powered on. Verify link status on the networking device and monitor diagnostic parameters via the device management interface or supported monitoring tools.

Recommendations

Use single-mode fiber certified for 1310 nm transmission and ensure proper fiber polarity when connecting Duplex LC cables. For reliable operation, verify compatibility with your network equipment and monitor the DDM parameters to detect signal degradation or hardware issues early.
