DELL WD15 180W USB 3.2 Gen 1 (3.1 Gen 1) Type-C cableado negro

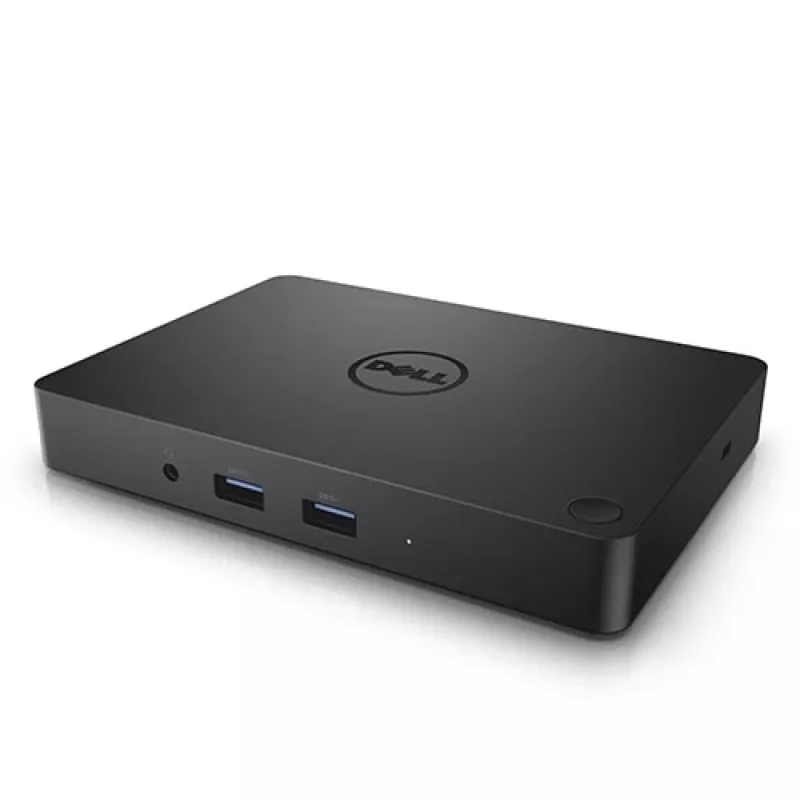

The Dell Docking Station WD15 (180W) provides single-cable connectivity via a USB Type-C / DisplayPort over USB-C connection, delivering data, video and power to compatible laptops and tablets. It supports up to 130W power delivery for Dell systems and up to 60W for non-Dell devices. The dock enables connection to dual FHD screens or a single 4K display at 30Hz and offers multiple ports for peripherals including USB-A, audio and Gigabit Ethernet.

Advantages

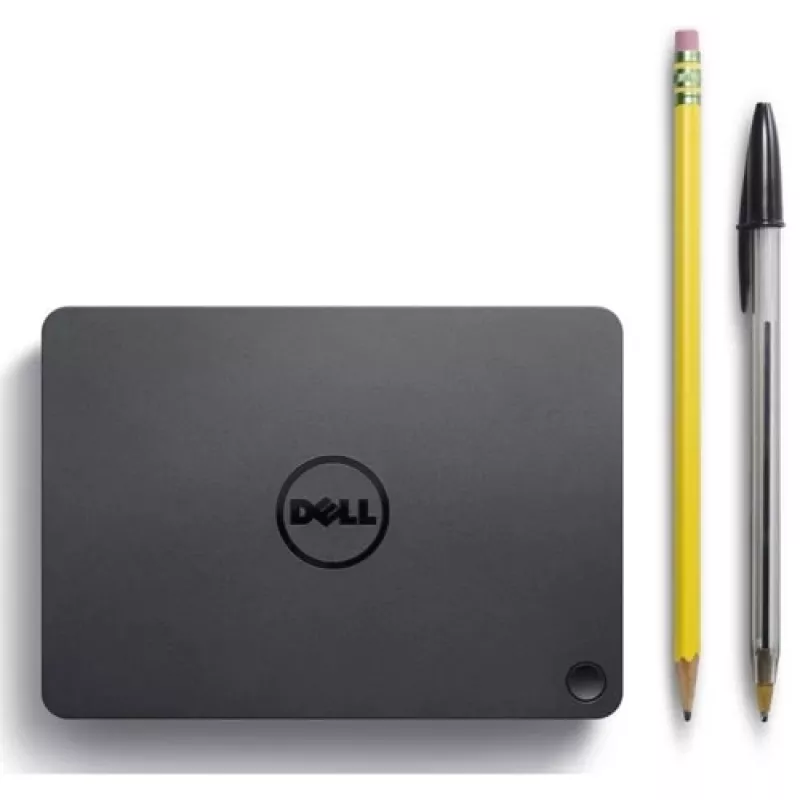

This compact dock (approximately 15.49 x 10.92 x 2.11 cm) uses one cable for streamlined setup and workspace flexibility. It supports reliable video performance over USB Type-C, provides power delivery while connected, and includes a Kensington lock slot for physical security. The combination of USB 3.2 Gen 1 Type-A ports, USB 2.0 ports, HDMI and VGA outputs and Gigabit Ethernet makes it suitable for a wide range of workstations and meeting-room scenarios.

Suitable for

• Office desktops and laptops with USB-C (DisplayPort over USB-C) support
• Hot desks and shared workspaces where quick single-cable docking is required
• Conference rooms and meeting setups for connecting laptops to projectors or displays

Key specifications

• Model: Dell WD15 (180W)
• Manufacturer part number (MPN): 05FDDV
• EAN: 5704174087007
• Power adapter: 180W AC adapter (7.4 mm barrel)
• Power delivery: up to 130W for Dell devices, up to 60W for non‑Dell devices
• Display support: Dual FHD displays or single 4K @ 30Hz

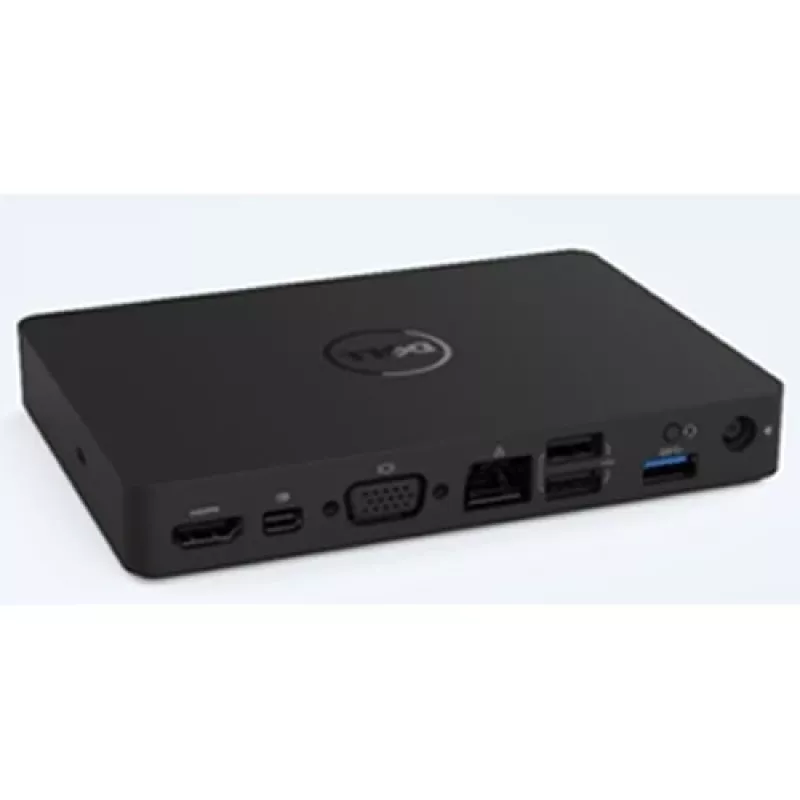

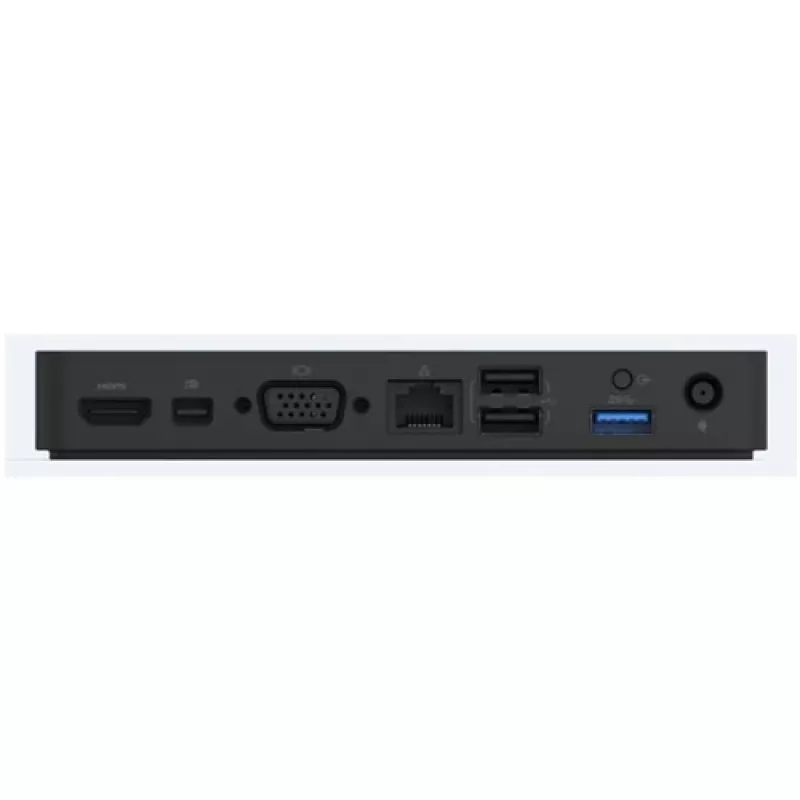

• USB ports: Three USB 3.2 Gen 1 (Type-A), Two USB 2.0
• Video outputs: HDMI x1, VGA (D-Sub) x1

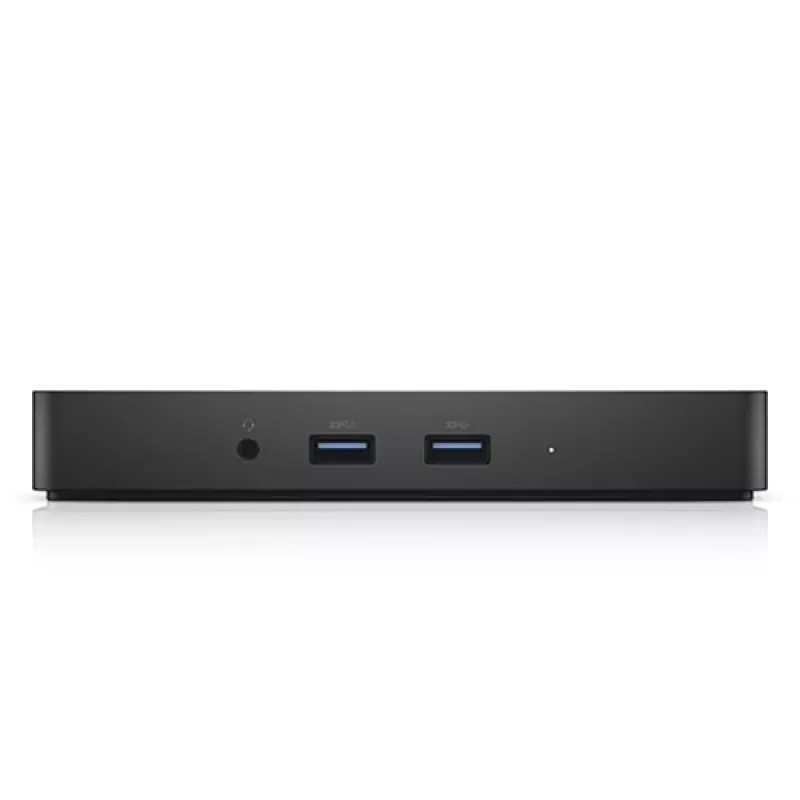

• Audio: 3.5 mm combo audio (front) and speaker output (rear)
• Ethernet: Gigabit Ethernet (RJ-45)
• Security: Kensington lock slot
• Connectivity: Wired (USB Type-C DisplayPort Alt Mode)
• Color: Black
• Weight: 0.422 kg

How to use

Place the dock on your desk or workspace and connect the 180W AC adapter to the docking station. Use the integrated USB Type-C (DisplayPort over USB-C) cable to connect your compatible laptop or tablet; the single cable will provide video, data and power according to the device capabilities. Connect external displays via the HDMI or VGA ports, attach peripherals to the USB-A and USB 2.0 ports, plug audio devices into the front combo jack or rear speaker output, and connect wired networks through the Gigabit Ethernet port. Engage the Kensington lock if required for security.

Recommendations

For best performance, use systems that support DisplayPort over USB-C and the stated power delivery levels; when connecting a single 4K display, ensure the host device’s USB-C port supports 4K output and expect up to 30Hz refresh rate. Verify cable orientation and secure the power adapter connection for stable charging and video output.
