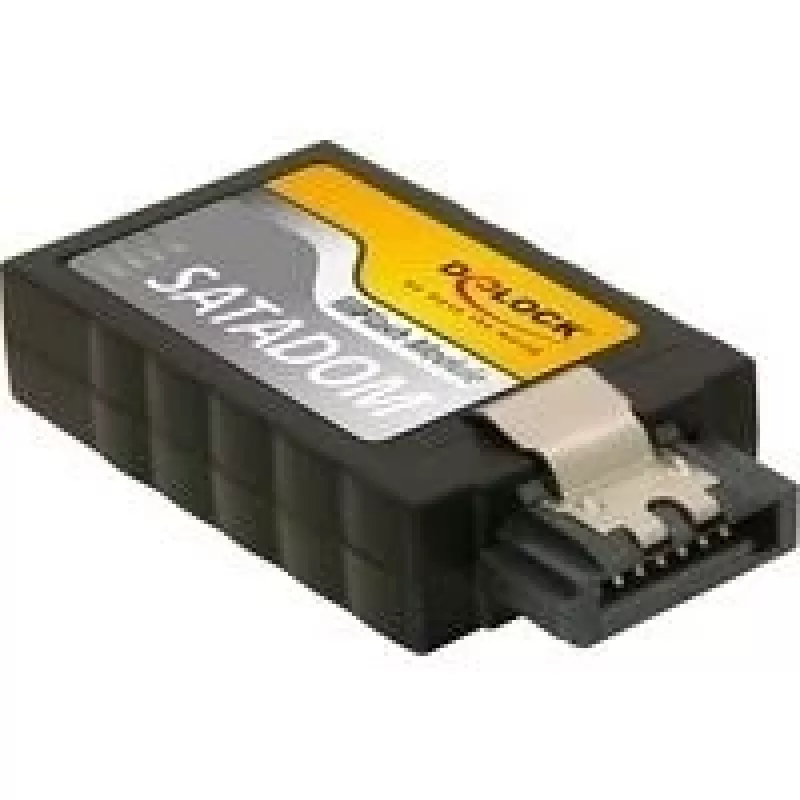

Delock 54351 Módulo flash SATA (SATA DOM) 2 GB, vertical, SATA-300

The DeLOCK 54351 SATA 3 Gb/s Flash Module is a compact internal SSD with 2 GB capacity, designed for mobile and embedded applications such as IPCs, measuring systems and digital signage. Its small size, SLC NAND and high shock resistance make it suitable where robustness and reliable basic storage are required. Metal clips on the SATA connector provide additional retention.

Advantages

This SATA flash module uses SLC (Single Level Cell) technology for improved endurance and reliability, supports SMART and i-SMART diagnostics, and offers low power consumption in idle and active modes. It provides broad compatibility through SATA transfer modes (3 Gb/s and 1.5 Gb/s) and multiple PIO/MDMA/UDMA modes, as well as high MTBF for long-term operation.

Suitable for

• Industrial PCs (IPCs) and embedded systems
• Measuring and control systems
• Digital signage and kiosks
• Applications requiring compact, shock-resistant storage

Key specifications

• Capacity: 2 GB
• Interface: 7-pin SATA, 3 Gb/s (backward compatible 1.5 Gb/s)
• Flash type: SLC (Single Level Cell)
• Operating voltage: 5 V ±5%
• Operating temperature: 0 °C to +70 °C
• Power consumption: read 230 mA, write 330 mA, idle 130 mA
• Transfer modes: SATA 3 Gb/s, SATA 1.5 Gb/s, PIO 0–4, MDMA 0–2, UDMA 0–6
• S.M.A.R.T. & i-S.M.A.R.T. support
• Endurance: 100,000 cycles
• Performance: read up to 26 MB/s, write up to 20 MB/s
• MTBF: > 4,000,000 hours
• Vibration: 7–2000 Hz; Shock: 1500 G / 0.5 ms
• Colour: Black

How to use

Install the DeLOCK 54351 SSD into a compatible 7-pin SATA internal slot on the host device and secure the connector with the provided metal clips for additional retention. Ensure the host supplies a stable 5 V power rail and that the device operates within the specified temperature range. Format the drive in the host operating system if required and use standard SATA drivers; no special software is necessary for basic operation.

Recommendations

For reliable long-term operation, mount the SSD in a vibration-damped location within the device, avoid exposure to temperatures outside 0–70 °C, and monitor drive health using S.M.A.R.T. tools. Use SLC-optimized workloads for maximum endurance where possible.
