DeLOCK 61062 adaptador SATA interno M.2 a SATA 6 Gbit/s RAID 0 1 10 JBOD

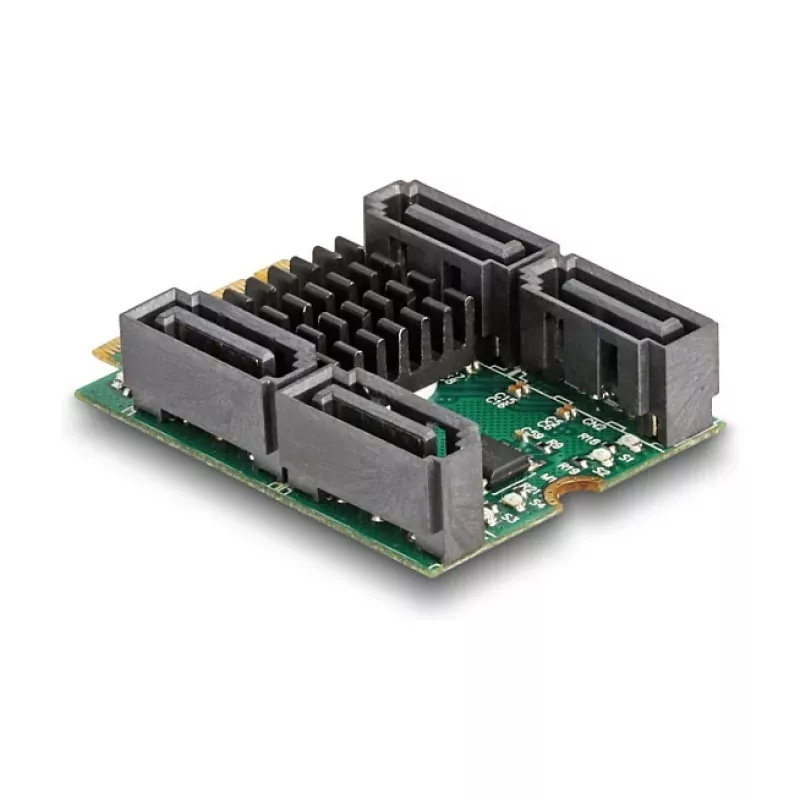

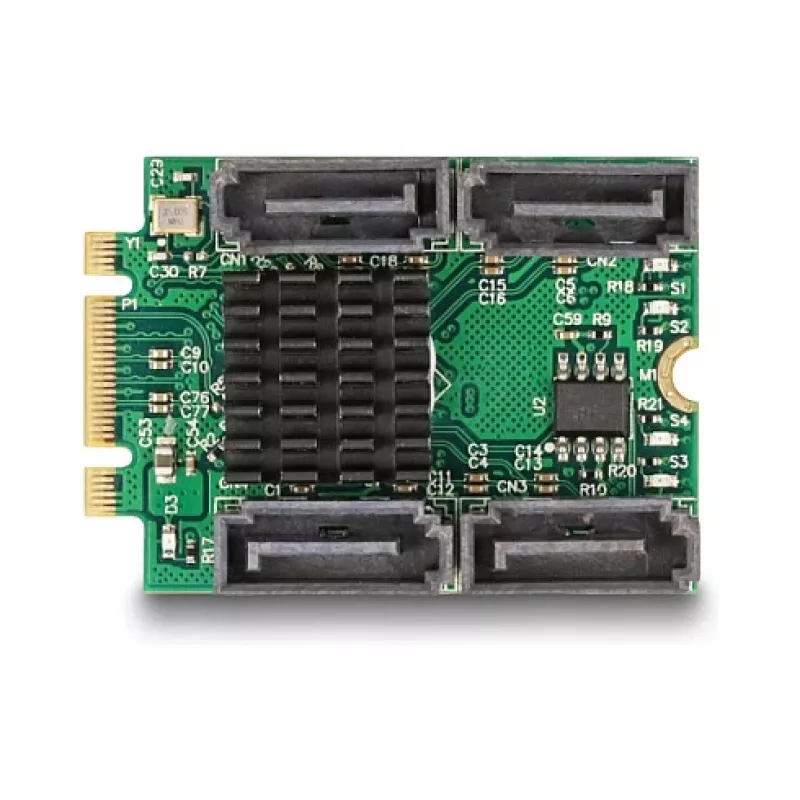

The DeLOCK 61062 internal SATA adapter converts an M.2 interface to four SATA ports with a maximum transfer rate of 6 Gbit/s. It supports multiple RAID modes (0, 1, 10 and JBOD) and includes a hyperduo function that can combine an SSD and an HDD to leverage the speed of the SSD and the capacity of the HDD. The adapter is compact (30 × 42 × 13 mm) and is available in black and green, making it suitable for space-constrained internal system upgrades.

Advantages

This M.2 to SATA adapter expands a system with four SATA ports while remaining compact. Support for RAID 0, 1, 10 and JBOD enables flexible storage configurations. The hyperduo function allows pairing an SSD and an HDD to balance performance and capacity. A 6 Gbit/s SATA interface ensures high-speed data transfer for connected drives.

Suitable for

• Adding multiple SATA drives to systems with an available M.2 slot
• Creating RAID arrays (RAID 0, 1, 10) or JBOD configurations
• Combining an SSD and HDD via hyperduo to improve overall storage performance
• Compact PC builds and upgrades where space is limited

Key specifications

• Manufacturer: DELOCK
• Model: 61062
• Product type: Internal M.2 to SATA adapter
• SATA transfer rate: up to 6 Gbit/s
• Supported RAID modes: 0, 1, 10, JBOD
• Hyperduo function: supported (SSD + HDD)
• Dimensions: 30 × 42 × 13 mm
• Colors: black, green
• MPN: 61062
• EAN: 4043619610624

How to use

Install the adapter into an available internal M.2 slot according to your motherboard manual, then connect up to four SATA drives to the adapter's SATA ports. Configure the desired RAID mode (RAID 0, 1, 10 or JBOD) in the system BIOS/UEFI or via the RAID configuration utility provided by the motherboard or controller. To use hyperduo, connect one SSD and one HDD and enable the hyperduo mode during configuration so the system can combine speed and capacity.

Recommendations

Ensure your motherboard supports the adapter and the selected RAID modes in an M.2 slot before installation. Back up important data prior to creating or changing RAID arrays. Use high-quality SATA cables and compatible drives for reliable performance.
