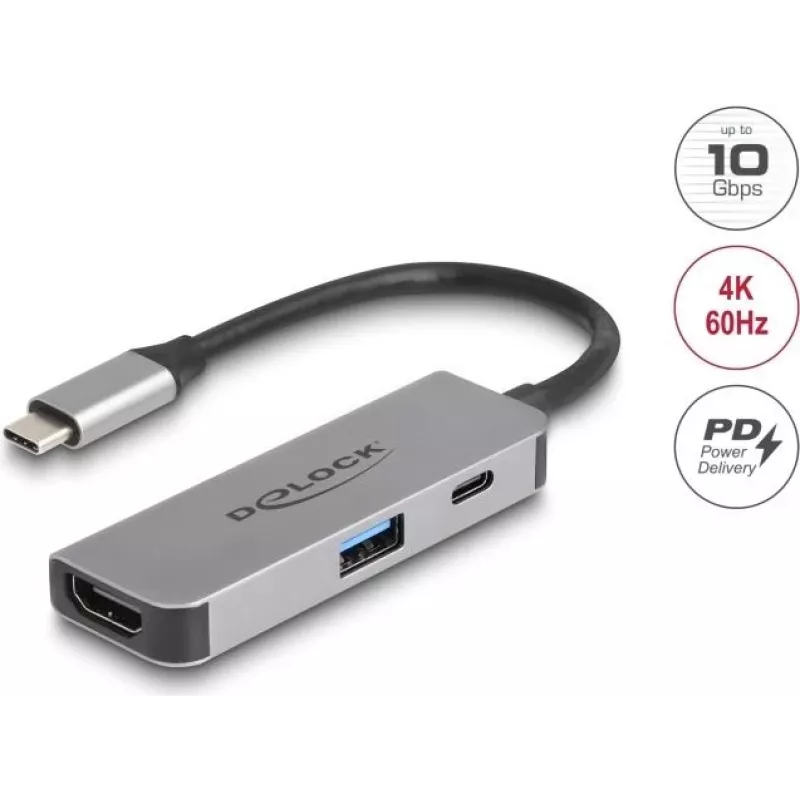

DeLOCK 61063 hub USB Type-C 10000 Mbit/s HDMI USB 3.2 Gen 1

This Delock adapter connects an HDMI monitor to a computer with a USB-C™ port that supports DisplayPort alternate mode. It is compatible with many laptops such as MacBook and Chromebook and can also be used on Thunderbolt™ 3 and Thunderbolt™ 4 interfaces. The adapter includes a USB Type-C™ Power Delivery (USB PD 3.0) port that allows charging the connected host device with up to 95 watts while in use.

Advantages

The adapter supports HDMI output up to 3840 x 2160 at 60 Hz and uses a USB 3.2 Gen 1 Type-C connection for video and data. It provides a USB Power Delivery input for powering and charging the host device up to 95 W, and its compact design with a 0.15 m cable and grey finish suits portable setups. Compatible with Windows, Mac and Linux systems, it is suitable for modern USB-C and Thunderbolt ports.

Suitable for

• Connecting a USB-C or Thunderbolt laptop to an external HDMI monitor or TV
• Extending desktop or mirroring screen for presentations or home office
• Charging the connected laptop or tablet while using an external display (up to 95 W)
• Use with MacBook, Chromebook and similar USB-C devices

Key specifications

• Manufacturer: DELock, MPN: 61063, EAN: 4043619610631
• Interfaces: USB-C (DisplayPort alt mode), HDMI, USB-C Power Delivery (USB PD 3.0)
• Data transfer: USB 3.2 Gen 1 (up to 10000 Mbit/s as stated)
• Video resolution: up to 3840 x 2160 @ 60 Hz
• Cable length: 0.15 m; Colour: Grey
• Compatible systems: Windows, Mac, Linux; supports Thunderbolt 3/4

How to use

Connect the adapter's USB-C plug to a computer USB-C or Thunderbolt port that supports DisplayPort alternate mode. Attach an HDMI cable from the adapter's HDMI port to the external monitor or TV. If you need to charge the host device while using the display, connect a USB-C PD power adapter to the adapter's USB-C PD port; the adapter supports up to 95 W charging. Configure display settings on the host operating system as required (extend, mirror, or change resolution/refresh rate).

Recommendations

Use a USB-C power adapter that supports USB Power Delivery and provides sufficient wattage (up to 95 W) for your laptop. For optimal video performance at 3840 x 2160 @ 60 Hz use high-quality HDMI cables rated for 4K/60 Hz and ensure the host port supports DP Alt Mode or Thunderbolt 3/4.
