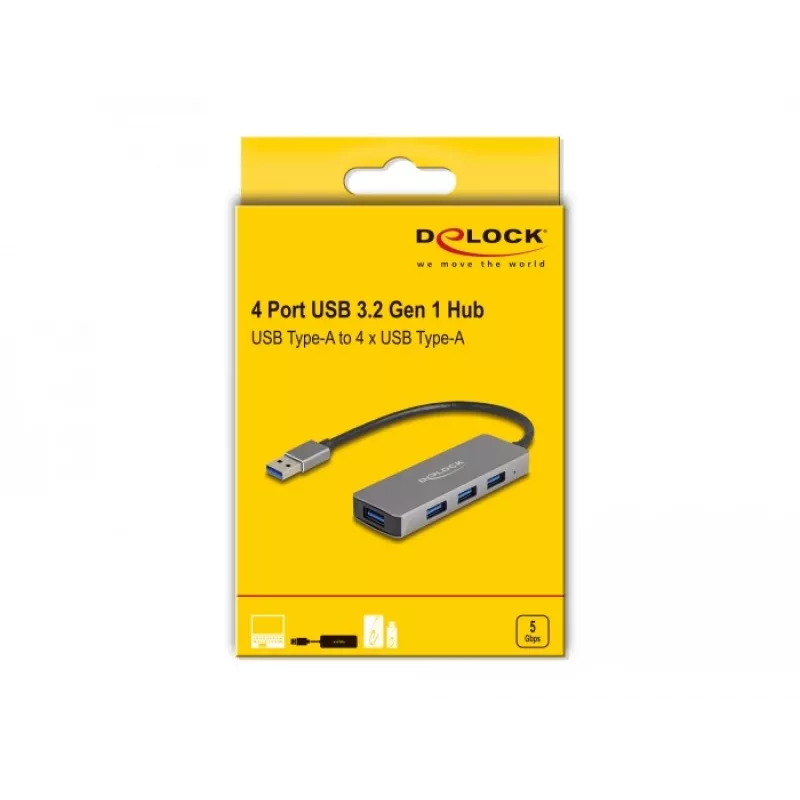

DeLOCK 63171 Hub USB 3.2 Gen 1 Type-A 5000 Mbit/s Gris

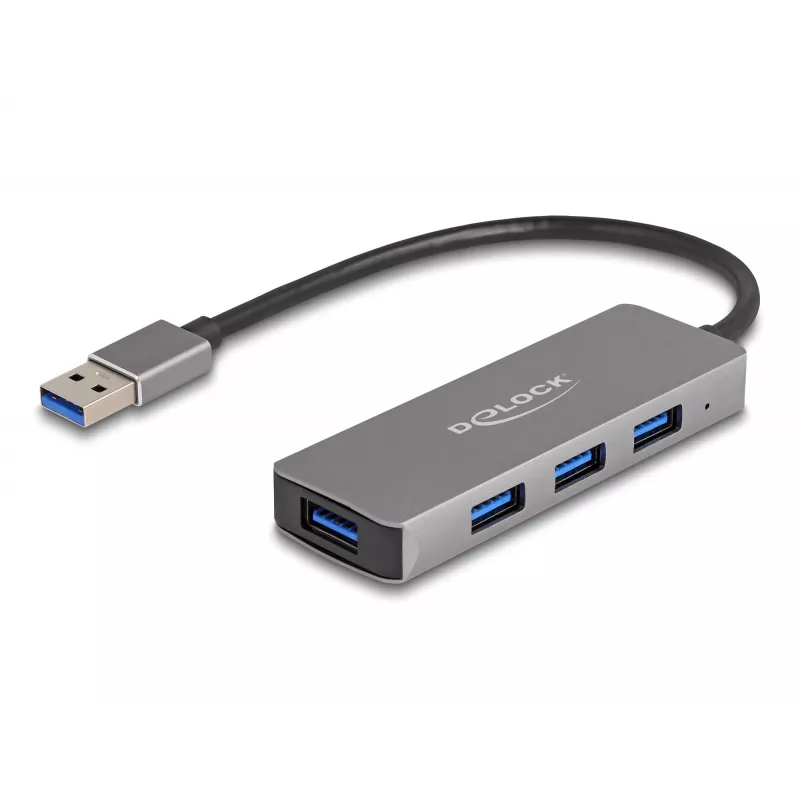

The DeLOCK 63171 is a compact USB hub with a metal housing that connects to a computer, laptop or compatible mobile device via a USB Type-A host interface. It expands a single USB port into four USB Type-A ports (USB 3.2 Gen 1) with a maximum data transfer rate of 5000 Mbit/s, allowing connection of USB flash drives, card readers, external enclosures and similar USB peripherals. The hub is finished in grey and measures approximately 30 mm × 90 mm × 13 mm.

Advantages

The metal housing provides increased durability while maintaining a small footprint suitable for mobile use. USB 3.2 Gen 1 Type-A ports deliver high-speed data transfer up to 5 Gbit/s for compatible devices. Its compact size makes the hub easy to carry in a laptop bag or with other travel equipment. The hub is compatible with Windows 8.1, 10, 11, Mac OS X 12.0/13.0 and Linux kernel versions 5.13–5.15.

Suitable for

• Connecting multiple USB flash drives and external storage devices
• Attaching card readers and external enclosures
• Expanding USB connectivity on laptops and desktop PCs with limited ports
• Use during travel or on the go where compact and sturdy hubs are preferred

Key specifications

• Model: DeLOCK 63171
• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
• Ports: 4 × USB Type-A (USB 3.2 Gen 1)
• Data transfer rate: up to 5000 Mbit/s (5 Gbit/s)
• Colour: Grey
• Compatibility: Windows 8.1, 10, 11; Mac OS X 12.0, 13.0; Linux Kernel 5.13–5.15
• Dimensions (W×D×H): approx. 30 mm × 90 mm × 13 mm

How to use

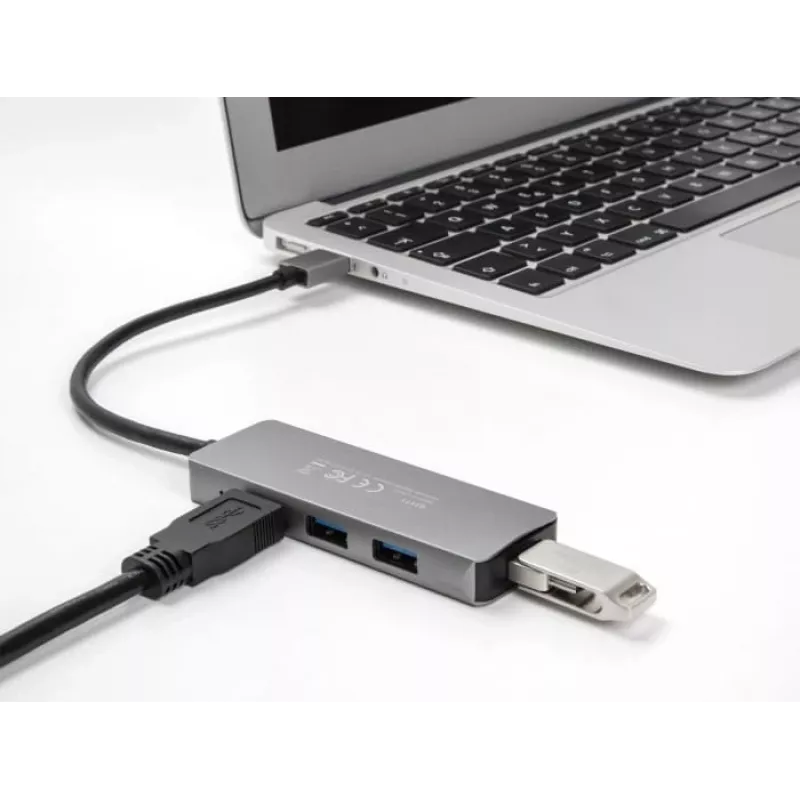

Plug the DeLOCK 63171 into an available USB Type-A host port on your computer, laptop or compatible mobile device. Once connected, attach USB devices such as flash drives, card readers or external enclosures to any of the four Type-A ports. The operating system will detect the hub and connected devices; install drivers if prompted by the system. For best performance, connect high-speed devices to the hub while the host supports USB 3.2 Gen 1.

Recommendations

To ensure optimal performance, connect the hub directly to a USB Type-A port on the host rather than through another hub. Avoid overloading the hub with high-power devices that may exceed the host port's power output; use externally powered hubs or devices with separate power supplies when required.
