DeLOCK 90856 Módulo Keystone RCA Blanco 22,5 mm x 45 mm x 33 mm

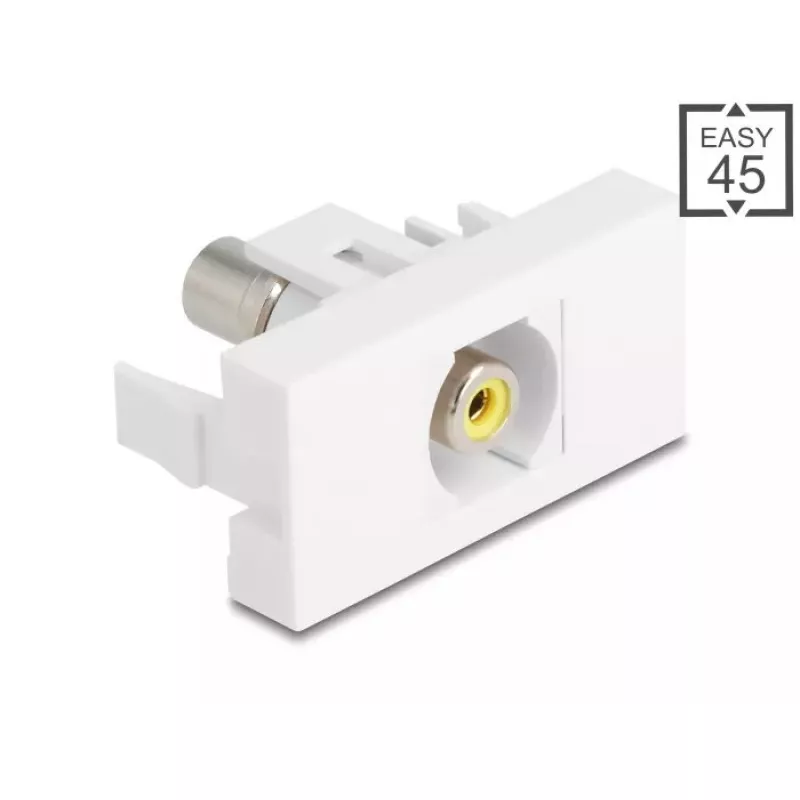

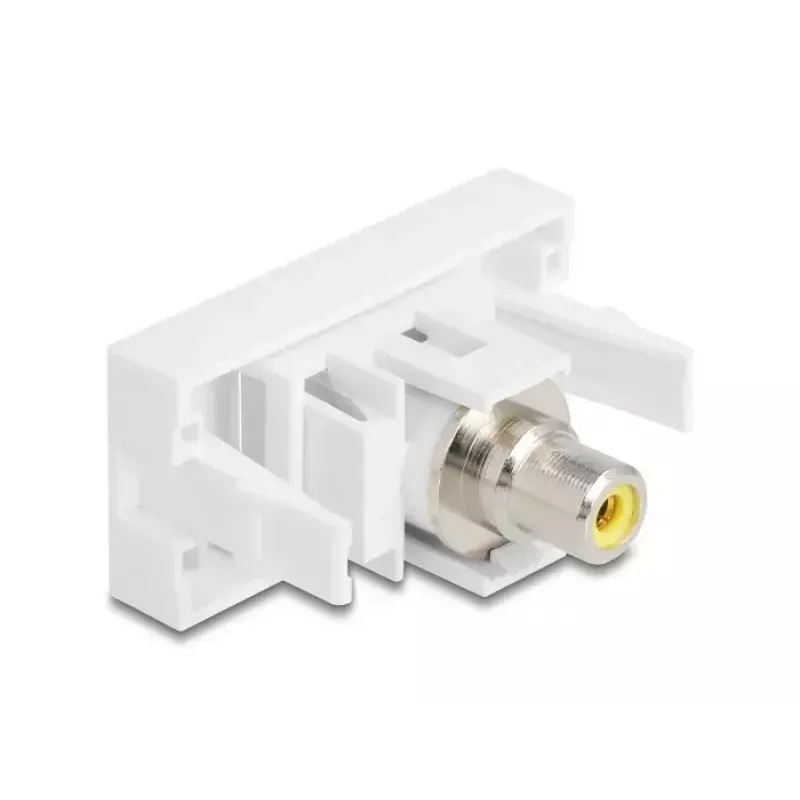

The DeLOCK 90856 Keystone Module provides an RCA audio/video port in a compact housing sized 22.5 mm x 45 mm x 33 mm and is compatible with the Delock Easy 45 modular system. The module snaps into place for a secure fit and can be removed easily when needed. It is supplied in a protective polybag and is white in colour.

Advantages

The keystone module offers standardised RCA connectors for reliable analogue audio and composite video connections and fits into Easy 45 holders and cable ducts. Its snap-in mechanism ensures firm mounting without tools while allowing straightforward replacement or reconfiguration. The compact dimensions make it suitable for installations with limited space.

Suitable for

Key specifications

How to use

Push the module into a compatible Easy 45 module holder or cable duct until it snaps into place. Connect standard RCA cables to the front and rear RCA connectors as required. To remove the module, press the retention tabs (if present) and pull the module out of the holder. Ensure devices are powered off before connecting or disconnecting cables to avoid signal issues.

Recommendations

Use suitable RCA cables and avoid excessive bending near the connectors to maintain signal quality. Install the module in the Easy 45 holder that matches its dimensions and secure the holder according to the system manufacturer’s instructions.
