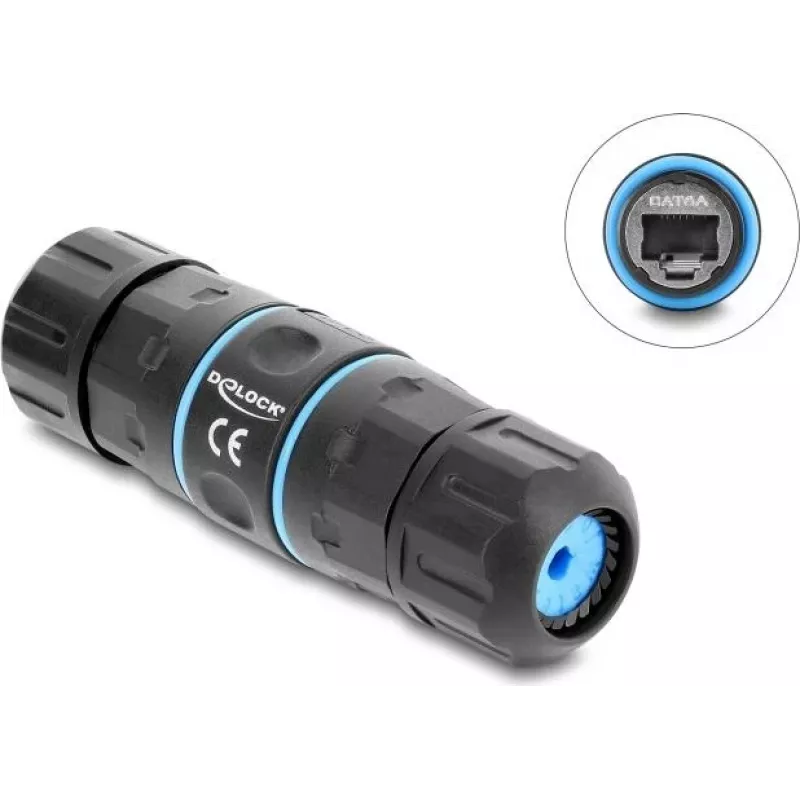

Delock Acoplador RJ45 conector hembra a conector hembra Cat.6A con rosca M20 x 1,5 mm formato corto IP68 resistente al polvo y al agua (90658)

The Delock RJ45 Female to RJ45 Female Cable Connector is a robust and compact solution for extending or connecting Ethernet cables in harsh environments. Designed for Category 6A (Cat.6A) networks, it supports data transfer rates up to 10 Gigabit Ethernet (10GBASE-T) with a bandwidth of up to 500 MHz. The connector features an M20 x 1.5 mm thread for secure panel mounting and is rated IP68, making it dustproof and waterproof (submersible). Its short, compact design is ideal for space-constrained installations. The housing is made of PA66 (Nylon) with a silicone gasket, and the contacts are gold-plated for reliable connectivity. It supports Power over Ethernet (PoE and PoE+) and operates in temperatures from -20 °C to 85 °C. Suitable for industrial, outdoor, and other demanding applications.

Advantages

IP68 rated for dust and water protection; supports high-speed Cat.6A networks; compact design for tight spaces; easy panel mounting with M20 thread; robust PA66 housing with silicone seal; gold-plated contacts for corrosion resistance; PoE and PoE+ compatible.

Suitable for

• Industrial Ethernet connections
• Outdoor network installations
• Harsh environment cabling
• Panel-mounted network extensions

Key specifications

• Connector 1: RJ45 Female
• Connector 2: RJ45 Female
• Network standard: Cat.6A
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Shielding: Shielded (STP/FTP compatible)
• IP rating: IP68
• Thread: M20 x 1.5 mm
• Housing material: PA66 (Nylon)
• Gasket material: Silicone
• Contact plating: Gold-plated
• Operating temperature: -20 °C to 85 °C
• PoE support: PoE, PoE+
• Colour: Black

Recommendations

For best performance, use with Cat.6A or higher shielded cables. Ensure proper sealing of the connector when used in outdoor or wet environments.
