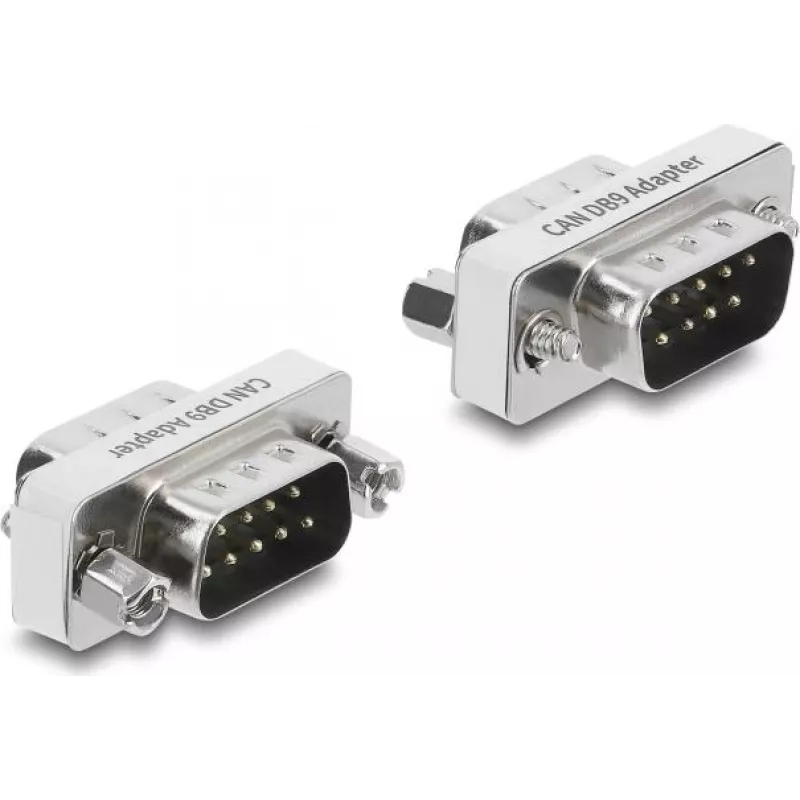

Delock Adaptador D-Sub 9 Pines Bus CAN Macho a Macho Resistencia de Terminación de 120 Ohmios

The Delock D-Sub 9 Pin CAN Bus Adapter is a high-quality adapter designed for connecting devices with D-Sub 9 pin female ports to a CAN bus network. It features a built-in 120 Ohm termination resistor that can be switched on or off via a DIP switch, ensuring proper signal termination for reliable data transmission. The adapter is housed in a durable metal casing with a silver finish, making it suitable for industrial and automotive applications.

Advantages

Switchable termination resistor allows flexible use in different CAN bus configurations. Robust metal housing provides excellent shielding and durability. Easy inline installation without the need for additional tools.

Suitable for

• CAN bus networks in automotive, industrial automation, and embedded systems
• Connecting devices with D-Sub 9 pin female connectors to a CAN bus
• Terminating CAN bus lines to prevent signal reflections

Key specifications

• Connector 1: D-Sub 9 pin male
• Connector 2: D-Sub 9 pin male
• Termination resistor: 120 Ohm, switchable via DIP switch
• Pin assignment: CAN_L (Pin 2), CAN_GND (Pin 3), CAN_H (Pin 7)
• Housing material: Metal
• Colour: Silver
• Product type: Adapter
• Number of pins: 9
• Connector standard: DE-9
• Mounting type: Inline

Recommendations

For optimal performance, ensure that the termination resistor is enabled only at the ends of the CAN bus line. This adapter is ideal for prototyping and permanent installations.
