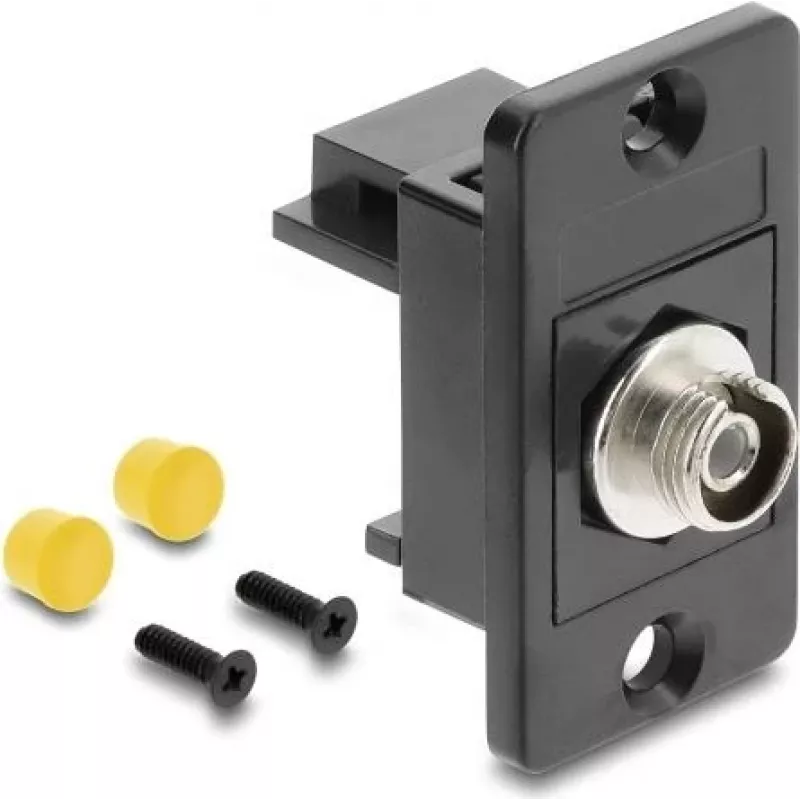

DELOCK Adaptador FC Simplex conector hembra a conector hembra para montaje en panel, carcasa metálica, casquillo cerámico, negro (91189)

With an insertion loss of less than 0.3 dB and a precision ceramic alignment sleeve, this DELOCK panel mount adapter ensures a reliable, low-loss connection for FC simplex fiber optic links. The robust metal housing in a D-type form factor is built for permanent installation in patch panels, enclosures, or wall plates, providing a stable interface between two FC simplex female connectors.

Overview

The DELOCK 91189 is a panel mount FC simplex adapter designed to join two FC simplex connectors through a bulkhead or panel. It features a female-to-female configuration, allowing you to connect two terminated fiber cables from opposite sides of a panel. The adapter is suitable for both single-mode and multi-mode fibers, making it a versatile choice for various network environments.

What stands out

• Low insertion loss (< 0.3 dB) for minimal signal degradation.
• Ceramic sleeve ensures precise fiber alignment and durability over 500 mating cycles.
• Metal D-type housing offers robust mechanical stability and long-term reliability.
• Supports both single-mode and multi-mode fibers for flexible deployment.
• Includes dust caps to protect the adapter when not in use.
• RoHS compliant, meeting environmental standards.

Technical details

• Connector type (side 1): FC Simplex Female
• Connector type (side 2): FC Simplex Female
• Mounting type: Panel mount
• Housing type: D-type
• Housing material: Metal
• Colour: Black
• Fiber mode compatibility: Single-mode / Multi-mode
• Sleeve material: Ceramic
• Insertion loss: < 0.3 dB
• Operating temperature: -20 °C to 70 °C
• Storage temperature: -40 °C to 85 °C
• Mating cycles: > 500
• Dust caps included: Yes
• Panel cutout dimensions: 24 x 19 mm
• Compliance: RoHS

Our verdict

The DELOCK 91189 offers a reliable and durable solution for panel-mounted FC simplex connections. Its low insertion loss and ceramic sleeve ensure excellent optical performance, while the metal housing provides the robustness needed for professional installations. Whether you're building a fiber distribution frame or a simple wall outlet, this adapter delivers consistent quality and ease of use.
