DeLOCK adaptador gráfico USB 7680 x 4320 píxeles negro gris

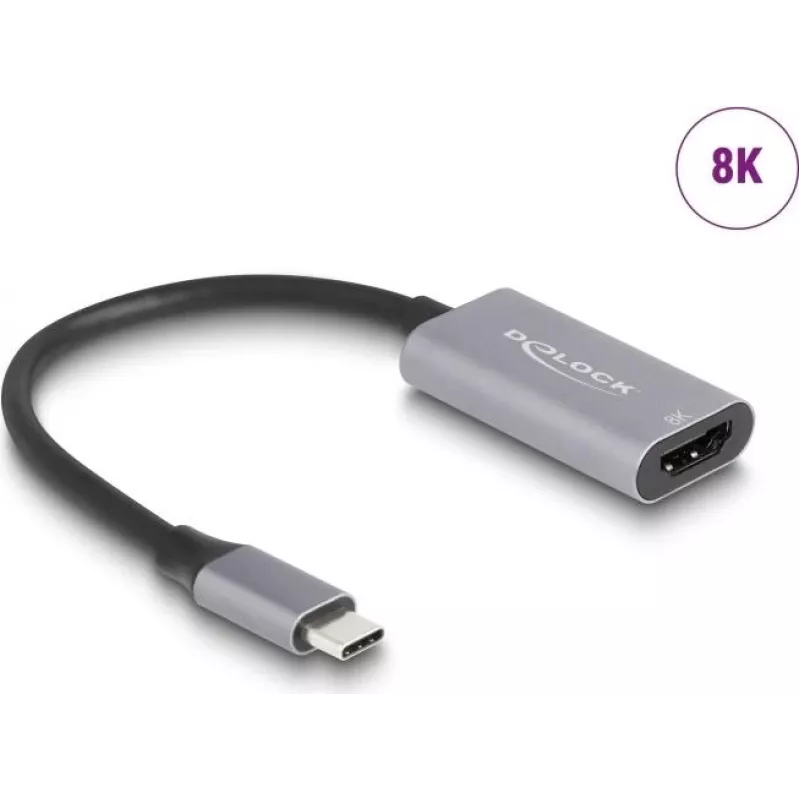

This DeLOCK USB graphics adapter allows connection of an HDMI monitor in 8K Ultra HD (7680 x 4320 @ 30 Hz) to a computer with a USB-C™ connector that supports DisplayPort Alternate Mode. The compact adapter with a 0.15 m cable and aluminum housing is compatible with a range of laptops such as MacBook, Chromebook and similar systems, and can also operate on Thunderbolt™ 3 and Thunderbolt™ 4 ports. Supported operating systems include Windows 10, Windows 11, Mac OS 13.1 and Linux Kernel 6.2.

Advantages

The adapter supports very high-resolution output up to 7680 x 4320 pixels (8K @ 30 Hz) and provides a reliable HDMI signal through a USB Type-C connection with DisplayPort alternate mode. Its aluminum housing offers durability and the short 0.15 m integrated cable reduces clutter while maintaining a stable connection. Broad OS compatibility ensures use with modern Windows, macOS and Linux systems.

Suitable for

• Connecting an 8K HDMI monitor to laptops with USB-C DisplayPort Alt Mode
• Use with MacBook and Chromebooks that have USB-C or Thunderbolt ports
• High-resolution video playback, presentation displays and detailed visual work

Key specifications

• Maximum resolution: 7680 x 4320 pixels (8K) at 30 Hz
• Input connector: USB Type-C (male) with DisplayPort Alternate Mode support
• Output connector: HDMI (supports 8K output)
• Compatible interfaces: USB-C, Thunderbolt 3, Thunderbolt 4
• Supported operating systems: Windows 10, Windows 11, Mac OS 13.1, Linux Kernel 6.2
• Housing material: aluminium
• Cable length: 0.15 m
• Product colour: Grey, Black

How to use

Connect the USB Type-C male plug of the adapter to a computer port that supports DisplayPort Alternate Mode or a Thunderbolt 3/4 port. Attach an HDMI cable from the adapter's HDMI output to the HDMI input on the monitor or TV. Configure the display settings on the computer to select the external monitor and set the desired resolution and refresh rate (up to 7680 x 4320 @ 30 Hz). Ensure the connected device's drivers and operating system versions listed are present for full compatibility.

Recommendations

For stable 8K output, use a high-quality HDMI cable rated for the required bandwidth and verify that the host device's USB-C or Thunderbolt port supports DisplayPort Alternate Mode. If image or refresh rate options are limited, check OS display drivers and cable specifications.
