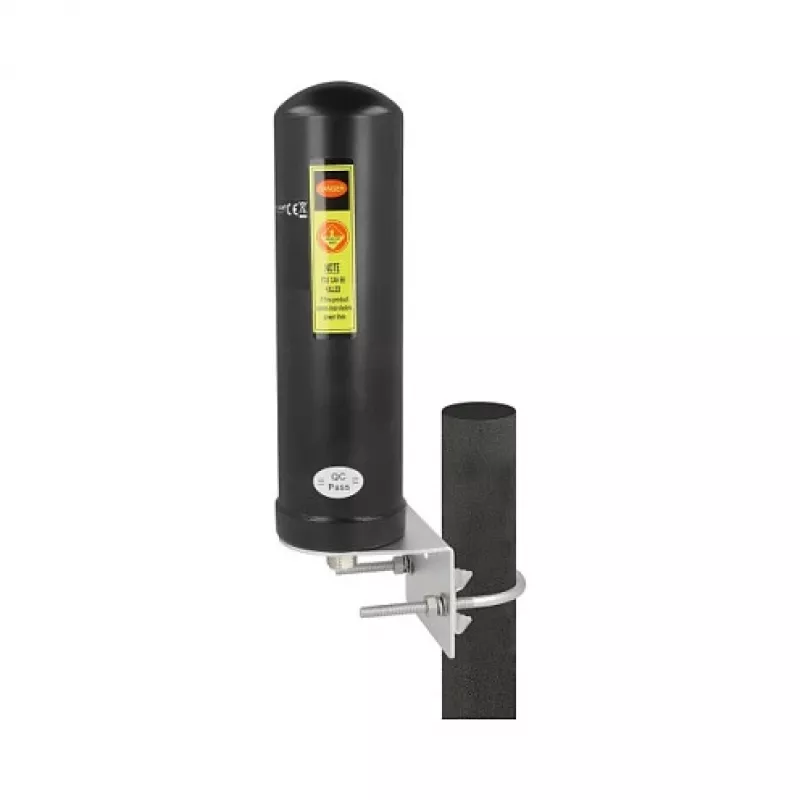

Delock antena 5G LTE conector hembra N 3 - 5 dBi omnidireccional montaje en pared y mástil exterior negro

The Delock 5G LTE Antenna is a high-performance omnidirectional antenna designed for outdoor use. It supports a wide frequency range covering 5G, LTE, and other cellular bands, making it ideal for enhancing signal strength in remote or weak coverage areas. With a gain of 3 to 5 dBi and an IP67 protection class, this antenna is built to withstand harsh weather conditions while providing reliable connectivity.

Advantages

This antenna offers versatile mounting options for wall or mast installation, with support for mast diameters from 30 to 50 mm. Its UV-resistant ABS housing ensures long-lasting durability. The N female connector allows direct connection to compatible devices without the need for additional cables.

Suitable for

• 5G and LTE routers and modems
• Industrial IoT applications
• Remote monitoring systems
• Mobile network signal enhancement

Key specifications

• Antenna Type: 5G LTE Antenna
• Frequency Range: 698 - 960 MHz, 1710 - 2700 MHz, 3300 - 3800 MHz, 4200 - 6000 MHz
• Antenna Gain: 3 - 5 dBi
• Radiation Pattern: Omnidirectional
• Polarization: Linear, Vertical
• VSWR: < 2.0
• Impedance: 50 Ohm
• Connector Type: N female
• Housing Material: ABS UV resistant
• Protection Class: IP67
• Mounting Type: Wall mounting, Mast mounting
• Supported Mast Diameter: 30 - 50 mm
• Operating Temperature: -40 °C to 85 °C
• Storage Temperature: -50 °C to 90 °C
• Color: Black
• Cable Included: No (Direct connector)

Recommendations

For optimal performance, mount the antenna in a location with clear line of sight to the nearest cell tower. Ensure the N connector is properly sealed against moisture.
