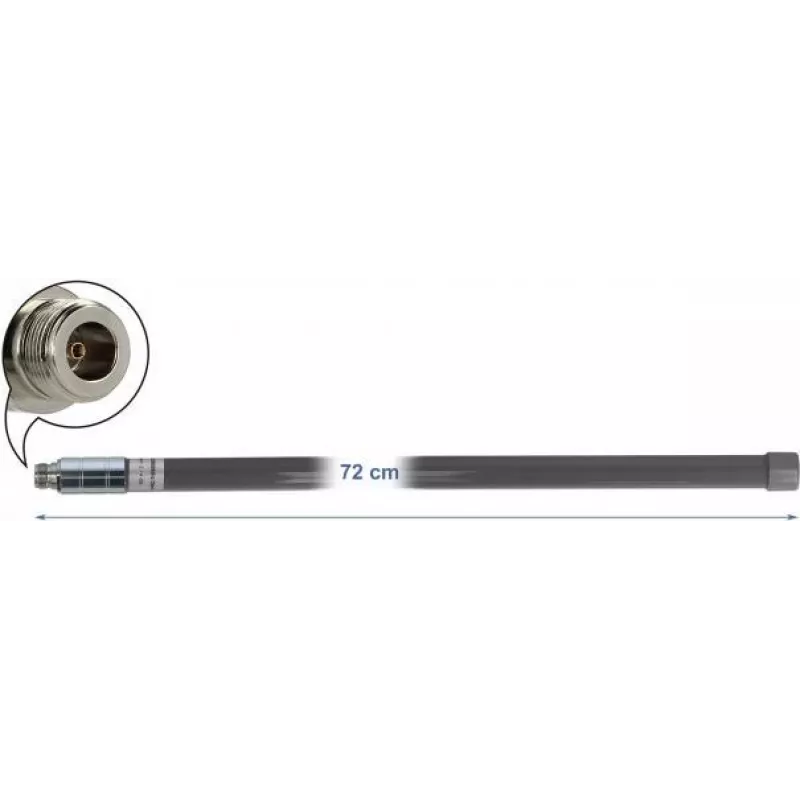

Delock antena LPWAN 433 + 868 MHz conector hembra N 2 dBi 72 cm omnidireccional para exterior gris

The Delock LPWAN antenna is designed for outdoor use and supports both 433 MHz and 868 MHz frequency bands, making it ideal for IoT and M2M applications such as smart metering, environmental monitoring, and industrial automation. With a gain of 2 dBi and omnidirectional radiation pattern, it ensures reliable communication over long distances. The antenna features an N female connector and can be mounted on walls or poles. Its robust fiberglass housing with IP65 protection class withstands harsh weather conditions.

Advantages

This antenna offers versatile mounting options, high durability, and excellent performance for LPWAN networks. The omnidirectional design provides 360-degree coverage, eliminating the need for precise alignment. The IP65 rating ensures operation in rain, dust, and extreme temperatures from -40 °C to 85 °C.

Suitable for

• LPWAN (LoRa, Sigfox, etc.) gateways and devices
• Outdoor IoT applications
• Smart city infrastructure
• Industrial sensor networks

Key specifications

• Frequency range: 433 MHz and 868 MHz
• Gain: 2 dBi
• VSWR: ≤ 2.0
• Impedance: 50 Ohm
• Polarization: Vertical
• Directionality: Omnidirectional
• Connector: N female
• Mounting: Wall mount, pole mount
• Protection class: IP65
• Max. input power: 50 W
• Housing material: Fiberglass
• Colour: Grey
• Operating temperature: -40 °C to 85 °C
• Antenna length: 720 mm
• Antenna diameter: 25 mm

Recommendations

For optimal performance, use with LPWAN gateways supporting 433/868 MHz. Ensure proper grounding and lightning protection for outdoor installations.
