DeLOCK base de acoplamiento USB Type-C 8K HDMI USB PD 3.0 100 W

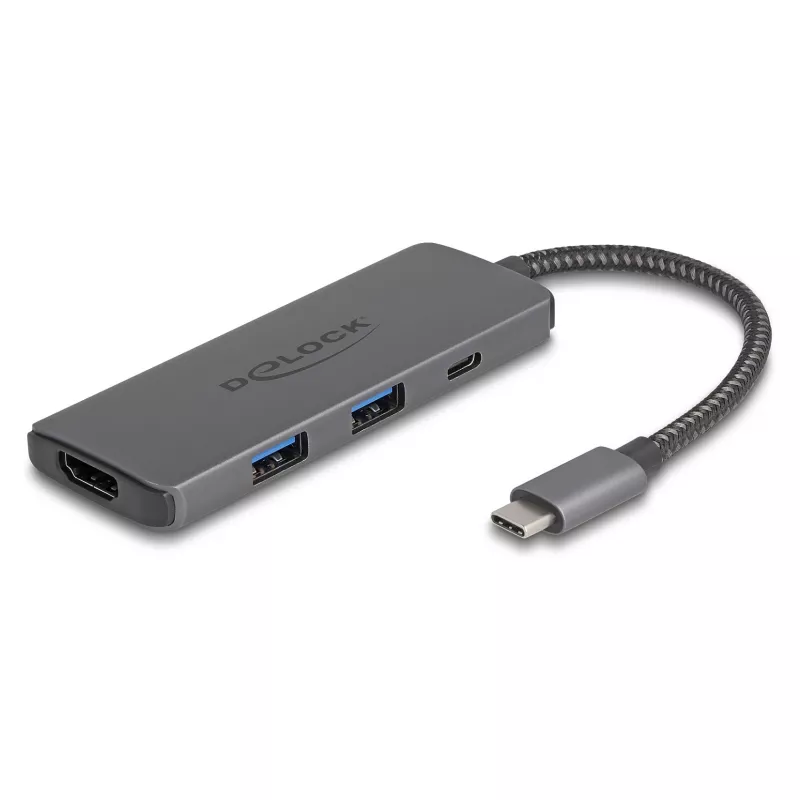

The DeLOCK USB Type-C Docking Station connects to a computer via a USB-C port that supports DP Alt Mode or via Thunderbolt 3 / Thunderbolt 4 and provides multiple interfaces for display, charging and peripherals. The docking station features one HDMI output supporting up to 8K Ultra HD (7680 x 4320 @ 30 Hz), two USB 3.2 Gen 1 Type-A ports and one USB-C port for data or power. A USB-C Power Delivery (USB PD 3.0) port enables charging the host device with up to 100 W while in use.

Advantages

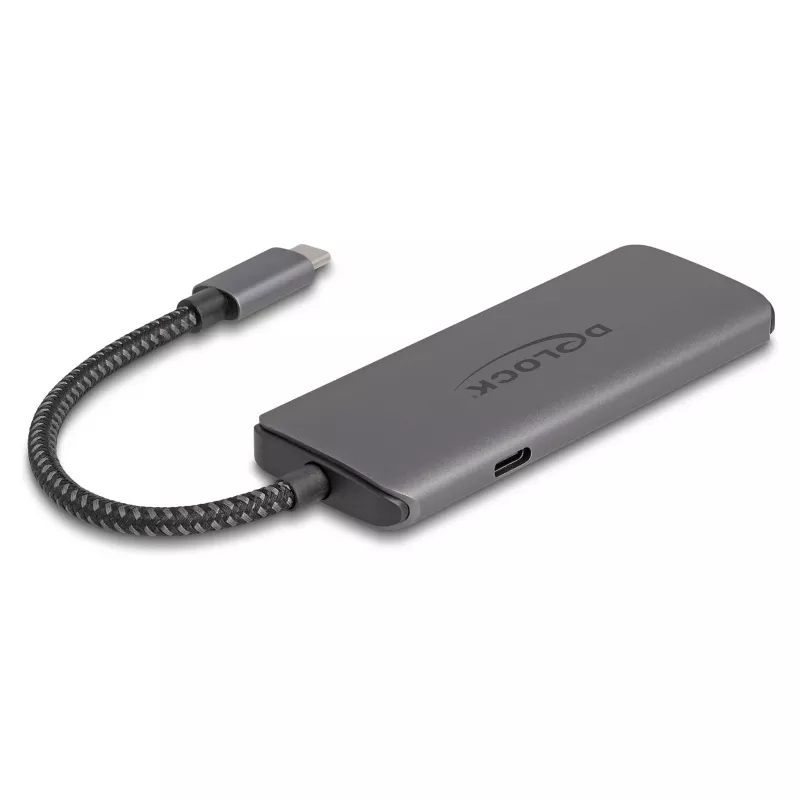

Compact and robust metal housing makes the docking station easy to carry and durable for travel. Single HDMI output supports very high-resolution displays up to 8K. Multiple USB ports permit connection of common peripherals and the integrated USB PD 3.0 port supplies up to 100 W to charge laptops or tablets during operation.

Suitable for

• Connecting an external 8K or 4K monitor via HDMI
• Charging laptops or tablets with up to 100 W Power Delivery
• Using USB Type-A peripherals such as keyboard, mouse or external storage
• Mobile work and travel where a compact docking solution is needed

Key specifications

• Brand: DELOCK
• Model / MPN: 87804
• EAN: 4043619878048
• Host interface: USB-C with DP Alt Mode or Thunderbolt 3/4
• Video output: 1 × HDMI up to 7680 x 4320 @ 30 Hz (8K)
• USB ports: 2 × USB 3.2 Gen 1 Type-A, 1 × USB-C
• Power Delivery: USB PD 3.0 up to 100 W
• Colour: Grey

How to use

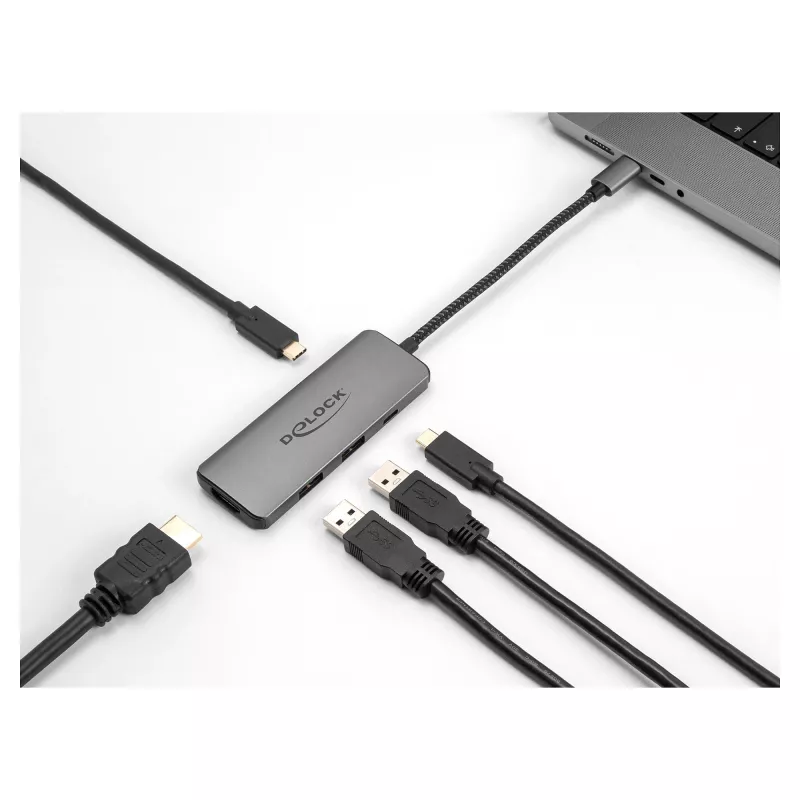

Connect the docking station to a compatible computer USB-C/Thunderbolt port that supports DP Alt Mode or Thunderbolt. Plug the HDMI cable from the docking station to an external monitor to enable display output. Connect USB Type-A devices such as keyboard, mouse or external drives to the available ports. To charge the host device while using the docking station, connect a USB-C power adapter to the docking station's USB-C Power Delivery port; the host will be charged with up to 100 W if the adapter supports that output.

Recommendations

Use a USB-C power adapter rated for sufficient wattage (up to 100 W) to ensure full charging performance. Verify that the host port supports DP Alt Mode or Thunderbolt to enable video output. For the best display performance at 8K resolution, use a high-quality HDMI cable and ensure the connected monitor supports the specified resolution and refresh rate.
