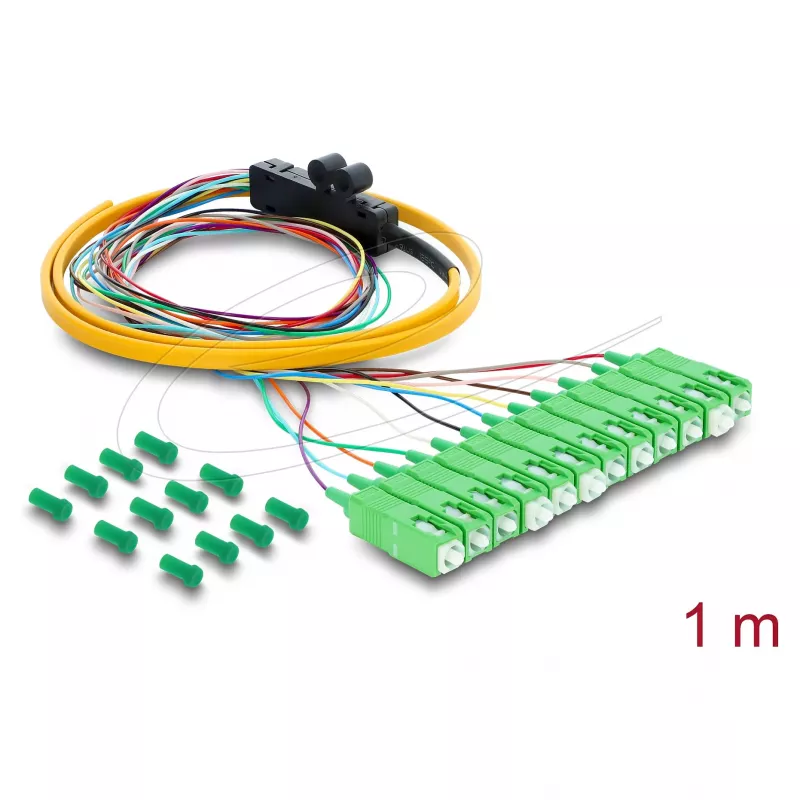

Delock Cable de distribución de fibra óptica pigtail 12 x conector SC-APC simplex a 12 x extremos abiertos 1 m

The Delock Fiber Optic Pigtail Fanout Cable is designed for high-performance fiber optic networks, providing a reliable connection between SC-APC simplex connectors and open ends for splicing. This cable is ideal for data centers, telecommunications, FTTx, and LAN applications, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

This pigtail fanout cable offers easy termination and splicing, saving time and effort during installation. The LSZH jacket ensures safety in enclosed spaces, while the G.657.A1 fiber class provides excellent bend resistance. With 12 fibers in a single cable, it simplifies cable management and reduces clutter.

Suitable for

• Data centers requiring high-density fiber connections
• Telecommunications networks for long-distance transmission
• FTTx deployments for fiber-to-the-home or business
• Local area networks (LAN) with fiber backbone

Key specifications

• Cable type: Fiber Optic Pigtail Fanout Cable
• Number of fibers: 12
• Fiber type: Single-mode OS2 (G.657.A1)
• Connector end 1: 12 x SC-APC Simplex
• Connector end 2: 12 x open ends (for splicing)
• Cable length: 1 m
• Individual fiber diameter: 0.9 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 60 dB
• Operating temperature: -20 °C to 70 °C
• Storage temperature: -20 °C to 70 °C
• Compliance: RoHS, REACH

Recommendations

For best performance, use with compatible SC-APC adapters and ensure proper cleaning of connectors before mating. This cable is suitable for indoor use only.
