DeLOCK cable M12 CAN-Bus codificado A de 5 polos conector macho a conector hembra D-Sub 9 1 m

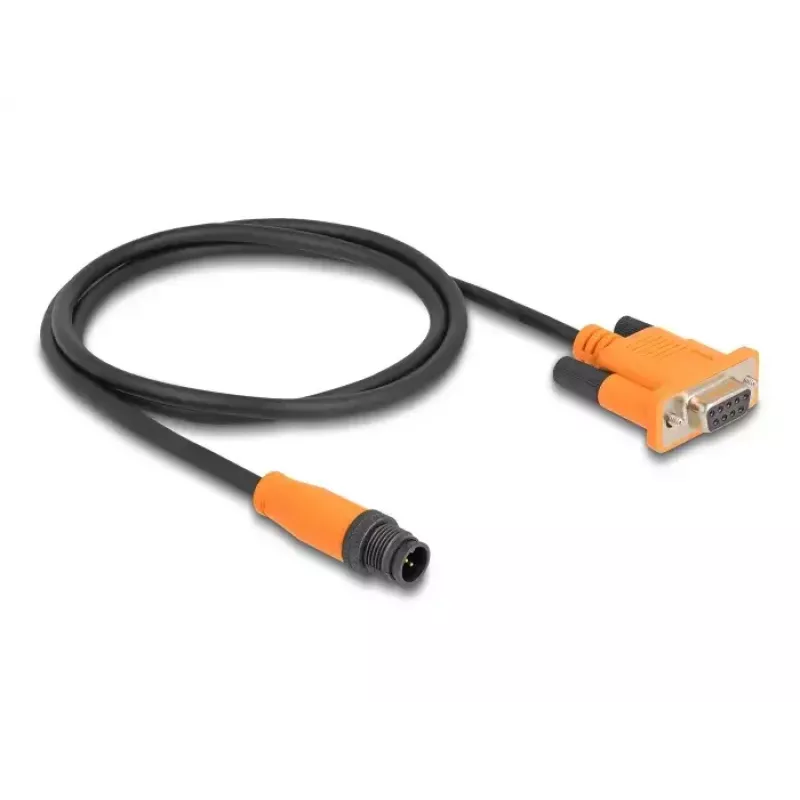

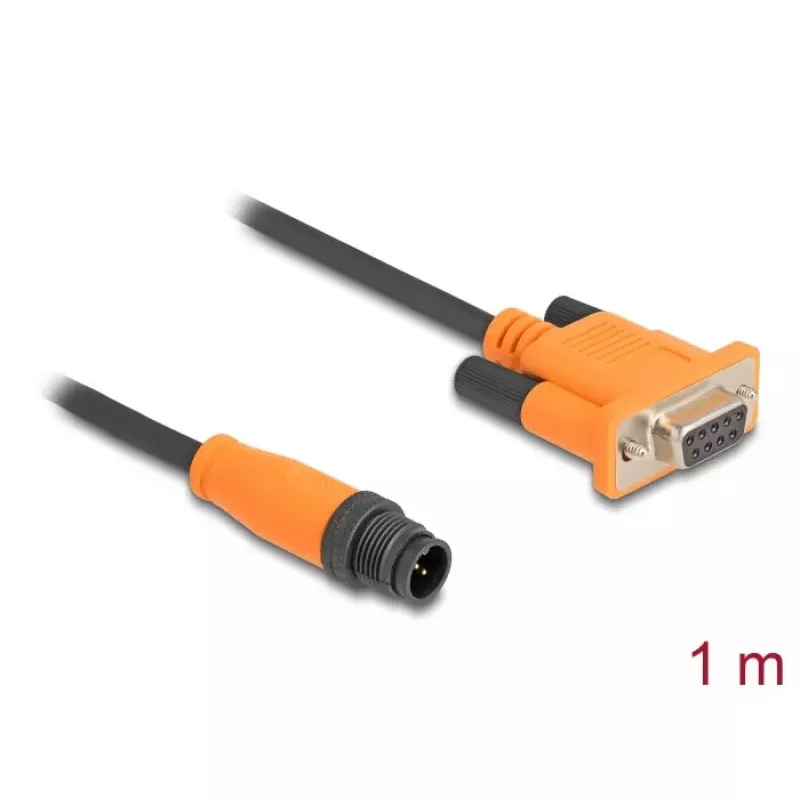

The DeLOCK M12 CAN Bus Cable A-coded 5 pin male to D-Sub 9 female (1 m) connects industrial CAN Bus devices using an A-coded 5‑pin M12 male plug to a standard D-Sub 9 female connector. Available in black or orange and supplied in a polybag, this 1 m cable is intended for reliable data transmission in CANopen machine control and NMEA 2000® marine networks as well as other CAN Bus installations.

Advantages

The cable offers a standardized A-coded M12 5‑pin interface for secure mating with industrial CAN devices and a D-Sub 9 female end for compatibility with equipment using DB9 CAN interfaces. Its 1 m length provides flexibility for short-distance connections inside control cabinets or between devices, and the available color options (black, orange) help with visual identification. The product is packaged in a polybag for simple handling and storage.

Suitable for

• CANopen machine control systems
• NMEA 2000® marine networks
• General CAN Bus device connections with DB9 interfaces
• Short-distance wiring in control cabinets and test setups

Key specifications

• Brand: DELOCK
• MPN: 66745
• EAN: 4043619667451
• Connector A: M12 A-coded 5 pin male
• Connector B: D-Sub 9 (DB9) female
• Length: 1 m
• Colors: black, orange

How to use

Connect the M12 A-coded 5‑pin male plug to the corresponding M12 socket on the CAN device and attach the D-Sub 9 female connector to the DB9 male socket of the receiving equipment. Ensure correct orientation and secure connections according to the device manufacturer’s instructions. Route the cable to avoid sharp edges and sources of electromagnetic interference for optimal signal integrity.

Recommendations

Use this cable for short CAN Bus connections up to 1 m; for longer runs select appropriately rated CAN cable and follow network termination and grounding guidelines specific to CANopen or NMEA 2000® installations.
