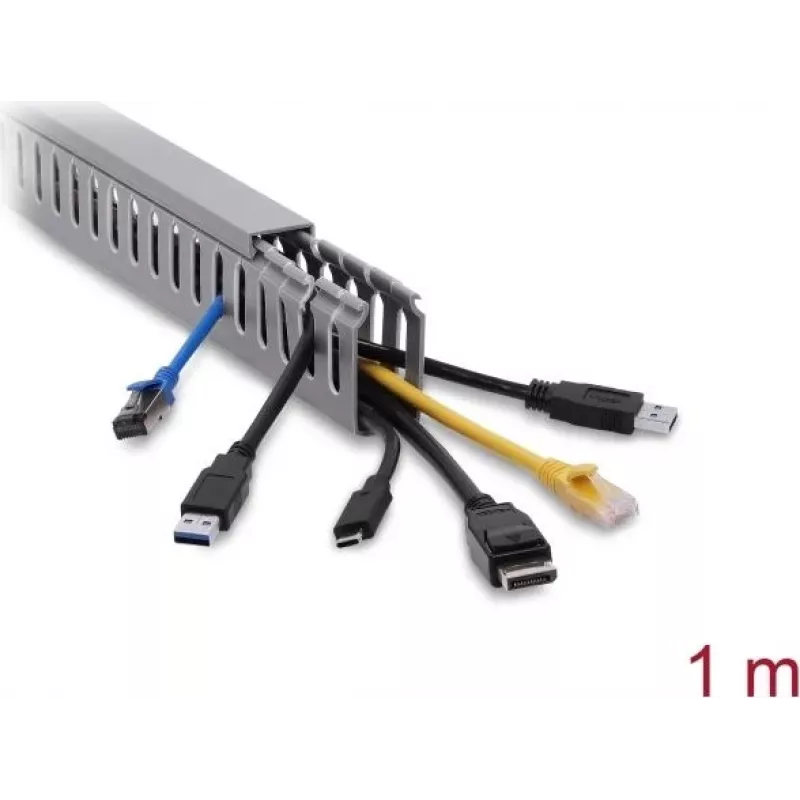

Delock canaleta para cables 25 x 50 mm, longitud 1 m, gris

Unmanaged cables in control cabinets and electrical panels create safety hazards, complicate maintenance, and look unprofessional. The Delock Wiring Duct 25 x 50 mm solves this by providing a robust, slotted channel that neatly routes and protects wires. Its snap-on cover allows quick access for changes, while the grey PVC construction blends into industrial environments.

Who is it for

Ideal for electricians, panel builders, and maintenance technicians who need a reliable cable management solution in industrial or commercial settings. Whether you're organizing a new control cabinet or retrofitting an existing installation, this duct offers the durability and ease of use required for professional results.

Main features

• Slotted side walls with 4 mm slots and 6 mm pitch for easy cable breakout at any point
• Snap-on cover for quick installation and re-entry without tools
• Made of flame-retardant PVC (UL94 V-0) for enhanced safety
• Operating temperature range from -5 °C to 60 °C, suitable for most indoor industrial environments
• RoHS and CE certified, ensuring compliance with environmental and safety standards

Specifications

• External dimensions: 25 mm width x 50 mm height
• Internal dimensions: approx. 21 mm width x 46 mm height
• Wall thickness: approx. 2 mm
• Length: 1 m
• Material: PVC
• Colour: Grey
• Mounting: Screw mounting (screws not included)
• Flammability rating: UL94 V-0

Tips

For a clean installation, pre-drill mounting holes at regular intervals and use appropriate screws for the panel material. When routing cables, leave some slack inside the duct to allow for future modifications. The snap-on cover can be cut to length with a fine-tooth saw for custom fits.
