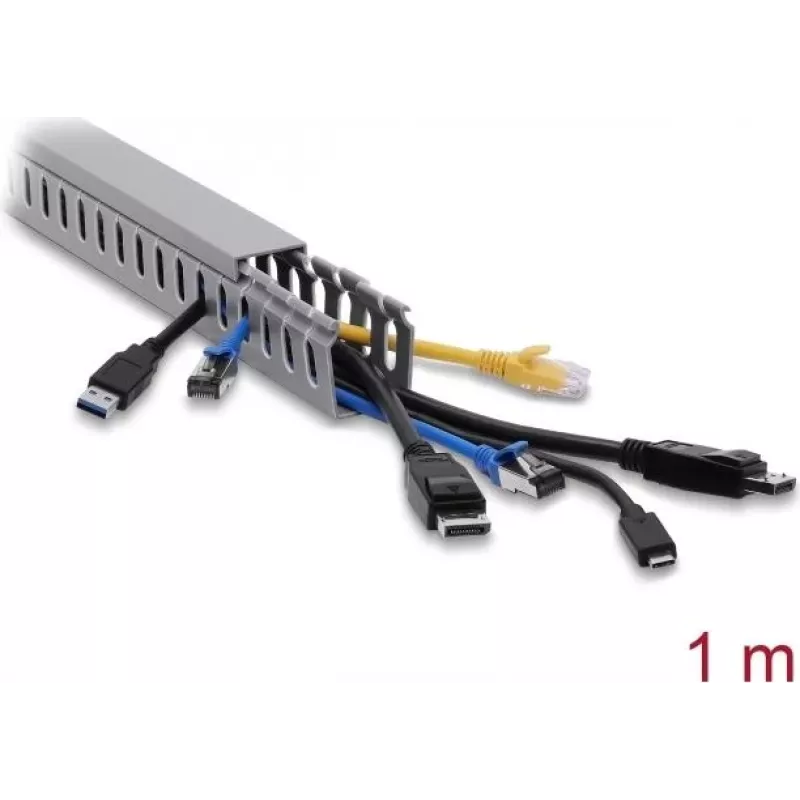

Delock canaleta para cables 30 x 40 mm - longitud 1 m gris

Unlike flimsy adhesive channels that warp or peel, the Delock 22135 wiring duct brings the rigidity of industrial cable management to your control cabinet or workstation. Its 30 x 40 mm cross-section and 1-metre length give you a clean, professional pathway for power, data, and signal cables without the bulk of oversized trunking. The grey PVC body blends into standard enclosures while offering a UL94 V-0 flammability rating for peace of mind.

Highlights

• Robust PVC construction with self-extinguishing properties (UL94 V-0)
• Slotted side walls with 4 mm slots and 6 mm bars for easy cable breakout
• Pre-punched mounting holes in the base for quick screw or rivet installation
• Snap-on lid included – no tools required for access or closure
• Good electrical insulation and resistance to common industrial chemicals

In daily use

Install the duct along a panel or inside a cabinet using the pre-punched holes. Route your cables inside, then snap the lid closed. When you need to add or remove a cable, simply pop the lid, adjust the wiring, and reseal. The slotted design allows individual cables to exit at any point without cutting, keeping the rest of the bundle tidy. The grey colour hides dust and matches most enclosures, while the PVC material stays stable from -5 °C to 60 °C.

Full specifications

• Brand: Delock
• Model: 22135
• MPN: 22135
• EAN: 4043619221356
• Product type: Wiring duct / cable trunking
• Material: Polyvinyl chloride (PVC)
• Colour: Grey (RAL 7030)
• Length: 1 m
• Width: 30 mm
• Height: 40 mm
• Slot type: Slotted
• Slot width: 4 mm
• Bar width: 6 mm
• Temperature range: -5 °C to 60 °C
• Flammability rating: UL94 V-0
• Mounting type: Pre-punched holes in base
• Lid included: Yes
• Insulation properties: Good electrical insulation
• Self-extinguishing: Yes
• Certifications: RoHS, CE
• Application area: Electrical installations, control cabinets, industrial environments

Final note

For a reliable, code-compliant cable management solution that doesn't sacrifice accessibility, the Delock 22135 is a solid choice. Its combination of flame-retardant PVC, slotted design, and included lid makes it a practical addition to any professional installation.
