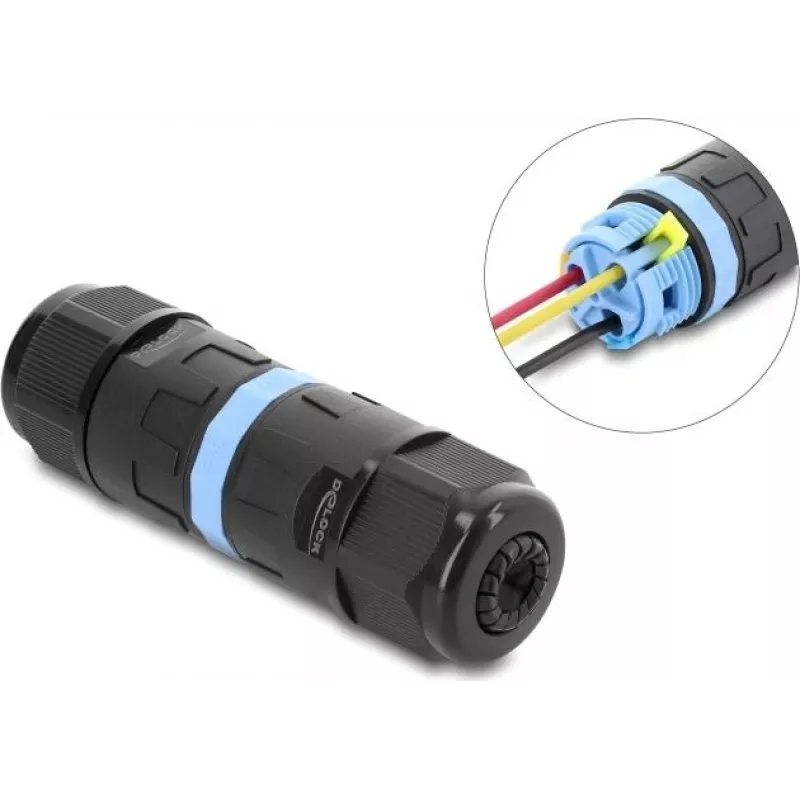

Delock Conector de cable en línea de 3 pines, IP68 impermeable, conexión por abrazadera, sin herramientas, para diámetro de cable 5-9 mm, incl. juntas para 9-12 mm, negro (87243)

The Delock 87243 Inline Cable Connector is a robust and waterproof solution for connecting 3-pin cables in demanding environments. Designed for tool-free installation, this connector features a clamp connection (screwless) that ensures a secure and reliable electrical connection without the need for additional tools. With an IP68 protection rating, it is fully dustproof and waterproof, making it ideal for outdoor, industrial, and wet environments. The connector accommodates cable diameters from 5 to 9 mm, and includes additional seals to extend the range to 9-12 mm. Its compact black housing is made from durable PA66 (Polyamide 66), and the contacts are copper for excellent conductivity. Rated for 450 V and 24 A, it supports wire gauges from 0.5 to 2.5 mm² and operates in temperatures from -40 °C to 100 °C. Certified CE and RoHS.

Advantages

Tool-free clamp connection for quick and easy installation. IP68 waterproof and dustproof for reliable performance in harsh conditions. Includes seals for two cable diameter ranges (5-9 mm and 9-12 mm). Durable PA66 housing and copper contacts ensure long-lasting connectivity. High voltage and current ratings (450 V / 24 A) suitable for various applications.

Suitable for

• Outdoor lighting and garden installations
• Industrial automation and control systems
• Marine and automotive applications
• Wet environments such as bathrooms or kitchens
• Any application requiring a waterproof 3-pin connection

Key specifications

• Connector Type: Inline Cable Connector
• Number of Pins: 3
• Protection Rating: IP68
• Connection Method: Clamp connection (screwless)
• Cable Diameter Range: 5 - 9 mm (standard), 9 - 12 mm (with included seals)
• Installation: Tool-free
• Color: Black
• Housing Material: PA66 (Polyamide 66)
• Contact Material: Copper
• Rated Voltage: 450 V
• Rated Current: 24 A
• Wire Gauge: 0.5 - 2.5 mm²
• Operating Temperature: -40 °C to 100 °C
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure that the cable diameter is within the specified range and that the seals are properly fitted. This connector is not suitable for data or signal cables; use only for power connections.
