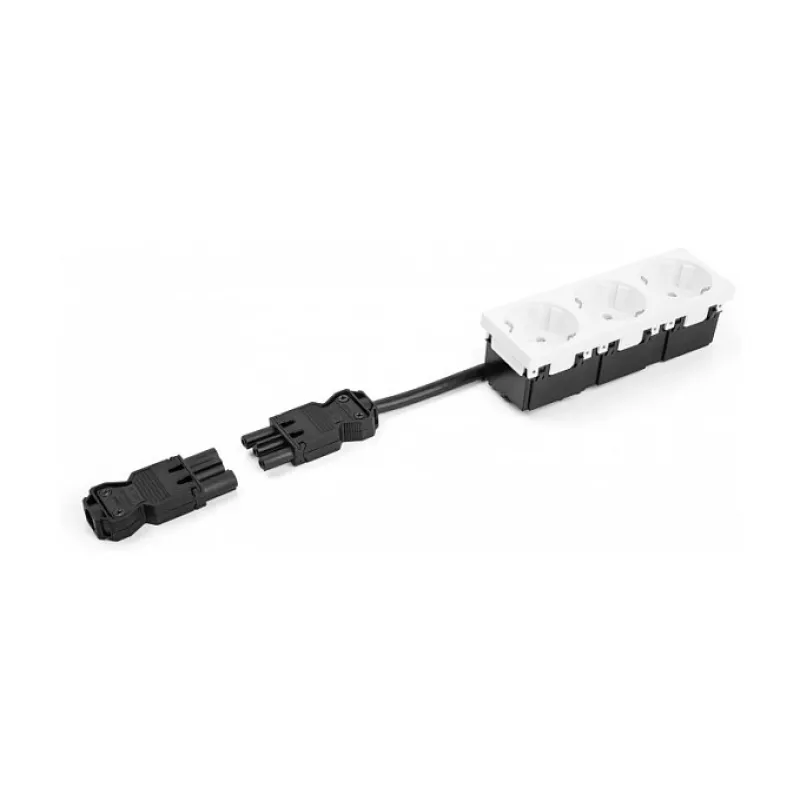

DeLOCK Conector de instalación regleta de tornillos de 3 polos negro 1 set

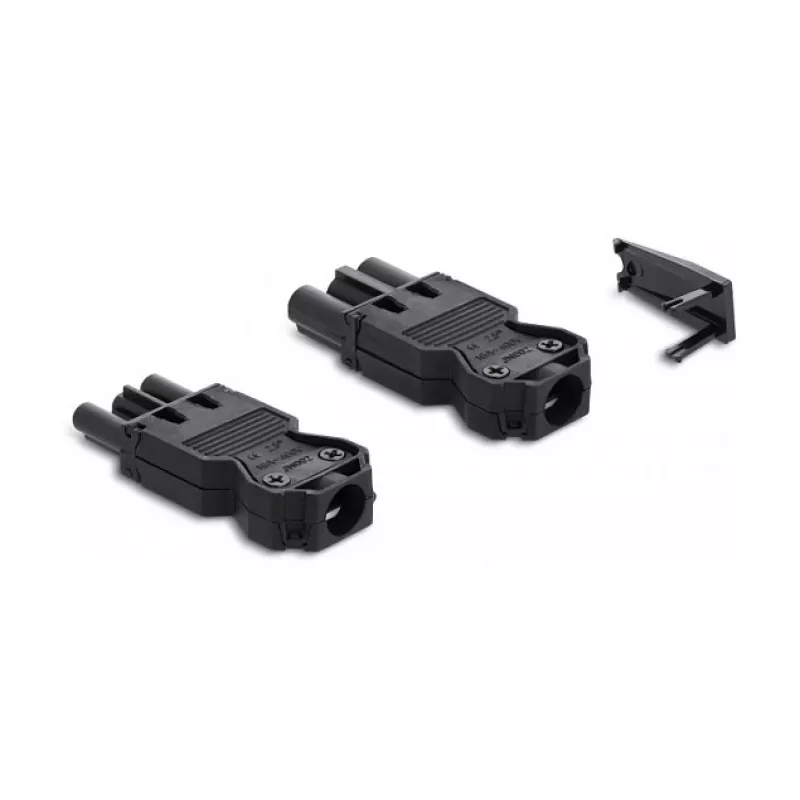

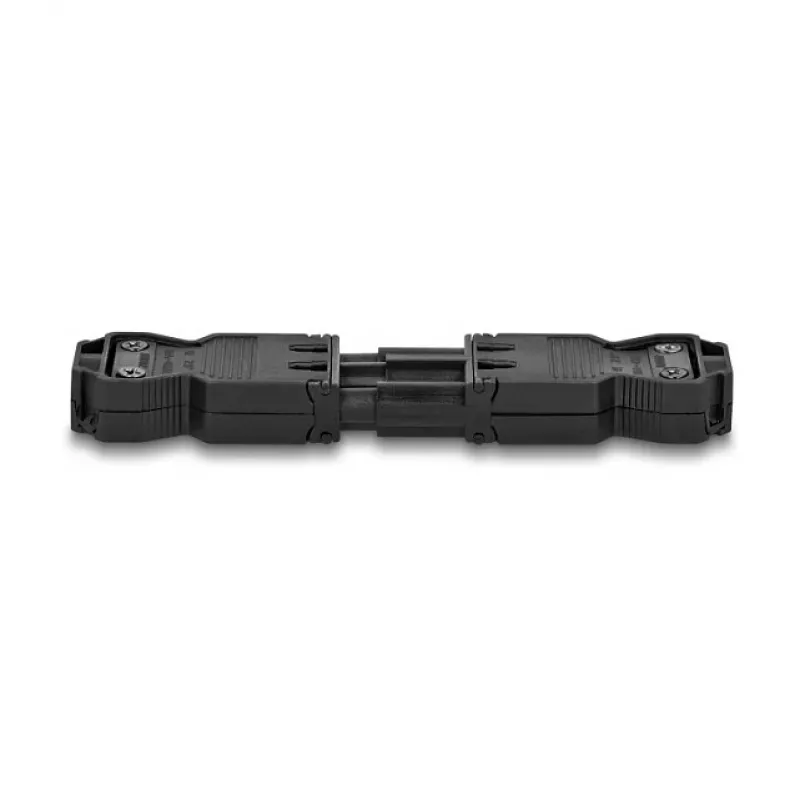

The DeLOCK Installation Connector 3-pole screw terminal set includes a plug and a socket designed for safe, reliable connection of two cables. The connector is contact-protected and comes with an integrated locking slide to prevent unintended disconnection. Internal screw terminals are clearly marked P, N and L for correct wiring. The housing is black and compact, suitable for standard installation tasks.

Advantages

The 3-pole screw terminal design provides a stable electrical connection while the contact protection reduces the risk of accidental contact. The locking slide secures the plug and socket against unintentional separation. Marked screw terminals (P, N, L) simplify identification during installation and maintenance. The black housing offers a neutral appearance for varied installation environments.

Suitable for (tasks / use cases)

• Connecting two electrical cables in fixed installations
• Quick wiring in junction boxes and distribution points
• Temporary or semi-permanent connections requiring mechanical locking

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 64147
• EAN: 4043619641475
• Type: 3-pole screw terminal connector (plug and socket set)

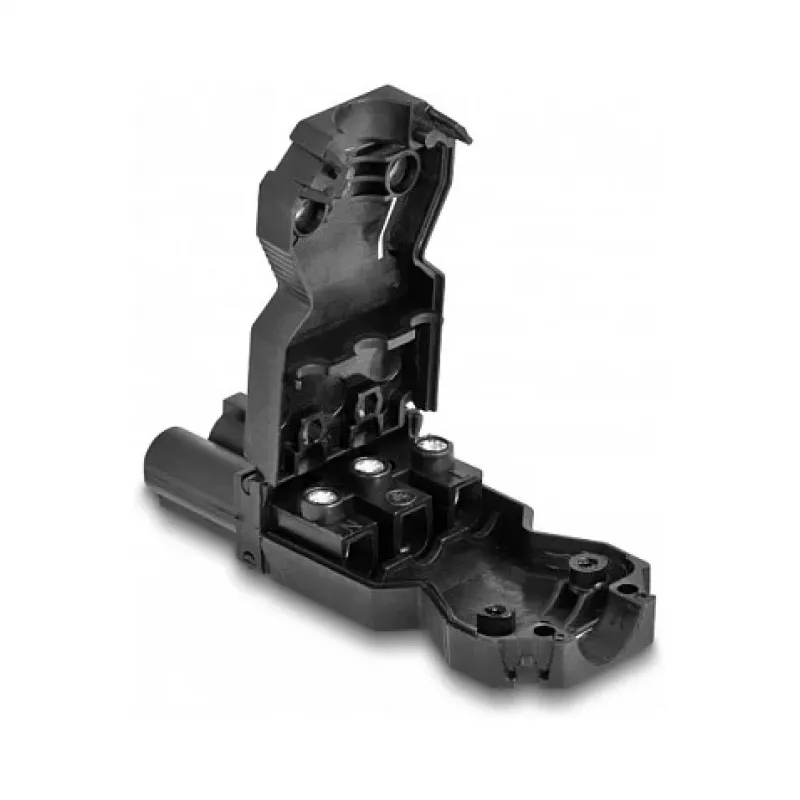

• Markings: P, N, L on internal screw terminals
• Colour: Black
• Dimensions (approx.): 70 mm (W) x 29 mm (D) x 13 mm (H)

How to use

Prepare and strip the cable ends to the recommended length for the screw terminals. Insert each conductor into the corresponding terminal marked P, N or L and tighten the screws firmly to secure the conductor. Connect the plug and socket together and slide the locking mechanism into place to prevent accidental separation. Verify the electrical connection and insulation before powering the circuit.

Recommendations

Use this connector for fixed or semi-permanent electrical connections in accordance with local electrical codes. Ensure that conductor cross-sections are compatible with the screw terminals and that all connections are tightened to appropriate torque values. Avoid use in exposed outdoor locations unless additional protection against moisture is provided.
