DeLOCK D-Sub 15 conector hembra a RJ45 conector hembra kit de montaje rojo VGA RJ-45

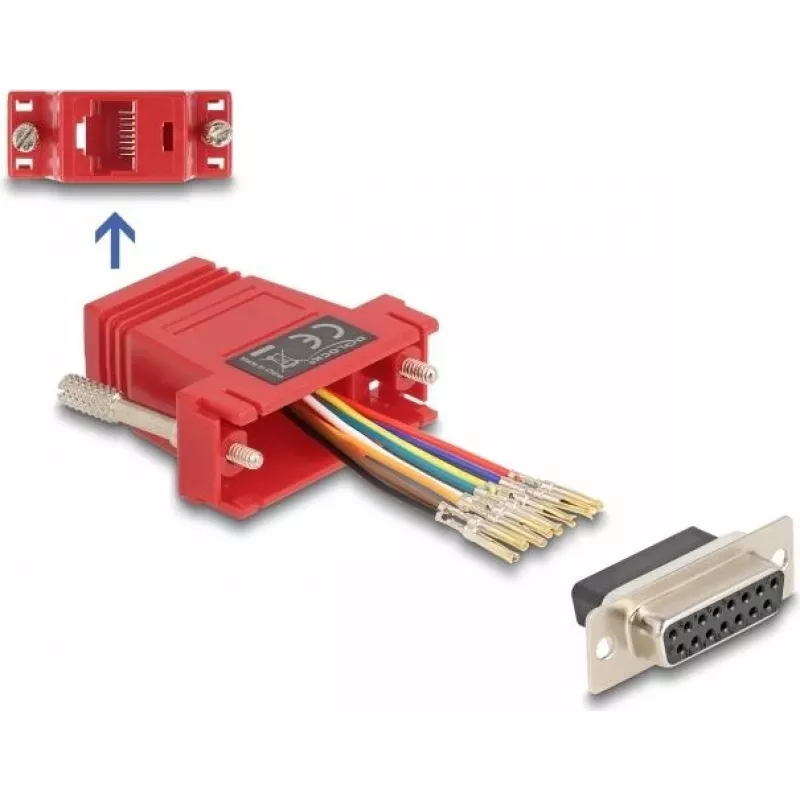

This Delock adapter converts a D-Sub 15 pin female (VGA) connection to an RJ45 female jack, enabling a serial-style interface to be extended over an optional Cat.5 / 5e / 6 cable. The compact assembly kit in red offers user-definable pin assignment by inserting the cable conductors into the desired connector holes and securing them in the housing. Dimensions are 23 mm (W) x 40 mm (D) x 16 mm (H); product is made in China and supplied in a polybag.

Advantages

The assembly kit allows flexible pin mapping for custom serial or VGA wiring over standard network cable and provides a small, easy-to-install solution for adapting a D-Sub 15 female to an RJ45 female connector. Its compact size and simple locking mechanism enable straightforward cable insertion and retention.

Suitable for

• Extending VGA or serial-style signals over Cat.5 / 5e / 6 cable
• Custom pin assignments and one-off wiring solutions
• Embedded or compact installations where space is limited

Key specifications

• Brand: DELOCK
• Model / MPN: 67112
• EAN: 4043619671120
• Connector A: D-Sub 15 pin female (VGA host)
• Connector B: RJ45 female (assembly type)
• Dimensions: 23 x 40 x 16 mm (W x D x H)
• Colour: Red
• Packaging: Polybag
• Made in: China

How to use

Prepare a Cat.5 / 5e / 6 cable by stripping the outer jacket and separating the conductors. Insert each conductor into the chosen hole of the RJ45 assembly according to your desired pinout and push until it locks into the housing. Connect the D-Sub 15 female side to the VGA host interface. Verify continuity and correct pin assignments before powering connected equipment.

Recommendations

Use shielded or unshielded Cat.5 / 5e / 6 cable appropriate for your signal type and length; limit cable runs and check pinout compatibility with the devices you connect. Test the assembled connection with a multimeter or continuity tester to ensure correct wiring before use.
