DELOCK D-Sub 15 polos conector macho a conector hembra RJ12 set de montaje, amarillo

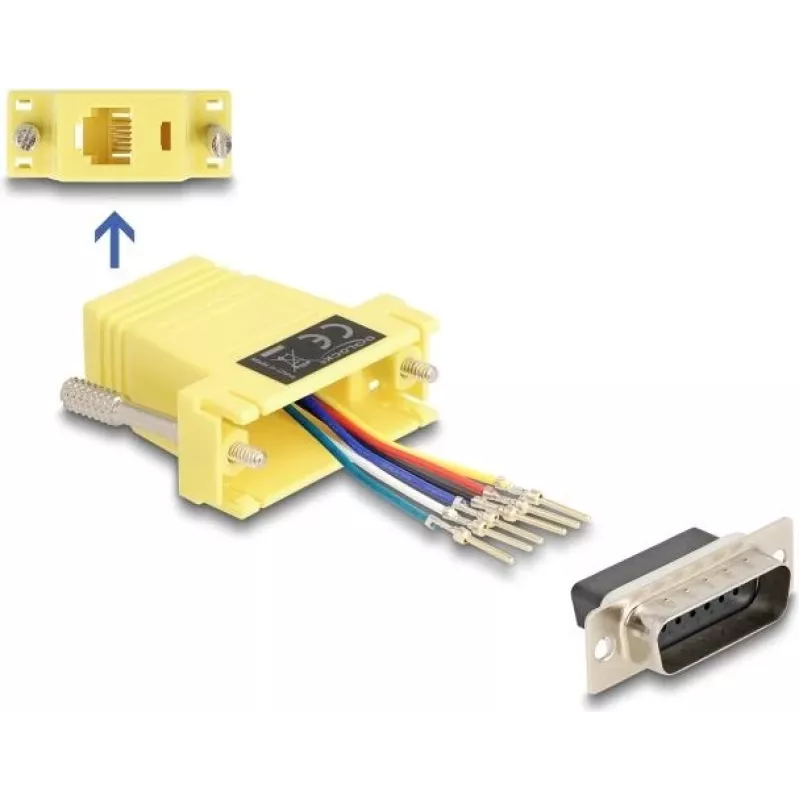

Assembly kit for a DELOCK D-Sub 15 pin male to RJ12 female connector in yellow, designed for custom cable termination and panel or device connections. This adapter allows a 15-pin D-Sub male interface to be connected to RJ12 telecommunication or control wiring. Contacts can be assigned individually within the D-Sub housing and the RJ12 socket snaps into place to provide reliable contact for ISDN, telephone or control signal lines.

Advantages

The kit provides a compact solution for adapting VGA-style D-Sub 15 connectors to RJ12 cabling without the need for pre-assembled cables. Individual assignment of the D-Sub contacts allows flexible wiring schemes to match specific pinouts. The snap-in RJ12 socket ensures a stable mechanical and electrical connection once inserted into the housing. Its yellow housing improves visual identification in mixed cabling environments.

Suitable for

• Adapting a D-Sub 15 interface to RJ12 telephone or ISDN lines
• Custom cable assemblies where specific pin assignments are required
• Panel or device connections that require a compact RJ12 socket
• Field termination and repair of control or signal cabling

Key specifications

• Connector type: D-Sub 15 pin (male) to RJ12 (female)
• Colour: yellow
• Housing: assembly kit for custom termination and panel mounting
• Contact assignment: individual/customisable pin wiring within D-Sub housing
• Application: telecommunication, ISDN, telephone, control and signal wiring

How to use

Prepare the cable conductors according to the required pin assignment, insert and secure the contacts into the D-Sub 15 housing according to the chosen wiring scheme. Place the RJ12 female socket into the designated opening in the housing until it clicks into place, ensuring reliable contact. After assembly, verify continuity and correct pin mapping with a multimeter before final installation in a panel or device.

Recommendations

Use appropriate wire stripping and crimping tools to avoid damage to contacts. Verify pinouts for both the D-Sub 15 and the RJ12 termination prior to assembly to ensure compatibility with connected equipment. For installations exposed to mechanical strain, provide strain relief and secure mounting of the housing.
