DeLOCK D-Sub de 25 polos macho a RJ12 hembra kit de montaje amarillo

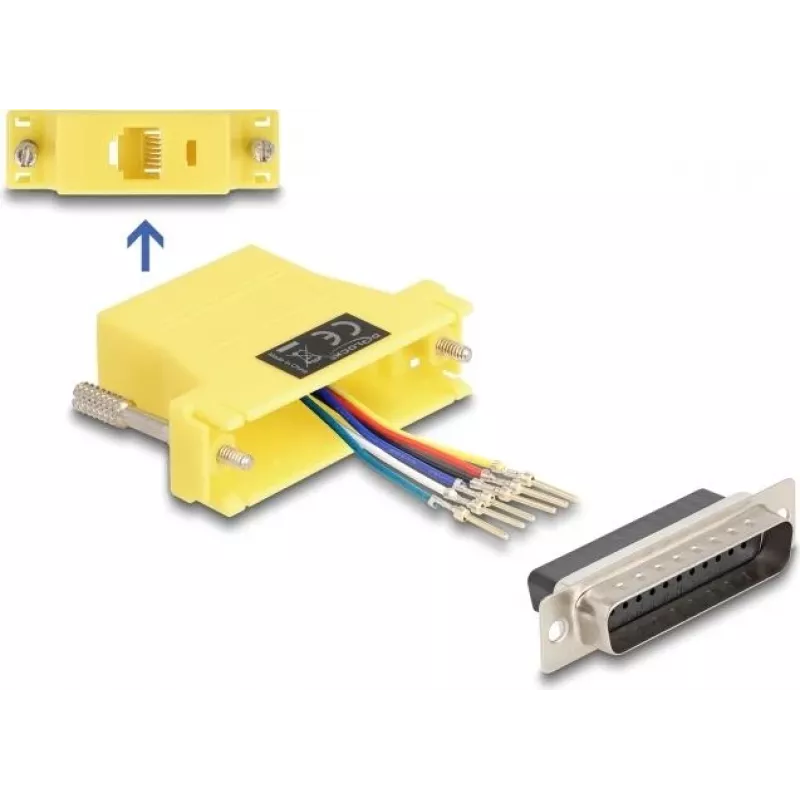

This DeLOCK assembly kit converts a D-Sub 25 pin male interface to an RJ12 female connection and is supplied in yellow. The kit allows flexible assignment of the D-Sub 25 contacts and is intended for use with ISDN, telephone or RJ12 cables to extend or adapt serial D-Sub 25 interfaces.

Advantages

The contacts of the adapter can be inserted into the D-Sub 25 housing according to individual requirements. Sockets snap into place with a slight click to ensure reliable contact. The kit provides a compact solution for adapting a D-Sub 25 interface to common telephony wiring using an RJ12 female connector.

Suitable for

• Extending or adapting serial D-Sub 25 interfaces
• Connecting devices to ISDN or telephone wiring
• Custom cabling projects requiring RJ12 terminations

Key specifications

• Brand: DELOCK
• Model / MPN: 67096
• EAN: 4043619670963
• Connector A: D-Sub 25 pin (male) assembly
• Connector B: RJ12 (female)
• Colour: Yellow

How to use

Assemble the D-Sub 25 connector by inserting the desired contacts into the D-Sub housing according to the required pin assignment. Secure the contacts until they click into place. Attach an RJ12 cable to the RJ12 female connector. Verify continuity and correct pin mapping before putting the connection into service.

Recommendations

Use suitable tools for inserting and securing contacts to avoid damage. Check the pin assignment and cable type (ISDN/telephone/RJ12) before connecting equipment to prevent mismatches or signal issues.
