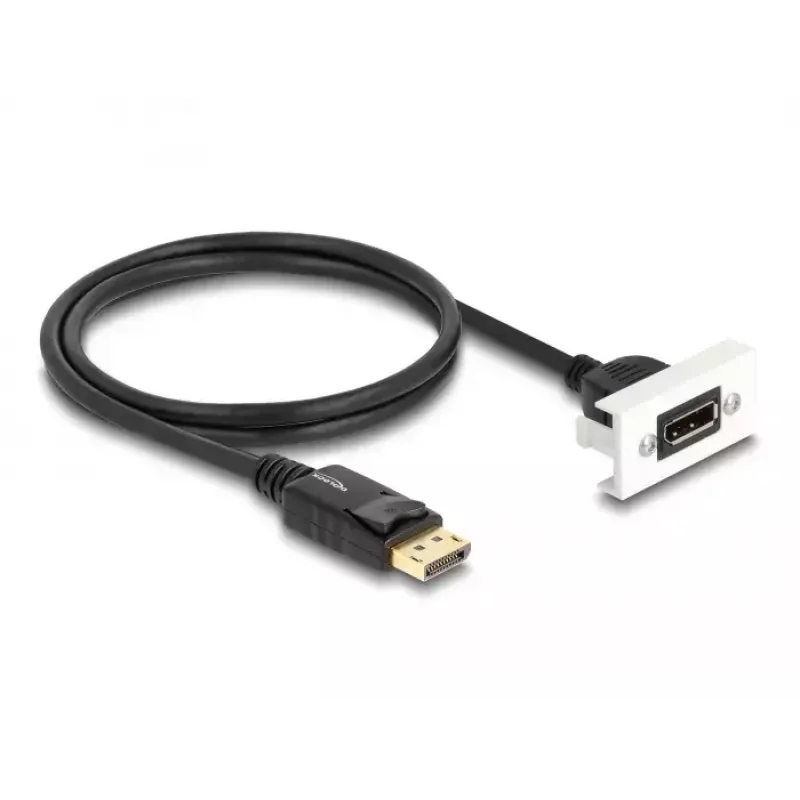

DeLOCK Easy 45 módulo DisplayPort 8K 30 Hz con pigtail 22,5 x 45 mm

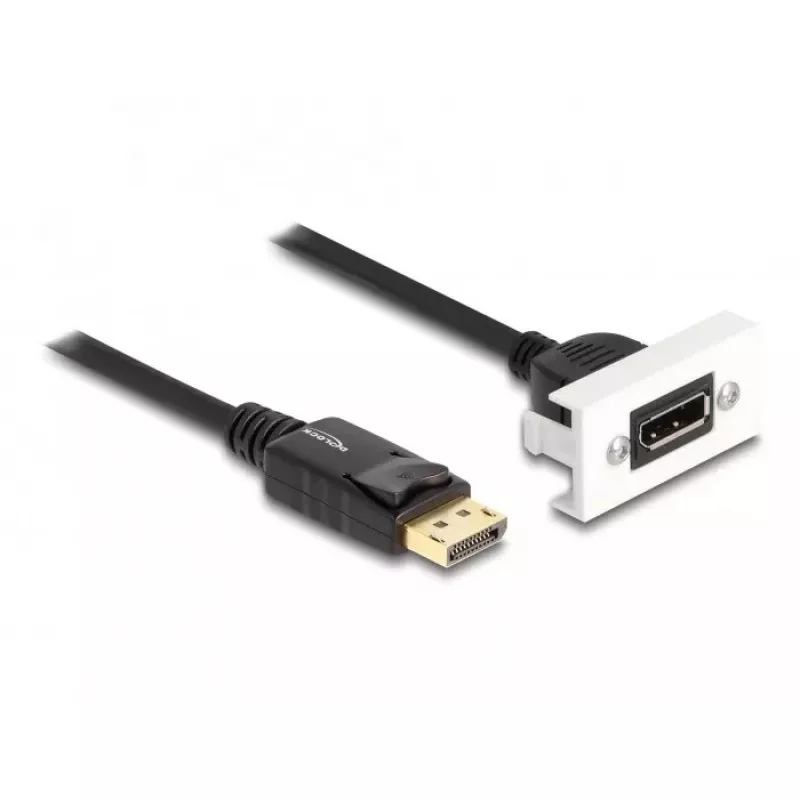

The DeLOCK Easy 45 DisplayPort 8K 30 Hz Module (22.5 x 45 mm) provides a DisplayPort female interface in a compact Easy 45 modular housing. It includes a 1 m pigtail cable with DisplayPort connections and a snap-in mechanism that secures the cover while allowing toolless replacement when required. The module supports high-resolution displays and fits standard Easy 45 holders and cable ducts for flexible installation.

Advantages

The module offers a standardized Easy 45 form factor for compatibility with various module holders and cable ducts, a secure snap-in cover for quick installation and maintenance, and an integrated 1 m pigtail for convenient connection to internal cabling. Available in black and white to match different installations.

Suitable for

• Connecting high-resolution monitors and displays (DisplayPort)
• Integration into AV racks, wall outlets or cable ducts using Easy 45 holders
• System installations requiring a compact DisplayPort female interface

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 81387
• EAN: 4043619813872
• Module size: 22.5 x 45 mm
• Connector type: DisplayPort female (module) with DisplayPort pigtail
• Cable length: 1 m pigtail
• Supported resolution: up to 8K at 30 Hz (DisplayPort)
• Colours: Black, White

How to use

Insert the module into a compatible Easy 45 module holder or cable duct until the snap-in mechanism engages. Route the 1 m pigtail to the internal connection point and plug the DisplayPort connectors to the corresponding devices or cabling. To replace the cover or remove the module, depress the snap-in latch and pull the module out; no tools are required.

Recommendations

For optimal performance, use DisplayPort-certified cables and ensure source and display devices support 8K at 30 Hz. Avoid sharp bends in the pigtail and secure internal cabling to prevent strain on the connectors.
